AVENSIS_OM_OM20C20E_(EE).book Page 590 Thursday, January 29, 2015 1:47 PM

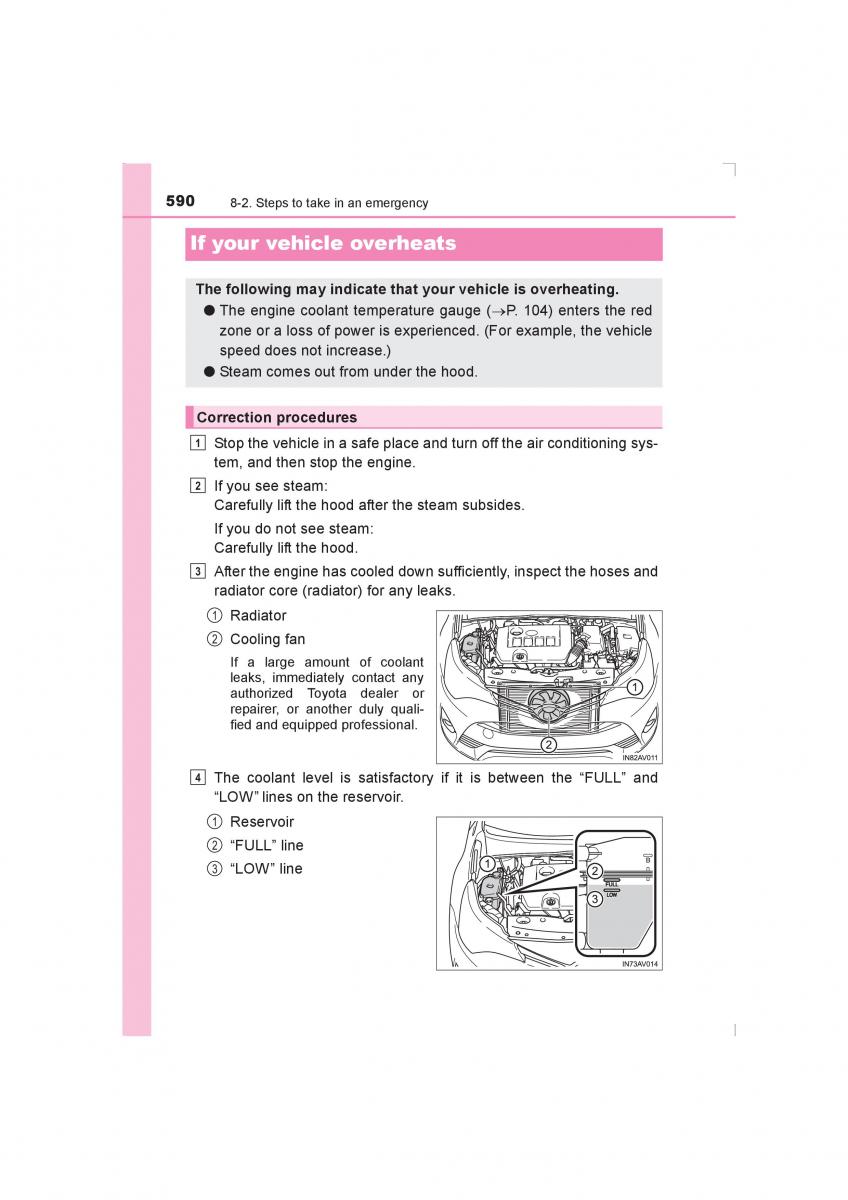

590 8-2. Steps to take in an emergency
If your vehicle overheats
The following may indicate that your vehicle is overheating.
●The engine coolant temperature gauge (→P. 104) enters the red
zone or a loss of power is experienced. (For example, the vehicle
speed does not increase.)
●Steam comes out from under the hood.
Correction procedures
1 Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
2 If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
3 After the engine has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks.
1 Radiator
2 Cooling fan
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
4 The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
1 Reservoir
2 “FULL” line
3 “LOW” line
AVENSIS_OM_OM20C20E_(EE)
