owners manual Seat Ateca

all ratings: 0 average rating: 5

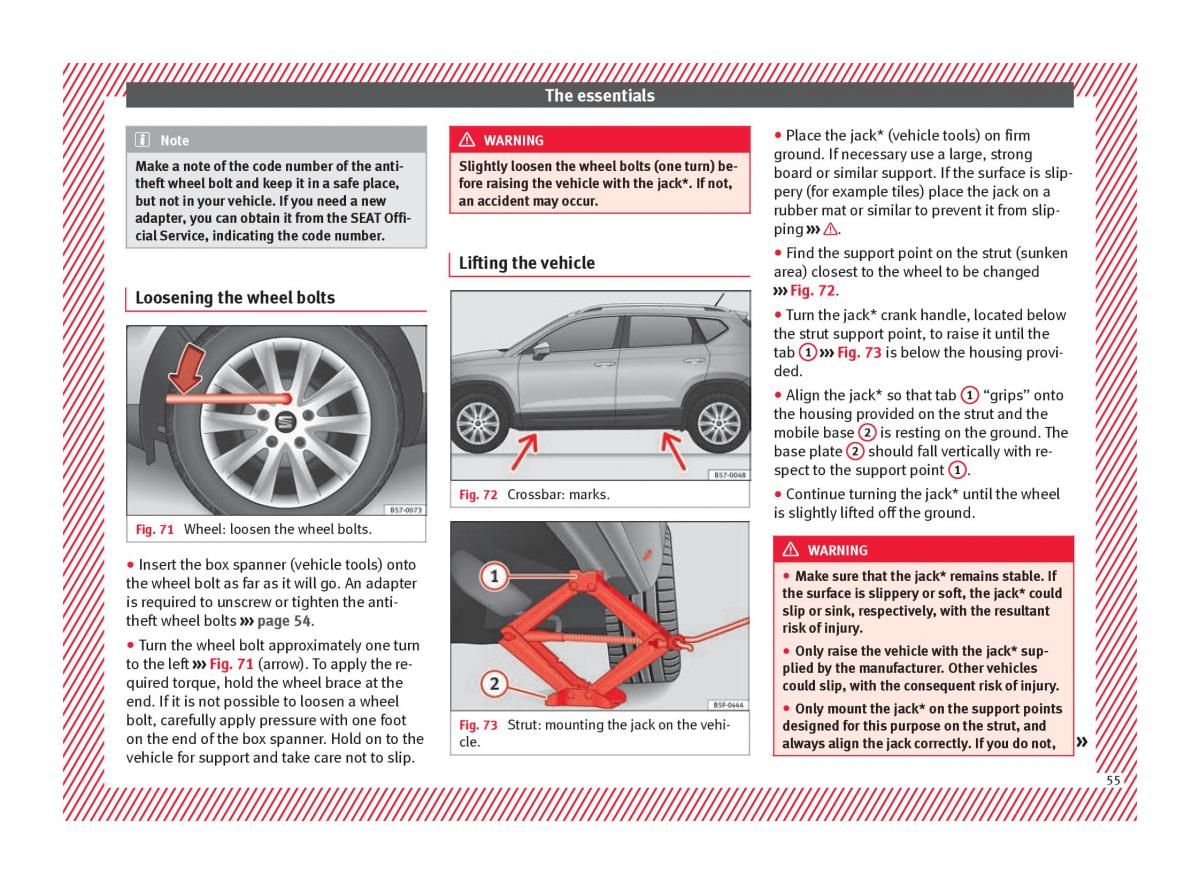

The essentials ●Place the jack* (vehicle tools) on firm Note WARNING ground. If necessary use a large, strong Make a note of the code number of the anti-Slightly loosen the wheel bolts (one turn) be- board or similar support. If the surface is slip- theft wheel bolt and keep it in a safe place,fore raising the vehicle with the jack*. If not, pery (for example tiles) place the jack on a but not in your vehicle. If you need a newan accident may occur. rubber mat or similar to prevent it from slip- adapter, you can obtain it from the SEAT Offi- ping ››› . cial Service, indicating the code number. ●Find the support point on the strut (sunken Lifting the vehicle area) closest to the wheel to be changed ››› Fig. 72. Loosening the wheel bolts ●Turn the jack* crank handle, located below the strut support point, to raise it until the tab 1 ›› Fig. 73 is below the housing provi- › ded. ●Align the jack* so that tab 1 “grips” onto s the hou ing provided on the strut and the mobile base 2 is resting on the ground. The ase plate 2 b should fall vertically with re- spect to the support point 1 . Fig. 72 Crossbar: marks. ●Continue turning the jack* until the wheel s i slightly lifted off the ground. Fig. 71 Wheel: loosen the wheel bolts. WARNING ●Insert the box spanner (vehicle tools) onto ● Make sure that the jack* remains stable. If the wheel bolt as far as it will go. An adapter the surface is slippery or soft, the jack* could is required to unscrew or tighten the anti- slip or sink, respectively, with the resultant theft wheel bolts ››› page 54. risk of injury. ●Turn the wheel bolt approximately one turn ● Only raise the vehicle with the jack* sup- ››› to the left Fig. 71 (arrow). To apply the re- plied by the manufacturer. Other vehicles quired torque, hold the wheel brace at the could slip, with the consequent risk of injury. end. If it is not possible to loosen a wheel ● Only mount the jack* on the support points bolt, carefully apply pressure with one foot Fig. 73 Strut: mounting the jack on the vehi-designed for this purpose on the strut, and on the end of the box spanner. Hold on to the cle. always align the jack correctly. If you do not,» vehicle for support and take care not to slip. 55
