owners manual KIA Carens

owners manual KIA Carens - year of production: 2013 - KIA Carens III 3 owners manual EN

Document: pdf (58.21 MB) 1480 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle KIA Carens, year of production 2013:

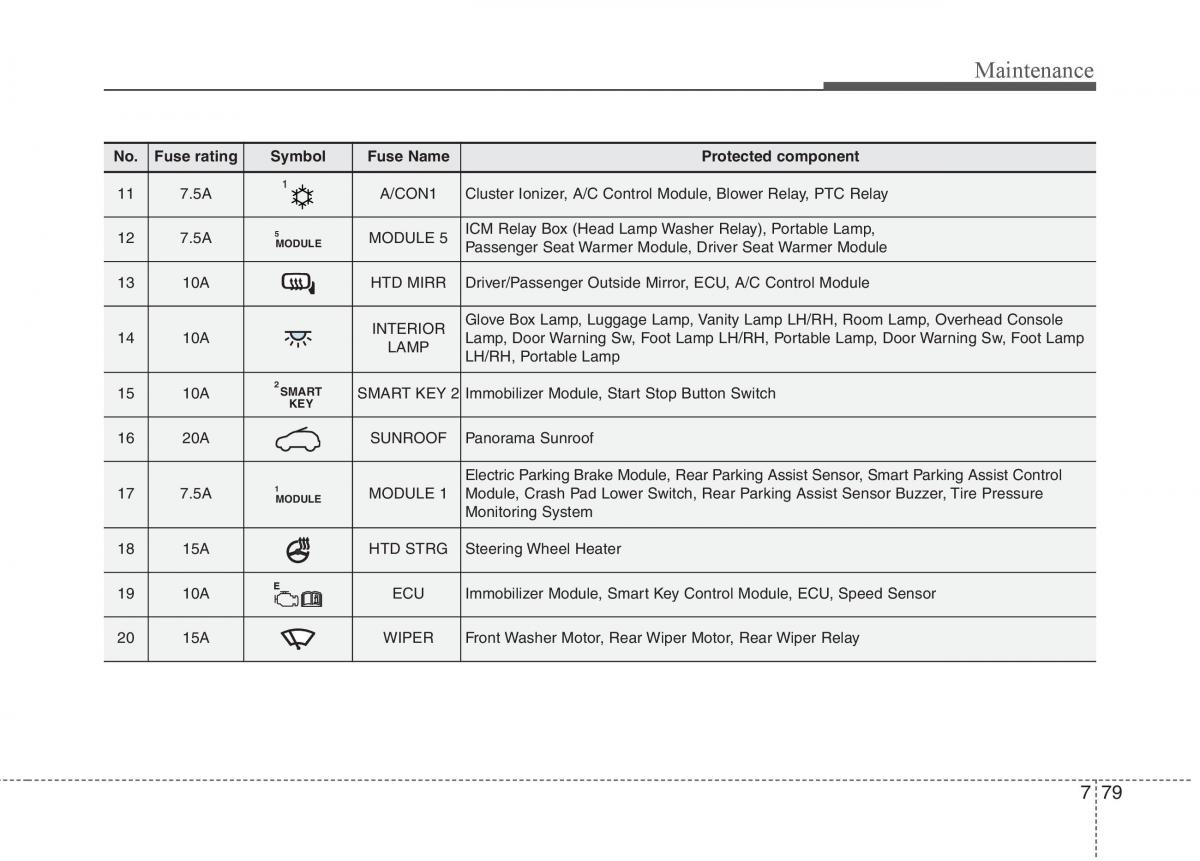

Maintenance No. Fuse rating Symbol Fuse Name Protected component 11 7.5A A/CON1 Cluster Ionizer, A/C Control Module, Blower Relay, PTC Relay 12 7.5A 5 MODULE 5 ICM Relay Box (Head Lamp Washer Relay), Portable Lamp, MODULE Passenger Seat Warmer Module, Driver Seat Warmer Module 13 10A HTD MIRR Driver/Passenger Outside Mirror, ECU, A/C Control Module INTERIOR Glove Box Lamp, Luggage Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console 14 10A LAMP Lamp, Door Warning Sw, Foot Lamp LH/RH, Portable Lamp, Door Warning Sw, Foot Lamp LH/RH, Portable Lamp 15 10A 2SMART SMART KEY 2Immobilizer Module, Start Stop Button Switch KEY 16 20A SUNROOF Panorama Sunroof Electric Parking Brake Module, Rear Parking Assist Sensor, Smart Parking Assist Control 17 7.5A 1 MODULE 1 Module, Crash Pad Lower Switch, Rear Parking Assist Sensor Buzzer, Tire Pressure MODULE Monitoring System 18 15A HTD STRG Steering Wheel Heater 19 10A ECU Immobilizer Module, Smart Key Control Module, ECU, Speed Sensor 20 15A WIPER Front Washer Motor, Rear Wiper Motor, Rear Wiper Relay 779
