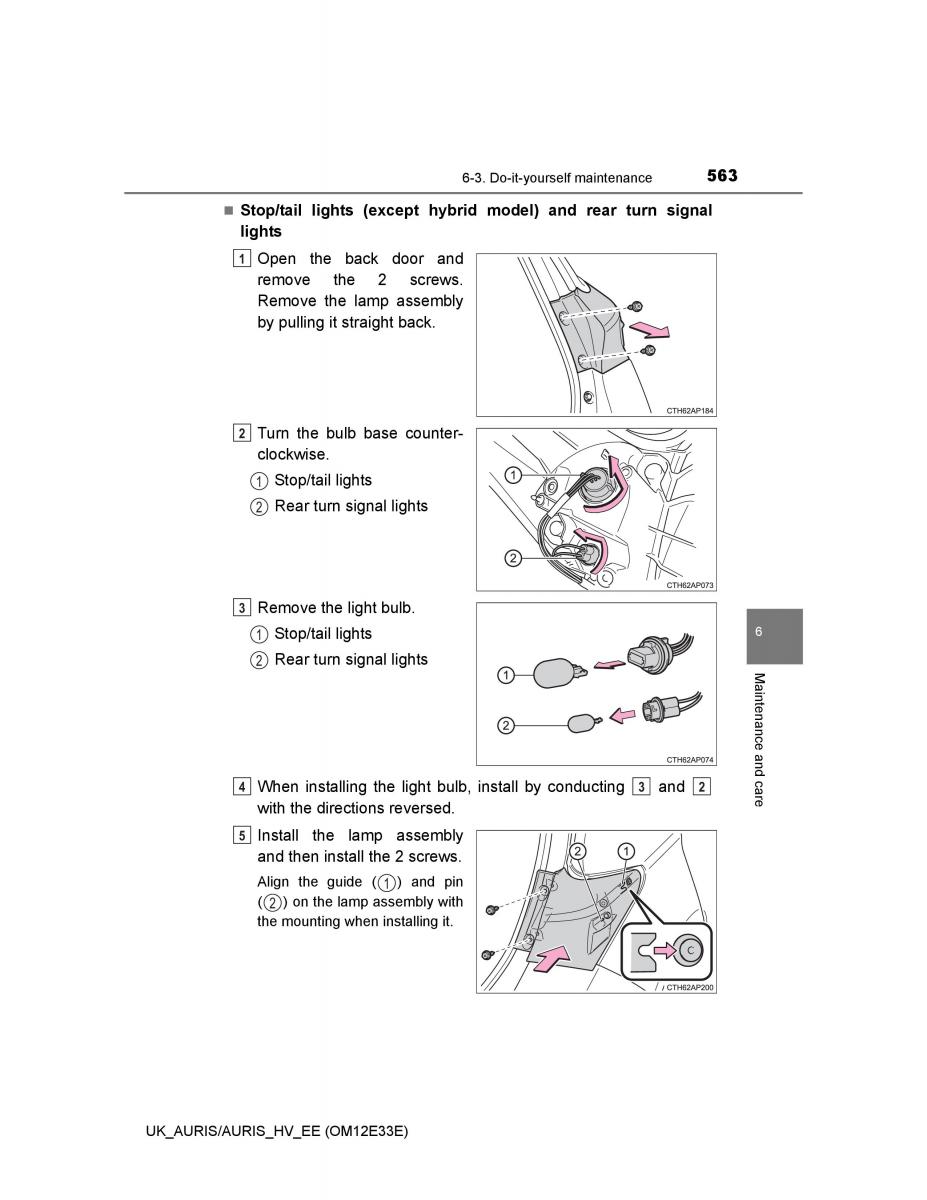

6-3. Do-it-yourself maintenance563
Stop/tail lights (except hybrid model) and rear turn signal
lights
1 Open the back door and
remove the 2 screws.
Remove the lamp assembly
by pulling it straight back.
2 Turn the bulb base counter-
clockwise.
1 Stop/tail lights
2 Rear turn signal lights
3 Remove the light bulb.
1 Stop/tail lights 6
2 Rear turn signal lights Ma
intena
nce and
4 3 2 care
When installing the light bulb, install by conducting and
with the directions reversed.
5 Install the lamp assembly
and then install the 2 screws.
Align the guide ( ) and pin
1
( 2 ) on the lamp assembly with
the mounting when installing it.
UK_AURIS/AURIS_HV_EE (OM12E33E)
