text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

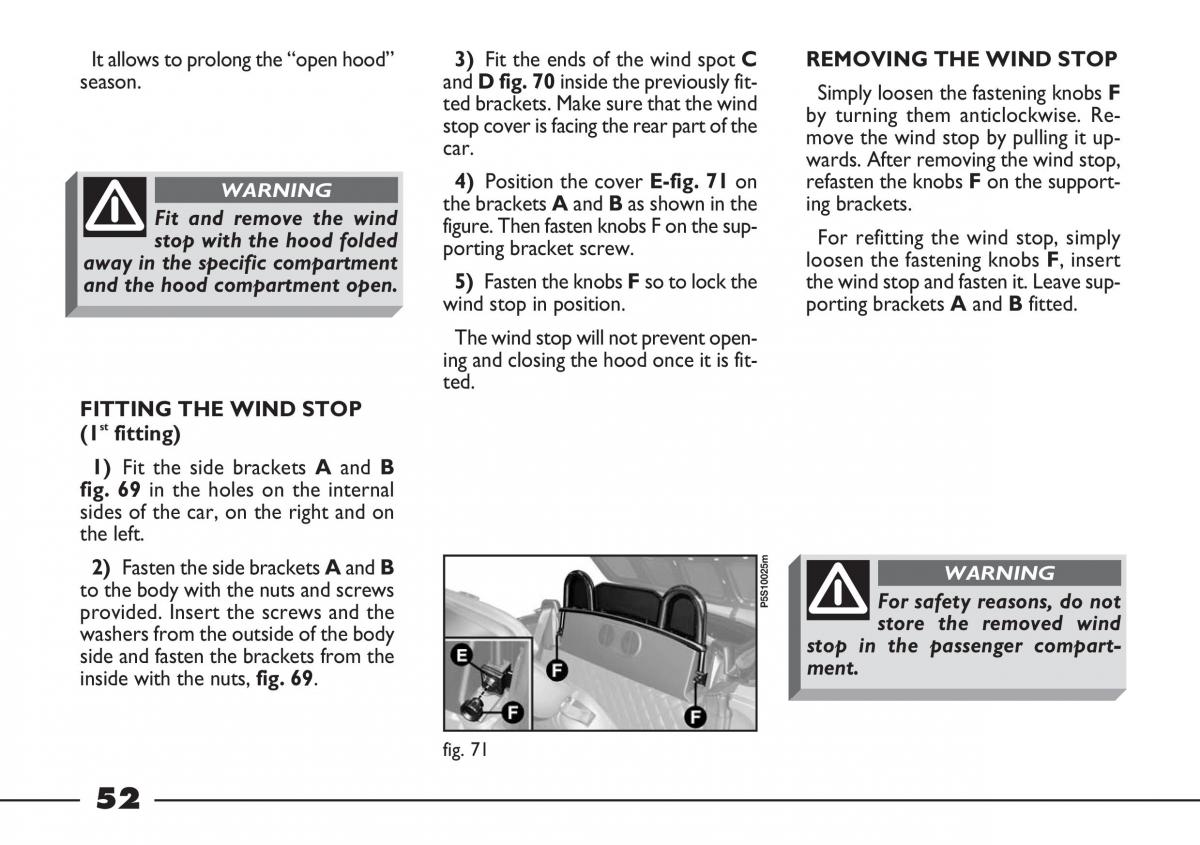

It allows to prolong the “open hood” 3) Fit the ends of the wind spot C REMOVING THE WIND STOP season. and Dfig. 70 inside the previously fit- Simply loosen the fastening knobs F ted brackets. Make sure that the wind by turning them anticlockwise. Re- stop cover is facing the rear part of the move the wind stop by pulling it up- car. wards. After removing the wind stop, WARNING 4) Position the coverE-fig. 71 on refasten the knobs Fon the support- the brackets Aand Bas shown in the ing brackets. Fit and remove the wind figure. Then fasten knobs F on the sup- For refitting the wind stop, simply stop with the hood folded away in the specific compartment porting bracket screw. loosen the fastening knobs F, insert and the hood compartment open. 5) Fasten the knobs Fso to lock the the wind stop and fasten it. Leave sup- wind stop in position. porting brackets A and B fitted. The wind stop will not prevent open- ing and closing the hood once it is fit- ted. FITTING THE WIND STOP (1st fitting) 1) Fit the side brackets A and B fig. 69in the holes on the internal sides of the car, on the right and on the left. 2) Fasten the side brackets Aand B WARNING to the body with the nuts and screws provided. Insert the screws and the P5S10025m For safety reasons, do not washers from the outside of the body store the removed wind side and fasten the brackets from the stop in the passenger compart- inside with the nuts, fig. 69. ment. fig. 71 52
