text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

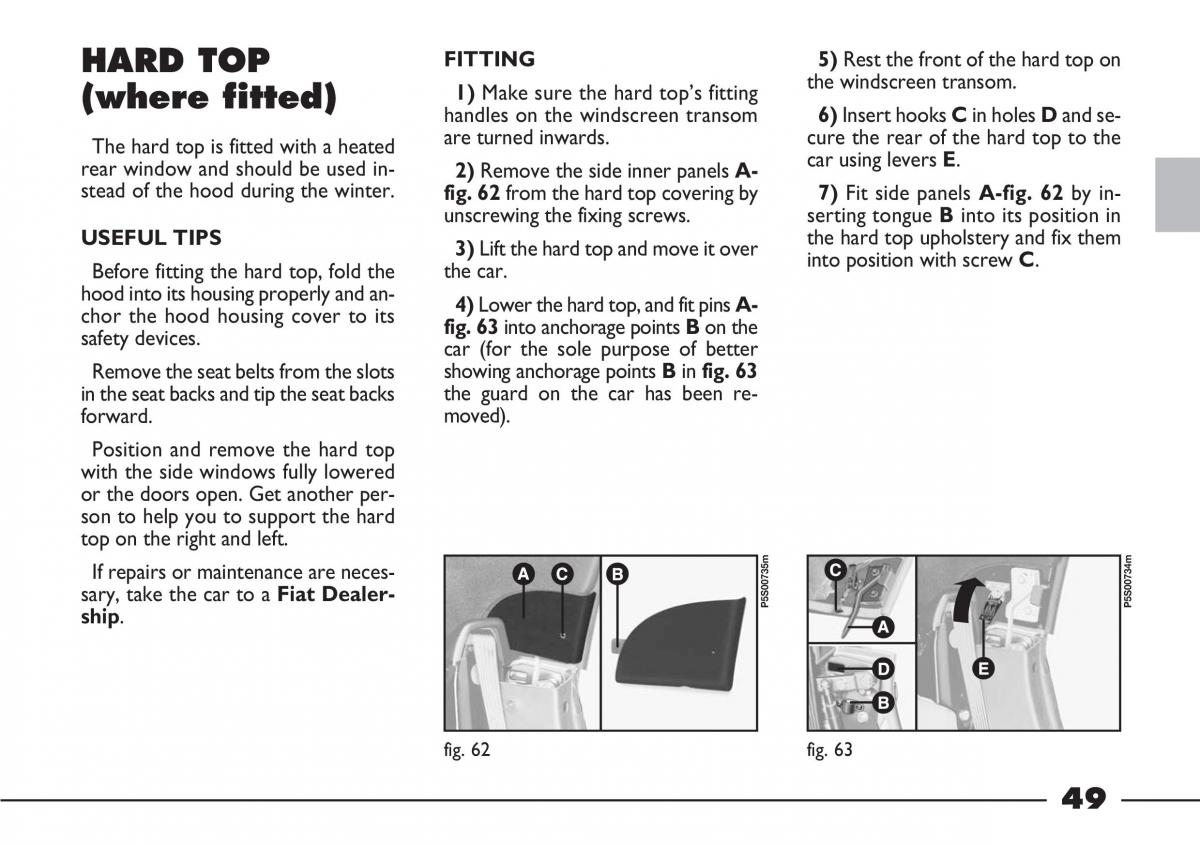

HARD TOP FITTING 5) Rest the front of the hard top on the windscreen transom. (where fitted) 1) Make sure the hard top’s fitting handles on the windscreen transom6)Insert hooks Cin holes Dand se- The hard top is fitted with a heated are turned inwards. cure the rear of the hard top to the rear window and should be used in- car using levers E. 2) Remove the side inner panels A- stead of the hood during the winter. fig. 62 from the hard top covering by 7) Fit side panels A-fig. 62by in- unscrewing the fixing screws. serting tongue B into its position in USEFUL TIPS 3) Lift the hard top and move it over the hard top upholstery and fix them Before fitting the hard top, fold the the car. into position with screw C. hood into its housing properly and an- 4) Lower the hard top, and fit pins A- chor the hood housing cover to its safety devices. fig. 63into anchorage points Bon the car (for the sole purpose of better Remove the seat belts from the slots showing anchorage points Bin fig. 63 in the seat backs and tip the seat backs the guard on the car has been re- forward. moved). Position and remove the hard top with the side windows fully lowered or the doors open. Get another per- son to help you to support the hard top on the right and left. If repairs or maintenance are neces- sary, take the car to a Fiat Dealer- P5S00735m P5S00734m ship. fig. 62 fig. 63 49
