text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

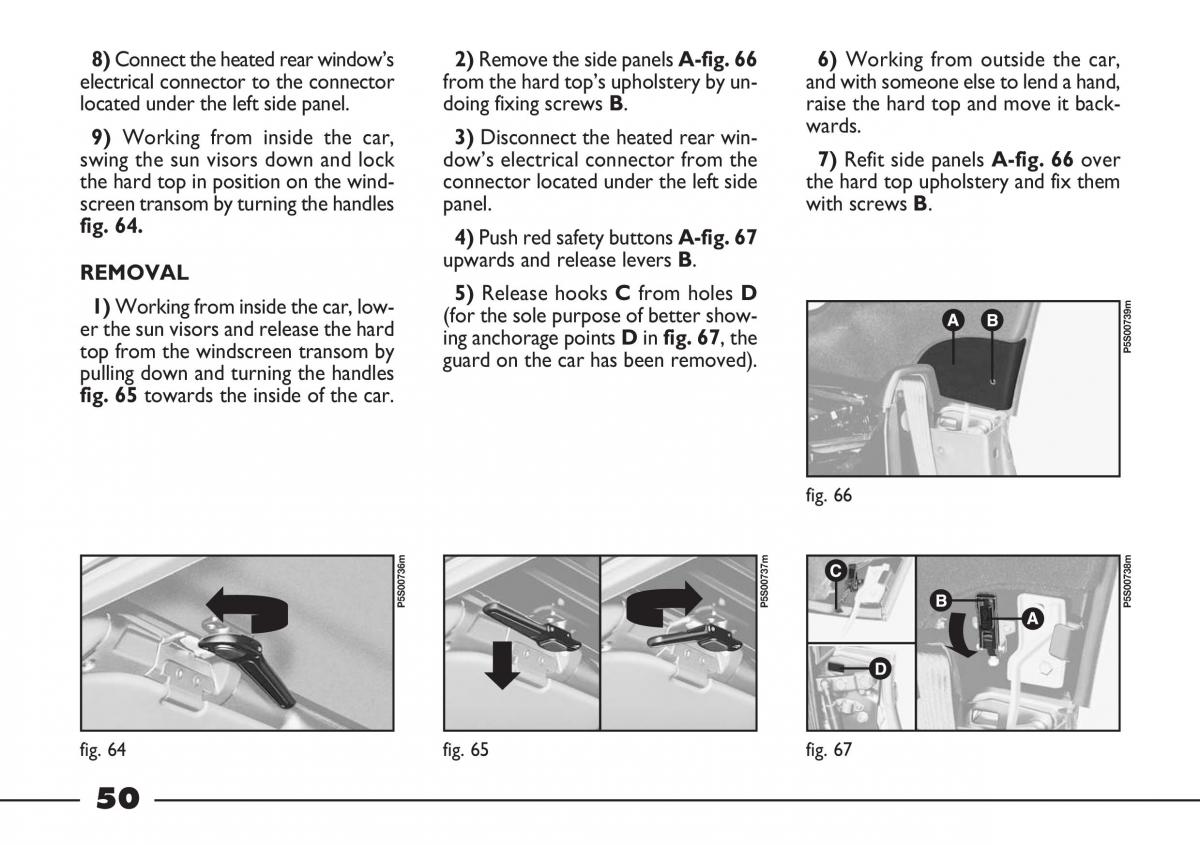

8) Connect the heated rear window’s 2) Remove the side panels A-fig. 66 6) Working from outside the car, electrical connector to the connector from the hard top’s upholstery by un- and with someone else to lend a hand, located under the left side panel. doing fixing screws B. raise the hard top and move it back- 9) Working from inside the car,3) Disconnect the heated rear win- wards. swing the sun visors down and lockdow’s electrical connector from the7) Refit side panels A-fig. 66over the hard top in position on the wind- connector located under the left side the hard top upholstery and fix them screen transom by turning the handles panel. with screws B. fig. 64. 4) Push red safety buttons A-fig. 67 REMOVAL upwards and release levers B. 1) Working from inside the car, low- 5) Release hooks C from holes D er the sun visors and release the hard (for the sole purpose of better show- top from the windscreen transom by ing anchorage points Din fig. 67, the P5S00739m pulling down and turning the handles guard on the car has been removed). fig. 65 towards the inside of the car. fig. 66 P5S00736m P5S00737m P5S00738m fig. 64 fig. 65 fig. 67 50
