owners manual Subaru XV

owners manual Subaru XV - year of production: 2011 - Subaru XV Crosstrek owners manual EN

Document: pdf (57.38 MB) 598 pages

all ratings: 0 average rating: 5

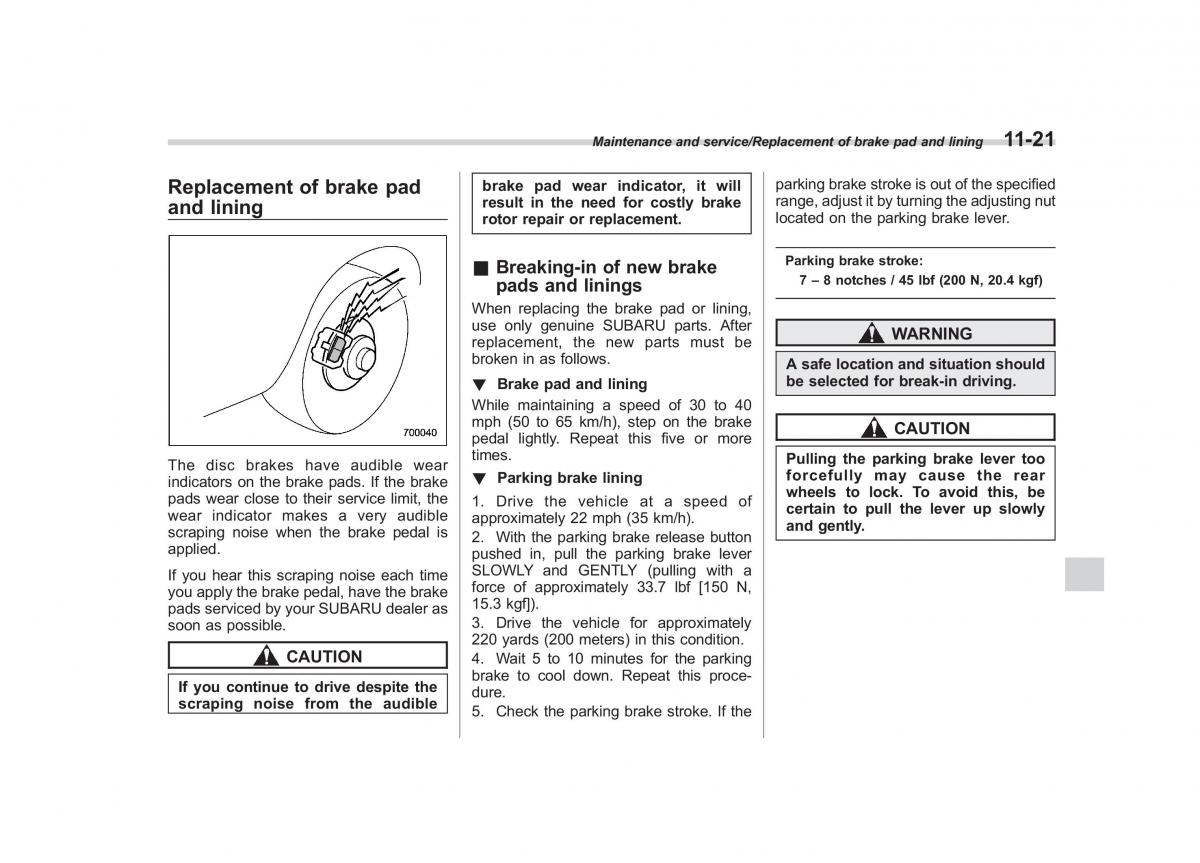

text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

Maintenance and service/Replacement of brake pad and lining11-21 Replacement of brake pad brake pad wear indicator, it willparking brake stroke is out of the specified and lining result in the need for costly brakerange, adjust it by turning the adjusting nut rotor repair or replacement.located on the parking brake lever. &Breaking-in of new brake Parking brake stroke: pads and linings 7 – 8 notches / 45 lbf (200 N, 20.4 kgf) When replacing the brake pad or lining, use only genuine SUBARU parts. After WARNING replacement, the new parts must be broken in as follows. Asafelocation and situation should ! Brake pad and lining be selected for break-in driving. While maintaining a speed of 30 to 40 mph (50 to 65 km/h), step on the brake CAUTION pedal lightly. Repeat this five or more The disc brakes have audible wear times. Pulling the parking brake lever too indicators on the brake pads. If the brake! Parking brake liningforcefully may cause the rear pads wear close to their service limit, the1. Drive the vehicle at a speed of wheels to lock. To avoid this, be wear indicator makes a very audibleapproximately 22 mph (35 km/h).certain to pull the lever up slowly scraping noise when the brake pedal is and gently. 2. With the parking brake release button applied. pushed in, pull the parking brake lever If you hear this scraping noise each timeSLOWLY and GENTLY (pulling with a you apply the brake pedal, have the brakeforce of approximately 33.7 lbf [150 N, pads serviced by your SUBARU dealer as15.3 kgf]). soon as possible. 3. Drive the vehicle for approximately 220 yards (200 meters) in this condition. CAUTION 4. Wait 5 to 10 minutes for the parking brake to cool down. Repeat this proce- If you continue to drive despite thedure. scraping noise from the audible5. Check the parking brake stroke. If the
