text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

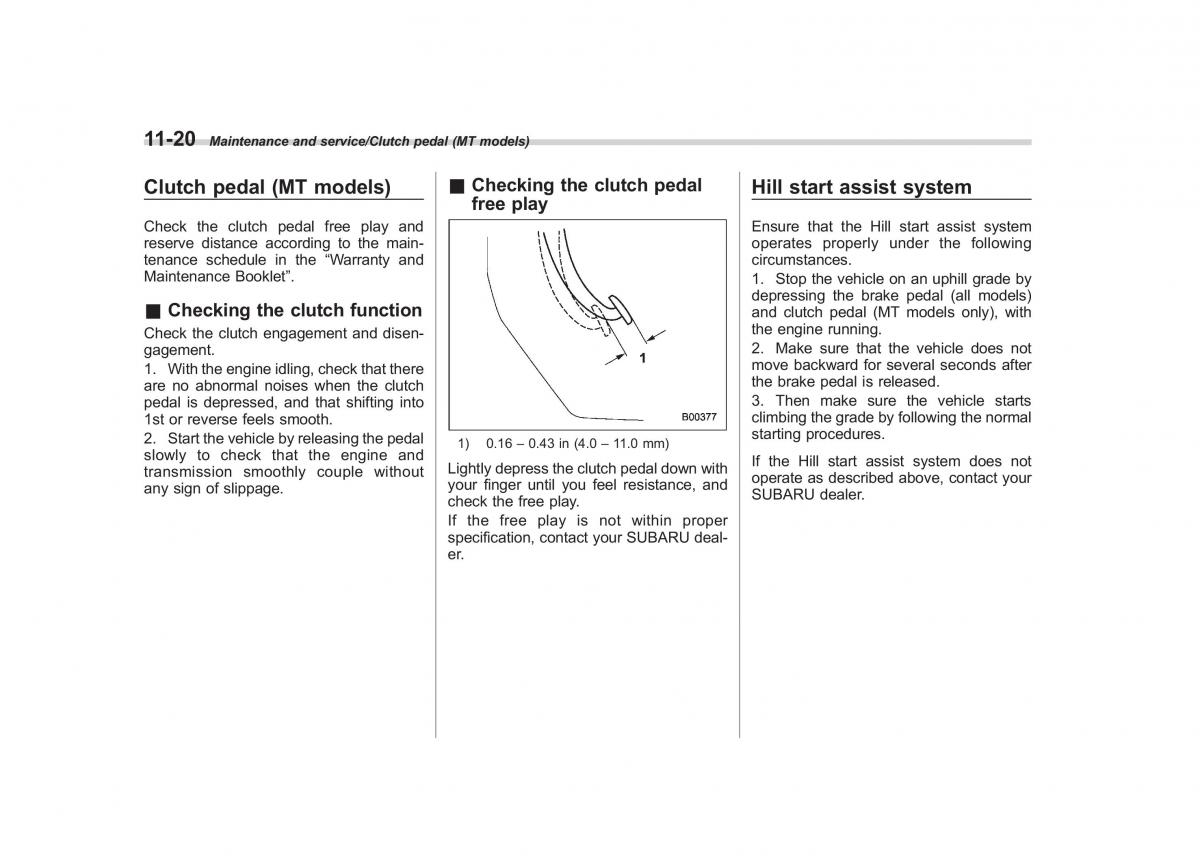

11-20 Maintenance and service/Clutch pedal (MT models) Clutch pedal (MT models) &Checking the clutch pedal Hill start assist system free play Check the clutch pedal free play and Ensure that the Hill start assist system reserve distance according to the main- operates properly under the following tenance schedule in the “Warranty and circumstances. Maintenance Booklet”. 1. Stop the vehicle on an uphill grade by depressing the brake pedal (all models) &Checking the clutch function and clutch pedal (MT models only), with Check the clutch engagement and disen- the engine running. gagement. 2. Make sure that the vehicle does not 1. Withtheengineidling, checkthat there move backward for several seconds after are no abnormal noises when the clutch the brake pedal is released. pedal is depressed, and that shifting into 3. Then make sure the vehicle starts 1st or reverse feels smooth. climbing the grade by following the normal 2. Start the vehicle by releasing the pedal1)0.16 – 0.43 in (4.0 – 11.0 mm)starting procedures. slowly to check that the engine and Ifthe Hill start assist system does not Lightly depress the clutch pedal down with transmission smoothly couple without operate as described above, contact your any sign of slippage. your finger until you feel resistance, andSUBARUdealer. check the free play. Ifthe free play is not within proper specification, contact your SUBARU deal- er.
