text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

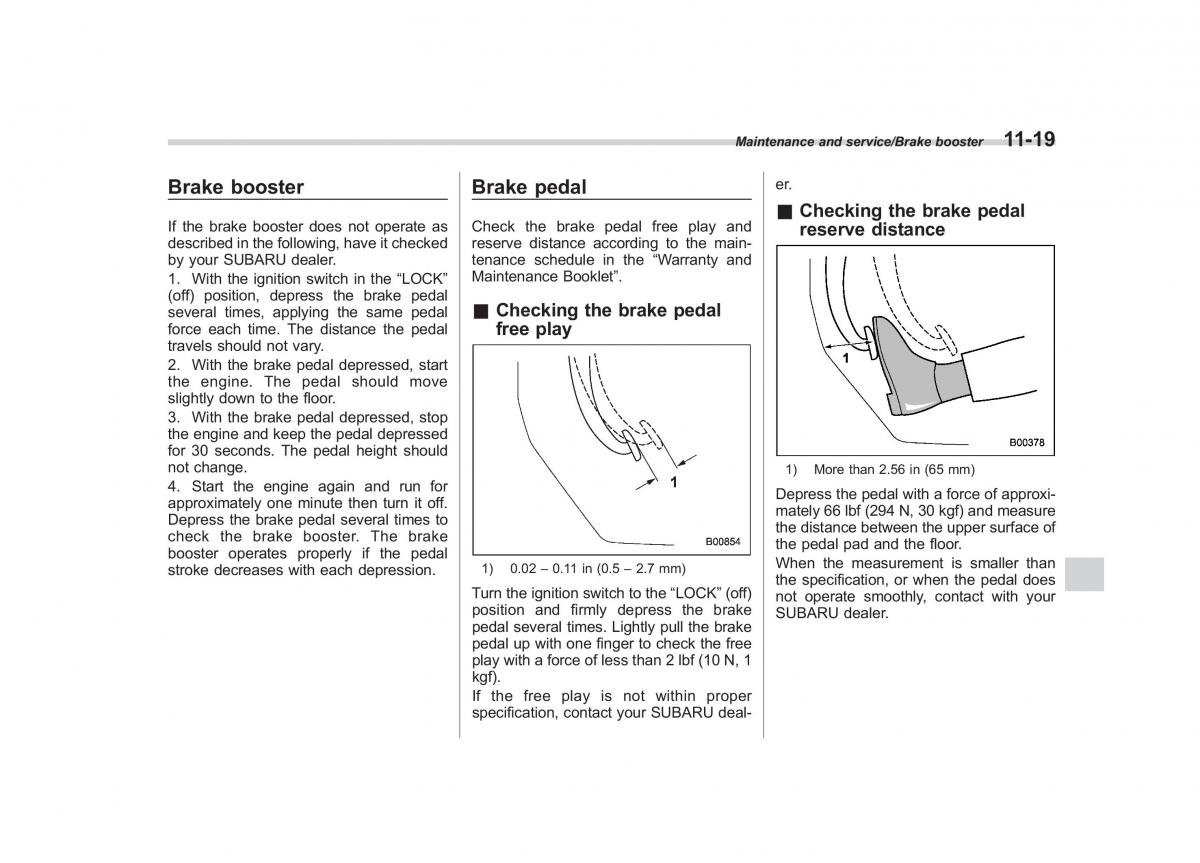

Maintenance and service/Brake booster11-19 Brake booster Brake pedal er. &Checking the brake pedal If the brake booster does not operate asCheck the brake pedal free play andreserve distance described in the following, have it checkedreserve distance according to the main- by your SUBARU dealer. tenance schedule in the “Warranty and 1. With the ignition switch in the “LOCK”Maintenance Booklet”. (off) position, depress the brake pedal several times, applying the same pedal&Checking the brake pedal force each time. The distance the pedalfree play travels should not vary. 2. With the brake pedal depressed, start the engine. The pedal should move slightly down to the floor. 3. With the brake pedal depressed, stop the engine and keep the pedal depressed for 30 seconds. The pedal height should not change. 1) More than 2.56 in (65 mm) 4. Start the engine again and run for Depress the pedal with a force of approxi- approximately one minute then turn it off. mately 66 lbf (294 N, 30 kgf) and measure Depress the brake pedal several times to the distance between the upper surface of check the brake booster. The brake the pedal pad and the floor. booster operates properly if the pedal When the measurement is smaller than stroke decreases with each depression.1)0.02 – 0.11 in (0.5 – 2.7 mm) the specification, or when the pedal does Turn the ignition switch to the “LOCK” (off)not operate smoothly, contact with your position and firmly depress the brakeSUBARUdealer. pedal several times. Lightly pull the brake pedal up with one finger to check the free play with a force of less than 2 lbf (10 N, 1 kgf). Ifthe free play is not within proper specification, contact your SUBARU deal-
