text version of content this owner's manual page from owners manual to the vehicle KIA Niro, year of production 2016:

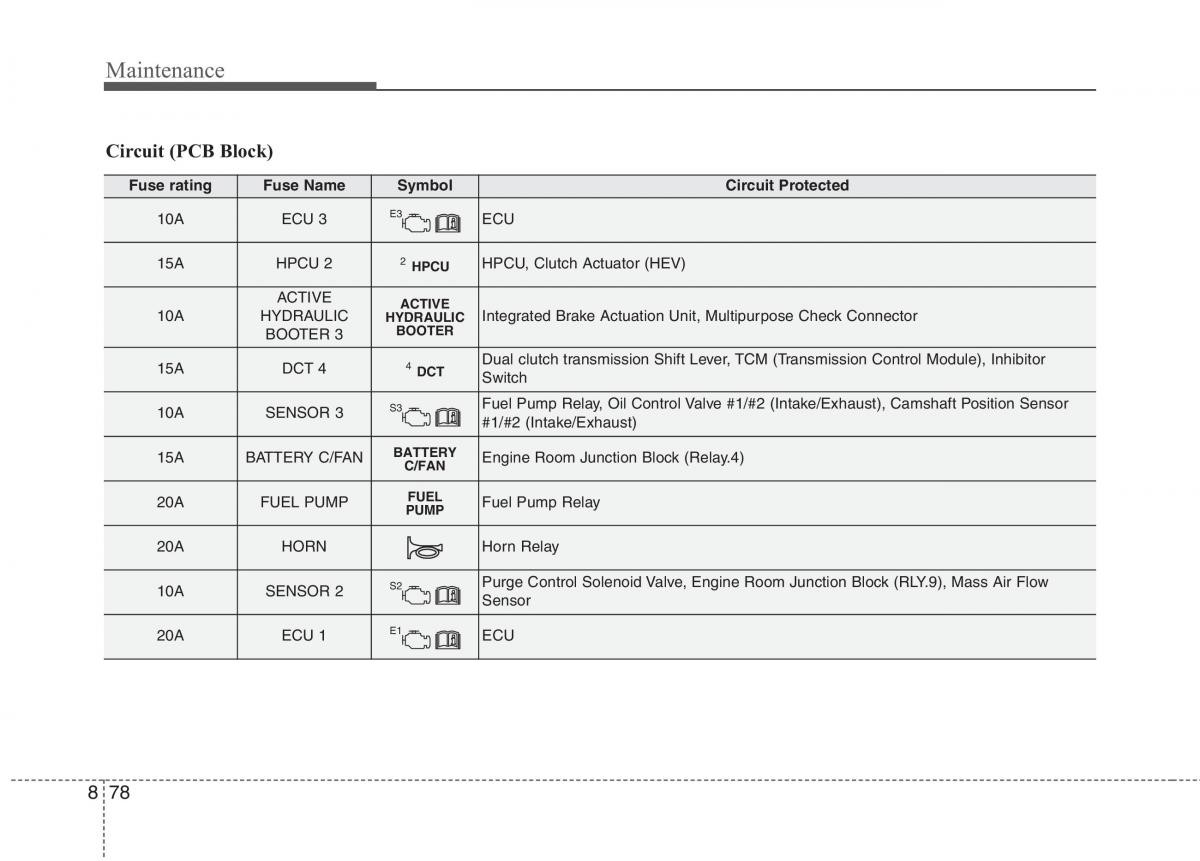

Maintenance Circuit (PCB Block) Fuse rating Fuse Name Symbol Circuit Protected 10A ECU 3 E3 ECU 15A HPCU 2 2 HPCU HPCU, Clutch Actuator (HEV) ACTIVE ACTIVE 10A HYDRAULIC HYDRAULIC Integrated Brake Actuation Unit, Multipurpose Check Connector BOOTER 3 BOOTER 15A DCT 4 4 Dual clutch transmission Shift Lever, TCM (Transmission Control Module), Inhibitor DCT Switch 10A SENSOR 3 S3 Fuel Pump Relay, Oil Control Valve #1/#2 (Intake/Exhaust), Camshaft Position Sensor #1/#2 (Intake/Exhaust) 15A BATTERY C/FAN BATTERY Engine Room Junction Block (Relay.4) C/FAN 20A FUEL PUMP FUEL Fuel Pump Relay PUMP 20A HORN Horn Relay 10A SENSOR 2 S2 Purge Control Solenoid Valve, Engine Room Junction Block (RLY.9), Mass Air Flow Sensor 20A ECU 1 E1 ECU 8 78
