text version of content this owner's manual page from owners manual to the vehicle KIA Niro, year of production 2016:

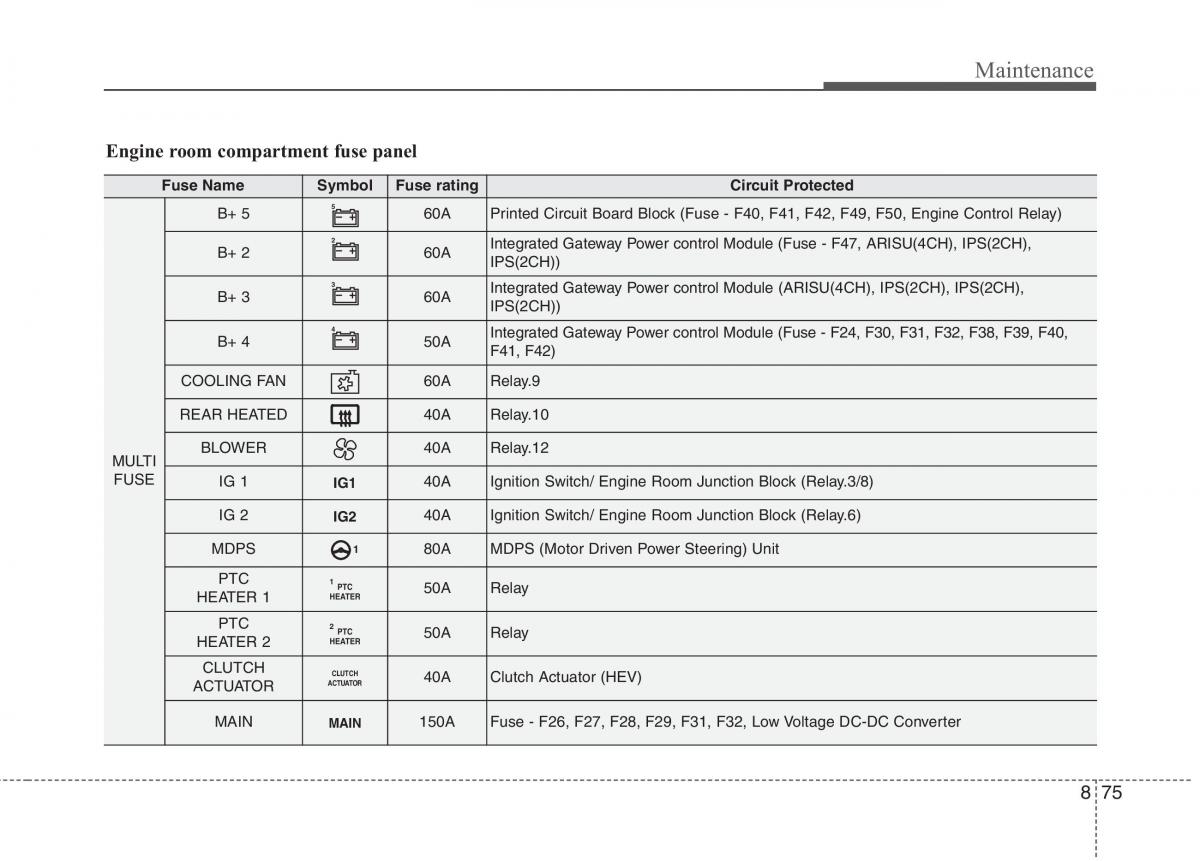

Maintenance Engine room compartment fuse panel Fuse Name Symbol Fuse rating Circuit Protected B+ 5 5 60A Printed Circuit Board Block (Fuse - F40, F41, F42, F49, F50, Engine Control Relay) 2 Integrated Gateway Power control Module (Fuse - F47, ARISU(4CH), IPS(2CH), B+ 2 60A IPS(2CH)) 3 Integrated Gateway Power control Module (ARISU(4CH), IPS(2CH), IPS(2CH), B+ 3 60A IPS(2CH)) 4 Integrated Gateway Power control Module ( Fuse - F24, F30, F31, F32, F38, F39, F40, B+ 4 50A F41, F42) COOLING FAN 60A Relay.9 REAR HEATED 40A Relay.10 BLOWER 40A Relay.12 MULTI FUSE IG 1 IG1 40A Ignition Switch/ Engine Room Junction Block (Relay.3/8) IG 2 IG2 40A Ignition Switch/ Engine Room Junction Block (Relay.6) MDPS 1 80A MDPS (Motor Driven Power Steering) Unit PTC 1 PTC 50A Relay HEATER 1 HEATER PTC 2 PTC 50A Relay HEATER 2 HEATER CLUTCH CLUTCH 40A Clutch Actuator (HEV) ACTUATOR ACTUATOR MAIN MAIN 150A Fuse - F26, F27, F28, F29, F31, F32, Low Voltage DC-DC Converter 875
