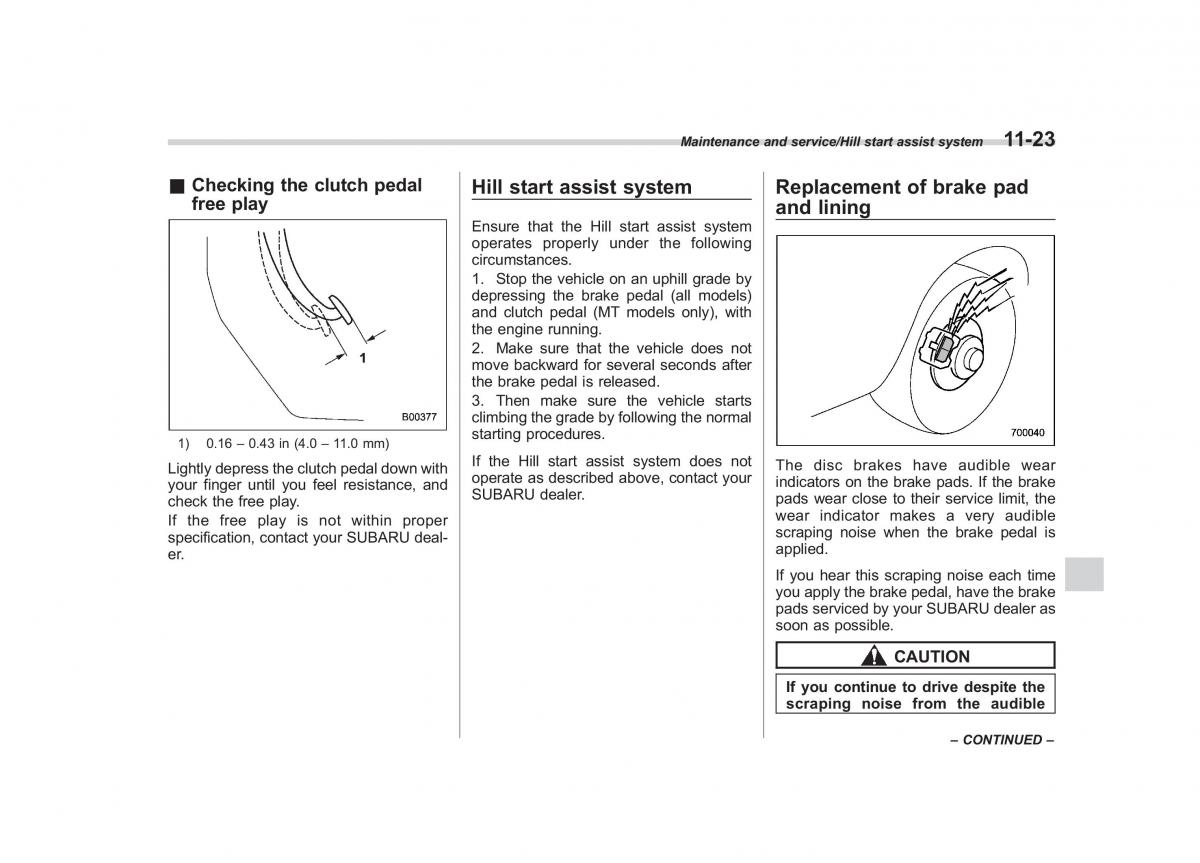

Maintenance and service/Hill start assist system11-23
&Checking the clutch pedal Hill start assist system Replacement of brake pad
free play and lining
Ensure that the Hill start assist system
operates properly under the following
circumstances.
1. Stop the vehicle on an uphill grade by
depressing the brake pedal (all models)
and clutch pedal (MT models only), with
the engine running.
2. Make sure that the vehicle does not
move backward for several seconds after
the brake pedal is released.
3. Then make sure the vehicle starts
climbing the grade by following the normal
1)0.16 – 0.43 in (4.0 – 11.0 mm)starting procedures.
Lightly depress the clutch pedal down withIfthe Hill start assist system does notThe disc brakes have audible wear
your finger until you feel resistance, andoperate as described above, contact yourindicators on the brake pads. If the brake
check the free play. SUBARUdealer. pads wear close to their service limit, the
Ifthe free play is not within proper wear indicator makes a very audible
specification, contact your SUBARU deal- scraping noise when the brake pedal is
er. applied.
If you hear this scraping noise each time
you apply the brake pedal, have the brake
pads serviced by your SUBARU dealer as
soon as possible.
CAUTION
If you continue to drive despite the
scraping noise from the audible
– CONTINUED –
