text version of content this owner's manual page from owners manual to the vehicle Subaru Forester, year of production 2012:

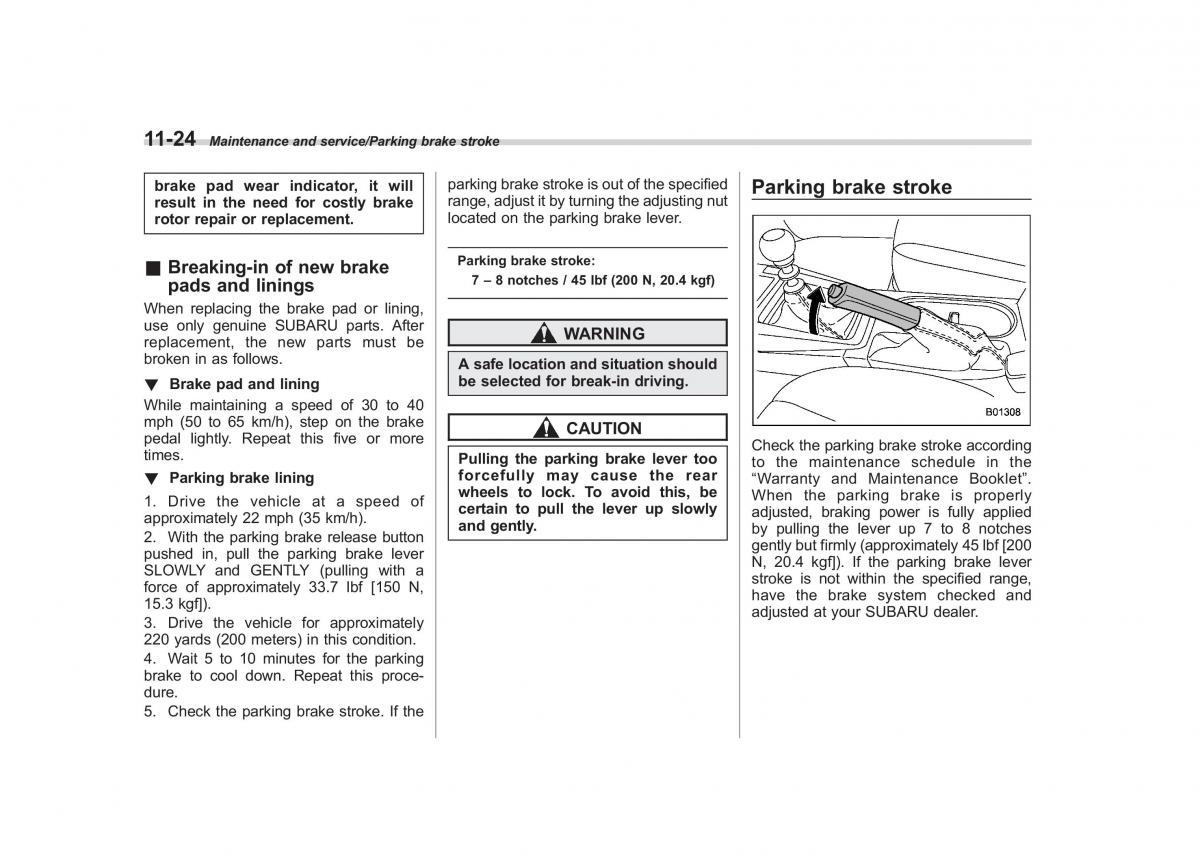

11-24 Maintenance and service/Parking brake stroke brake pad wear indicator, it willparking brake stroke is out of the specifiedParking brake stroke result in the need for costly brakerange, adjust it by turning the adjusting nut rotor repair or replacement.located on the parking brake lever. &Breaking-in of new brake Parking brake stroke: pads and linings 7 – 8 notches / 45 lbf (200 N, 20.4 kgf) When replacing the brake pad or lining, use only genuine SUBARU parts. After WARNING replacement, the new parts must be broken in as follows. Asafelocation and situation should ! Brake pad and lining be selected for break-in driving. While maintaining a speed of 30 to 40 mph (50 to 65 km/h), step on the brake CAUTION pedal lightly. Repeat this five or more Check the parking brake stroke according times. Pulling the parking brake lever tooto the maintenance schedule in the ! Parking brake lining forcefully may cause the rear “Warranty and Maintenance Booklet”. wheels to lock. To avoid this, beWhen the parking brake is properly 1.Drivethevehicleataspeedof approximately 22 mph (35 km/h).certain to pull the lever up slowlyadjusted, braking power is fully applied and gently. by pulling the lever up 7 to 8 notches 2. With the parking brake release button gently but firmly (approximately 45 lbf [200 pushed in, pull the parking brake lever N, 20.4 kgf]). If the parking brake lever SLOWLY and GENTLY (pulling with a stroke is not within the specified range, force of approximately 33.7 lbf [150 N, have the brake system checked and 15.3 kgf]). adjusted at your SUBARU dealer. 3. Drive the vehicle for approximately 220 yards (200 meters) in this condition. 4. Wait 5 to 10 minutes for the parking brake to cool down. Repeat this proce- dure. 5. Check the parking brake stroke. If the
