owners manual Hyundai i30

all ratings: 0 average rating: 5

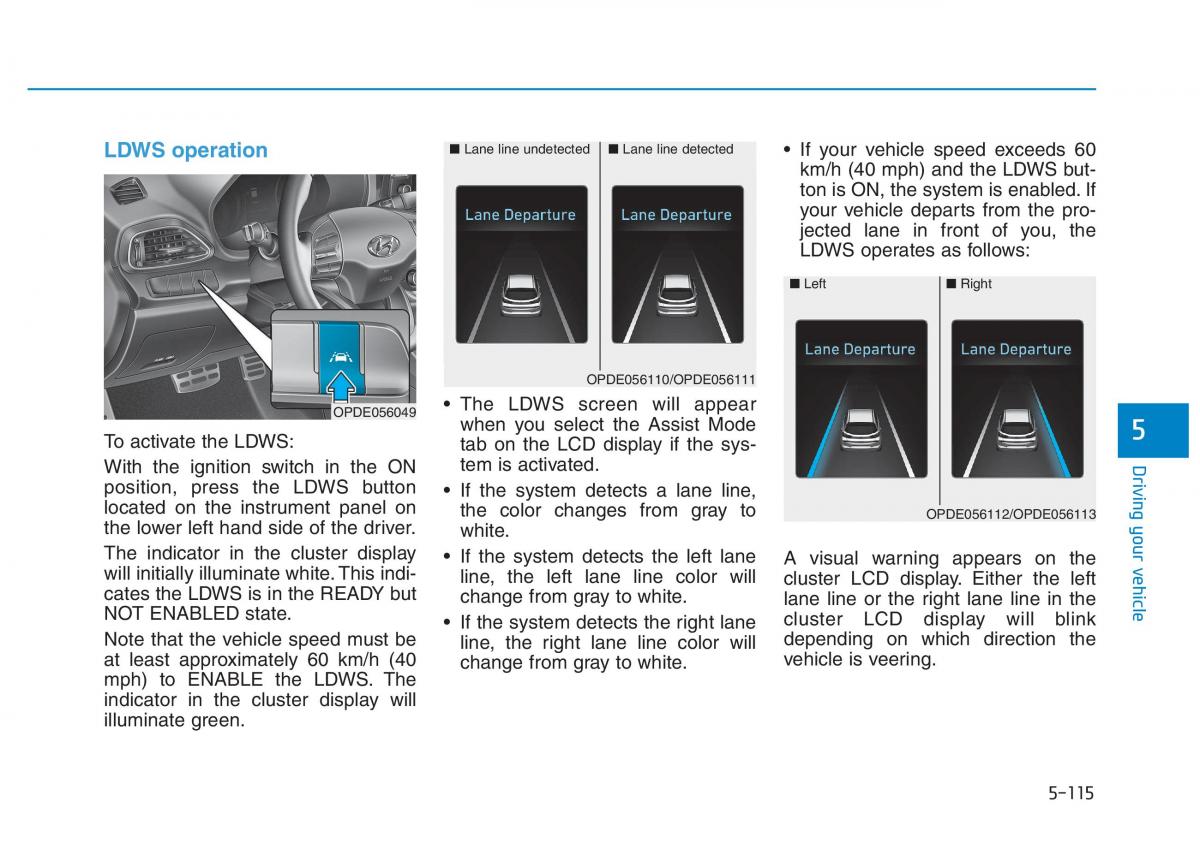

LDWS operation ■Lane line undetected ■ Lane line detected If your vehicle speed exceeds 60 km/h (40 mph) and the LDWS but- ton is ON, the system is enabled.If your vehicle departs from the pro- jected lane in front of you, the LDWS operates as follows: ■Left ■Right OPDE056110/OPDE056111 OPDE056049  The LDWS screen will appear when you select the Assist Mode 5 To activate the LDWS: tab on the LCD display if the sys- tem is activated. Dri With the ignition switch in the ON position, press the LDWS button ving y  If the system detects a lane line, located on the instrument panel on the color changes from gray to OPDE056112/OPDE056113 the lower left hand side of the driver. white. o The indicator in the cluster display ur v  If the system detects the left lane A visual warning appears on the will initially illuminate white.This indi- ehicle line, the left lane line color will cluster LCD display. Either the left cates the LDWS is in the READY butchange from gray to white. lane line or the right lane line in the NOT ENABLED state. cluster LCD display will blink  If the system detects the right lane Note that the vehicle speed must be depending on which direction the line, the right lane line color will at least approximately 60 km/h (40 vehicle is veering. change from gray to white. mph) to ENABLE the LDWS.The indicator in the cluster display will illuminate green. 5-115
