text version of content this owner's manual page from owners manual to the vehicle Toyota CH-R, year of production 2016:

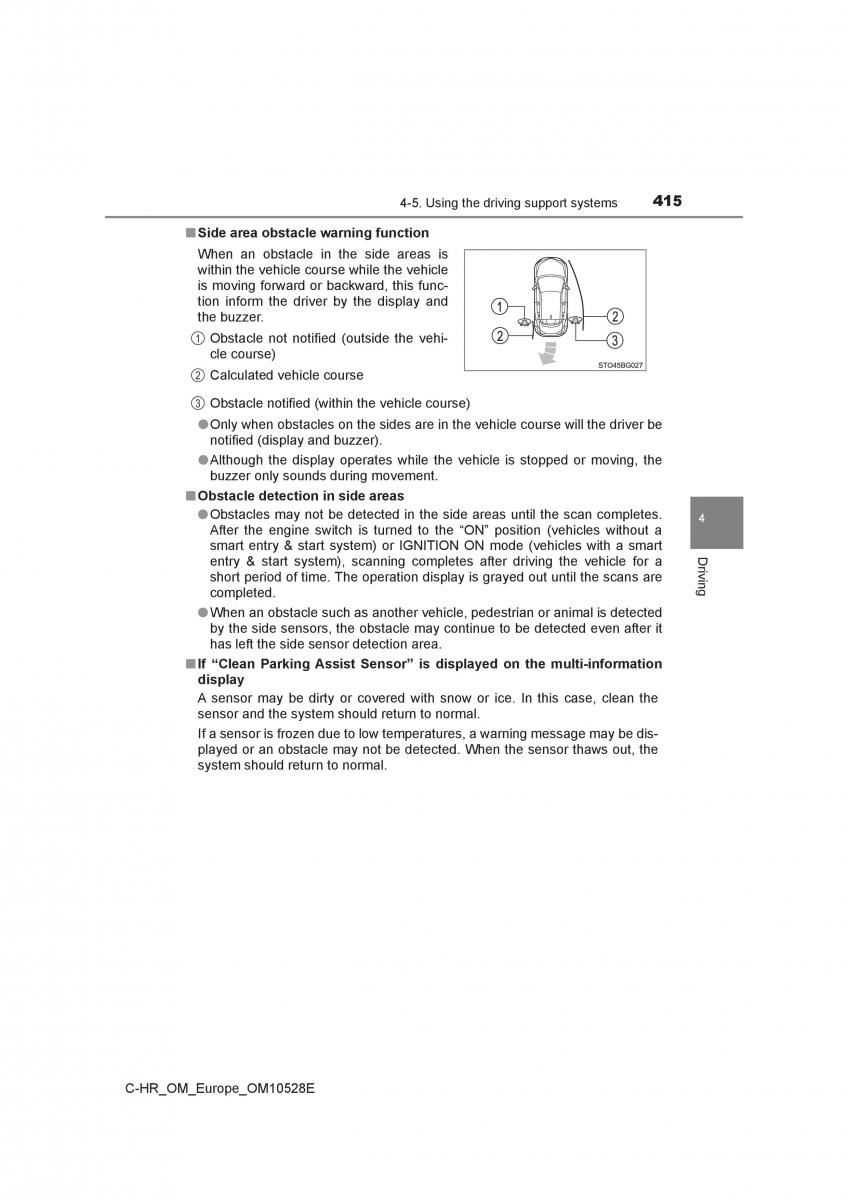

4-5. Using the driving support systems415 ■Side area obstacle warning function When an obstacle in the side areas is within the vehicle course while the vehicle is moving forward or backward, this func- tion inform the driver by the display and the buzzer. 1 Obstacle not notified (outside the vehi- cle course) 2 Calculated vehicle course 3 Obstacle notified (within the vehicle course) ●Only when obstacles on the sides are in the vehicle course will the driver be notified (display and buzzer). ●Although the display operates while the vehicle is stopped or moving, the buzzer only sounds during movement. ■Obstacle detection in side areas ●Obstacles may not be detected in the side areas until the scan completes. 4 After the engine switch is turned to the “ON” position (vehicles without a smart entry & start system) or IGNITION ON mode (vehicles with a smart D entry & start system), scanning completes after driving the vehicle for a r iv short period of time. The operation display is grayed out until the scans arein completed. g ●When an obstacle such as another vehicle, pedestrian or animal is detected by the side sensors, the obstacle may continue to be detected even after it has left the side sensor detection area. ■If “Clean Parking Assist Sensor” is displayed on the multi-information display A sensor may be dirty or covered with snow or ice. In this case, clean the sensor and the system should return to normal. If a sensor is frozen due to low temperatures, a warning message may be dis- played or an obstacle may not be detected. When the sensor thaws out, the system should return to normal. C-HR_OM_Europe_OM10528E
