text version of content this owner's manual page from owners manual to the vehicle Toyota CH-R, year of production 2016:

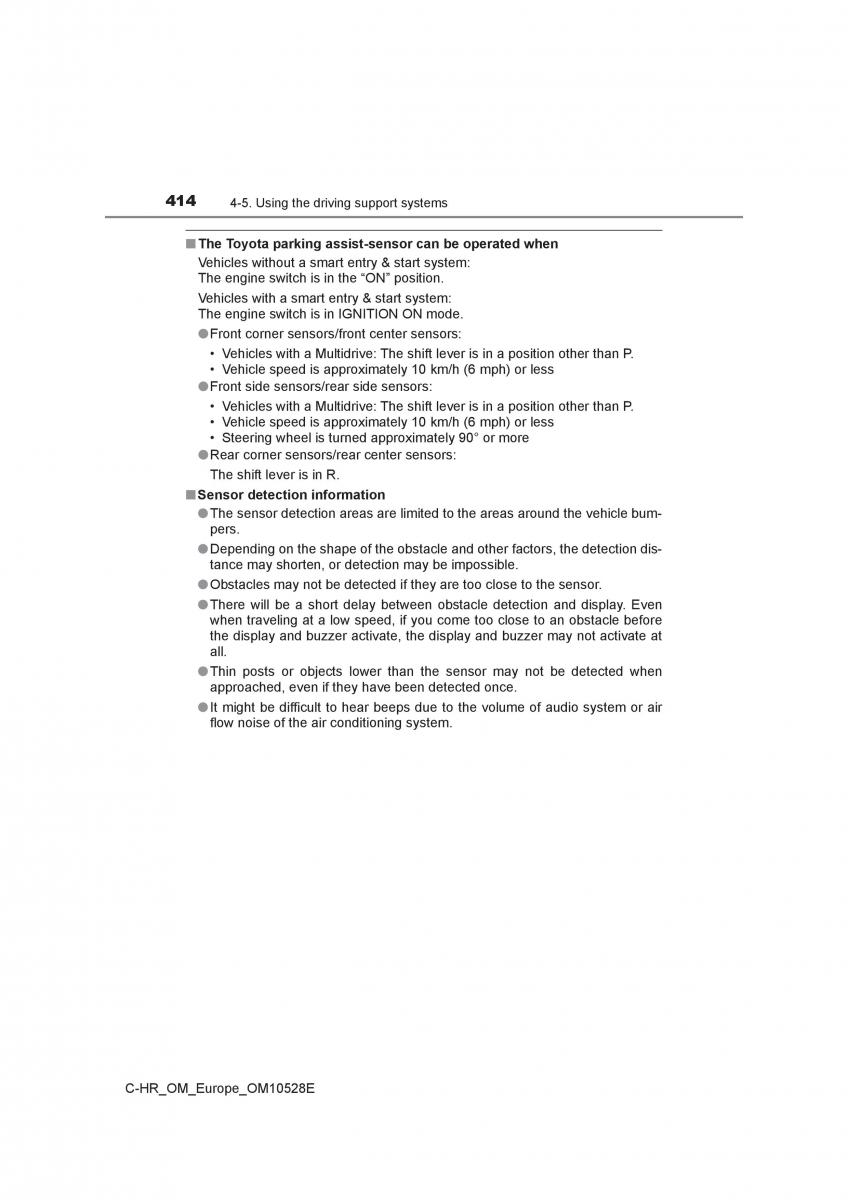

414 4-5. Using the driving support systems ■The Toyota parking assist-sensor can be operated when Vehicles without a smart entry & start system: The engine switch is in the “ON” position. Vehicles with a smart entry & start system: The engine switch is in IGNITION ON mode. ●Front corner sensors/front center sensors: Vehicles with a Multidrive: The shift lever is in a position other than P. Vehicle speed is approximately 10 km/h (6 mph) or less ●Front side sensors/rear side sensors: Vehicles with a Multidrive: The shift lever is in a position other than P. Vehicle speed is approximately 10 km/h (6 mph) or less Steering wheel is turned approximately 90° or more ●Rear corner sensors/rear center sensors: The shift lever is in R. ■Sensor detection information ●The sensor detection areas are limited to the areas around the vehicle bum- pers. ●Depending on the shape of the obstacle and other factors, the detection dis- tance may shorten, or detection may be impossible. ●Obstacles may not be detected if they are too close to the sensor. ●There will be a short delay between obstacle detection and display. Even when traveling at a low speed, if you come too close to an obstacle before the display and buzzer activate, the display and buzzer may not activate at all. ●Thin posts or objects lower than the sensor may not be detected when approached, even if they have been detected once. ●It might be difficult to hear beeps due to the volume of audio system or air flow noise of the air conditioning system. C-HR_OM_Europe_OM10528E
