text version of content this owner's manual page from owners manual to the vehicle Toyota CH-R, year of production 2016:

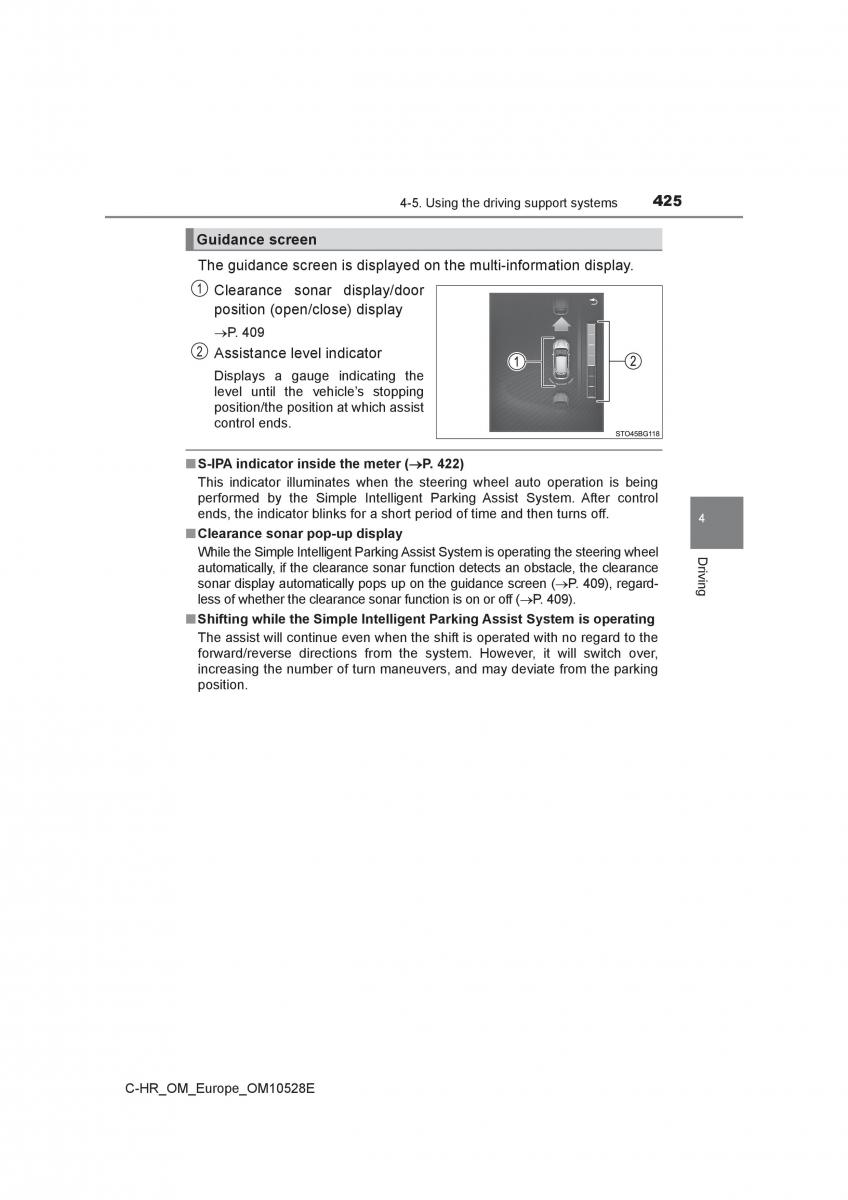

4-5. Using the driving support systems425 Guidance screen The guidance screen is displayed on the multi-information display. 1 Clearance sonar display/door position (open/close) display P. 409 2 Assistance level indicator Displays a gauge indicating the level until the vehicle’s stopping position/the position at which assist control ends. ■S-IPA indicator inside the meter (P. 422) This indicator illuminates when the steering wheel auto operation is being performed by the Simple Intelligent Parking Assist System. After control ends, the indicator blinks for a short period of time and then turns off.4 ■Clearance sonar pop-up display While the Simple Intelligent Parking Assist System is operating the steering wheelD r automatically, if the clearance sonar function detects an obstacle, the clearanceiv sonar display automatically pops up on the guidance screen ( P. 409), regard-in less of whether the clearance sonar function is on or off (P. 409).g ■Shifting while the Simple Intelligent Parking Assist System is operating The assist will continue even when the shift is operated with no regard to the forward/reverse directions from the system. However, it will switch over, increasing the number of turn maneuvers, and may deviate from the parking position. C-HR_OM_Europe_OM10528E
