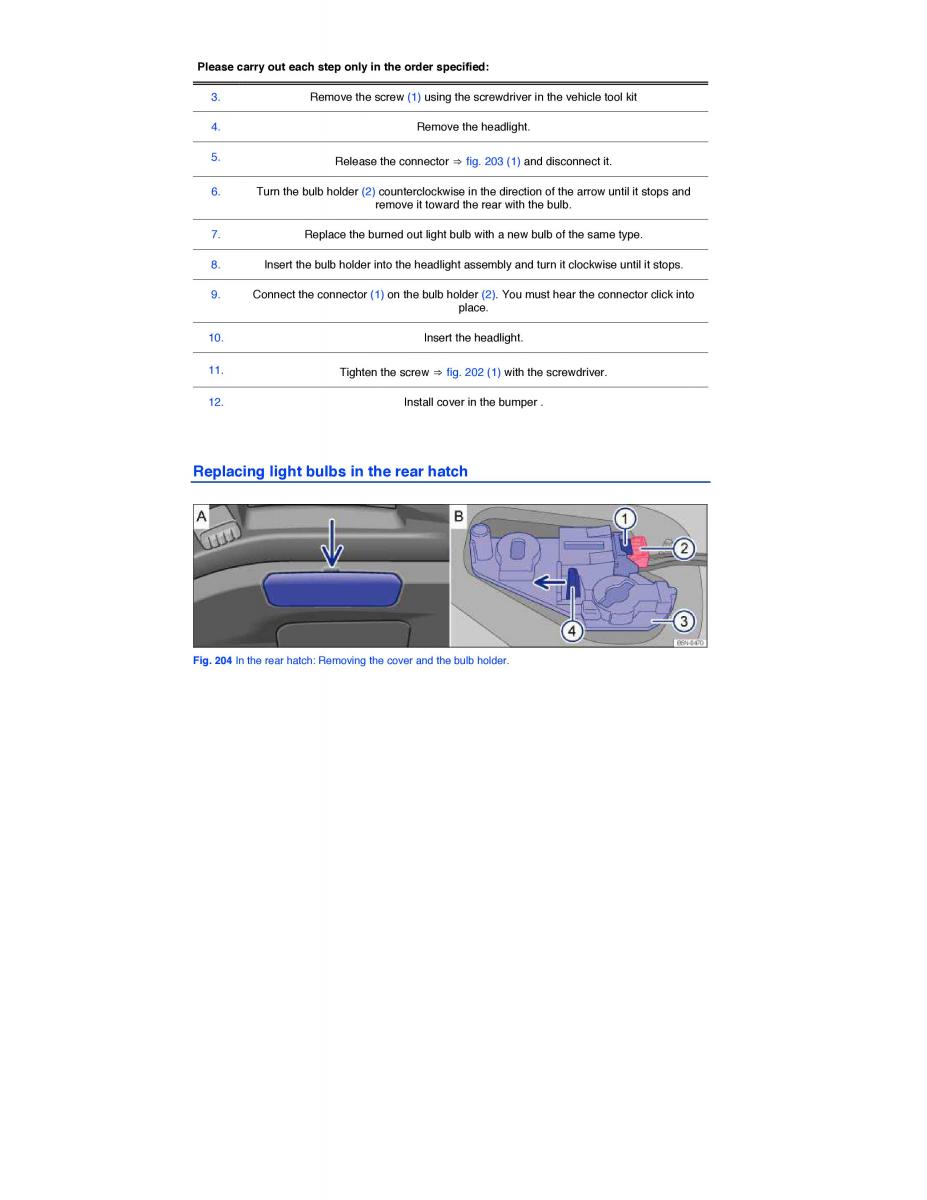

Please carry out each step only in the order specified:
3. Remove the screw (1) using the screwdriver in the vehicle tool kit
4. Remove the headlight.
5. Release the connector ⇒ fig. 203 (1) and disconnect it.
6. Turn the bulb holder (2) counterclockwise in the direction of the arrow until it stops and
remove it toward the rear with the bulb.
7. Replace the burned out light bulb with a new bulb of the same type.
8. Insert the bulb holder into the headlight assembly and turn it clockwise until it stops.
9. Connect the connector (1) on the bulb holder (2). You must hear the connector click into
place.
10. Insert the headlight.
11. Tighten the screw ⇒ fig. 202 (1) with the screwdriver.
12. Install cover in the bumper .
Replacing light bulbs in the rear hatch
Fig. 204 In the rear hatch: Removing the cover and the bulb holder.
