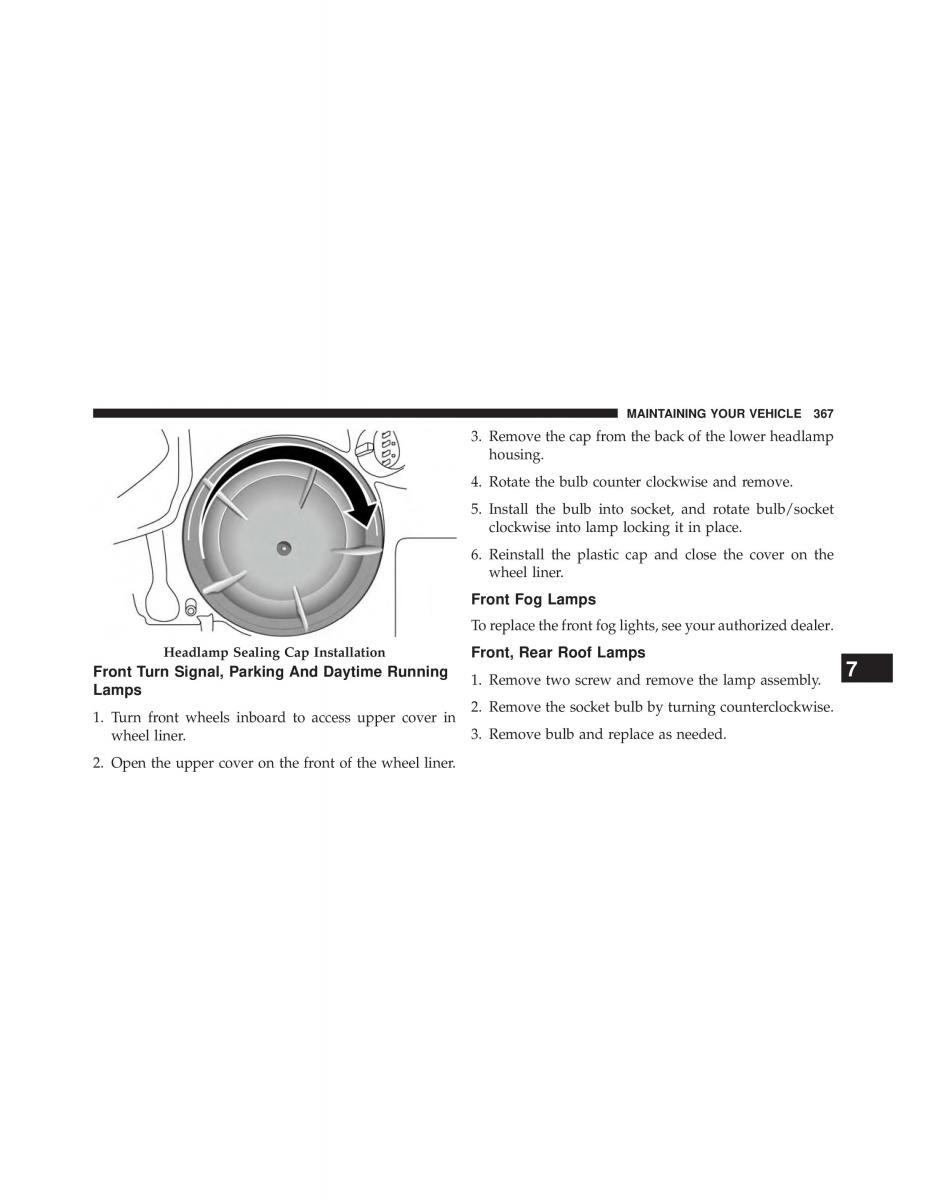

MAINTAINING YOUR VEHICLE 367 3. Remove the cap from the back of the lower headlamp housing. 4. Rotate the bulb counter clockwise and remove. 5. Install the bulb into socket, and rotate bulb/socket clockwise into lamp locking it in place. 6. Reinstall the plastic cap and close the cover on the wheel liner. Front Fog Lamps Toreplacethefrontfoglights,seeyourauthorizeddealer. Headlamp Sealing Cap InstallationFront, Rear Roof Lamps 7 Front Turn Signal, Parking And Daytime Running1. Remove two screw and remove the lamp assembly. Lamps 1. Turn front wheels inboard to access upper cover in2. Remove the socket bulb by turning counterclockwise. wheel liner. 3. Remove bulb and replace as needed. 2. Open the upper cover on the front of the wheel liner.
