text version of content this owner's manual page from owners manual to the vehicle Fiat 500L, year of production 2012:

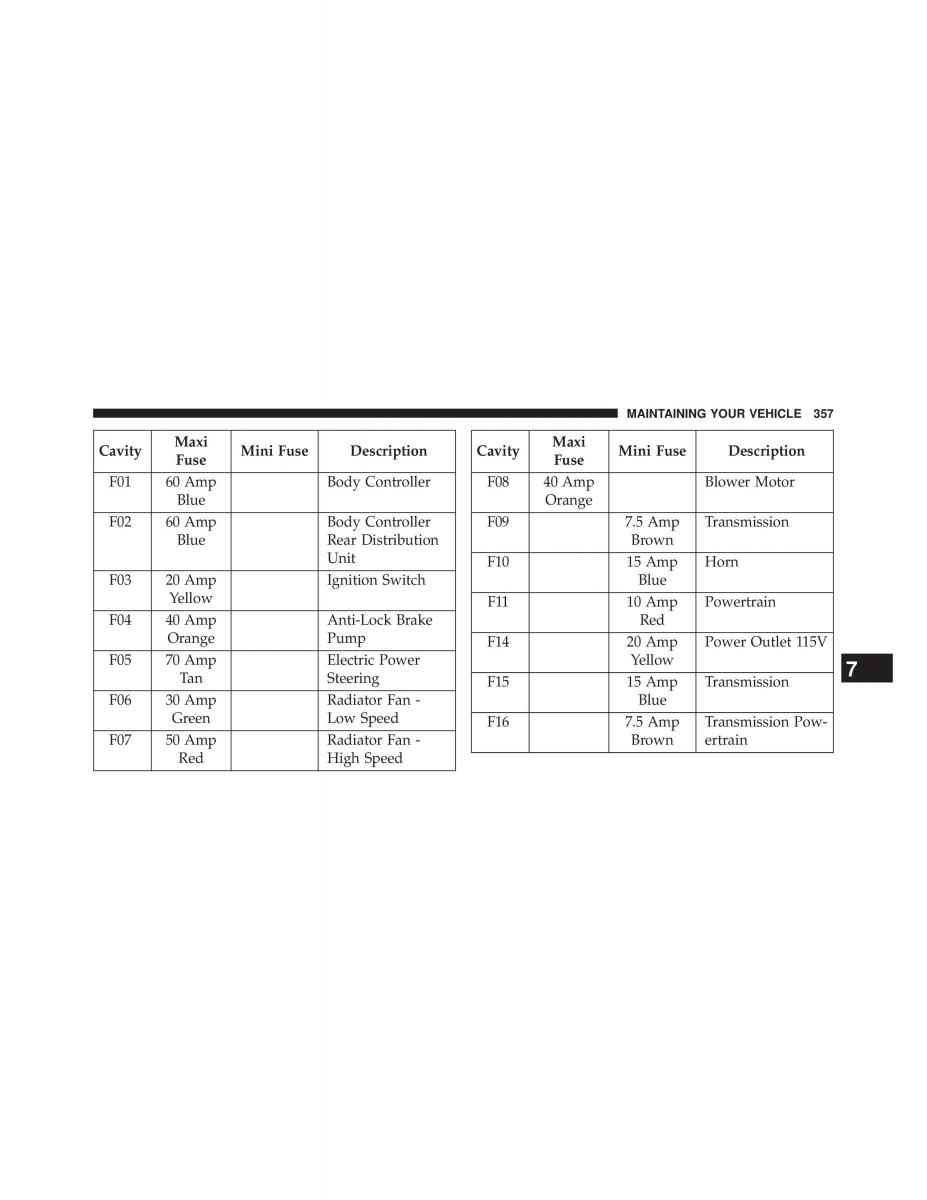

MAINTAINING YOUR VEHICLE 357 Cavity Maxi Mini Fuse Description Cavity Maxi Mini Fuse Description Fuse Fuse F01 60 Amp Body Controller F08 40 Amp Blower Motor Blue Orange F02 60 Amp Body Controller F09 7.5 Amp Transmission Blue Rear Distribution Brown Unit F10 15 Amp Horn F03 20 Amp Ignition Switch Blue Yellow F11 10 Amp Powertrain F04 40 Amp Anti-Lock Brake Red Orange Pump F14 20 Amp Power Outlet 115V F05 70 Amp Electric Power Yellow 7 Tan Steering F15 15 Amp Transmission F06 30 Amp Radiator Fan - Blue Green Low Speed F16 7.5 Amp Transmission Pow- F07 50 Amp Radiator Fan - Brown ertrain Red High Speed
