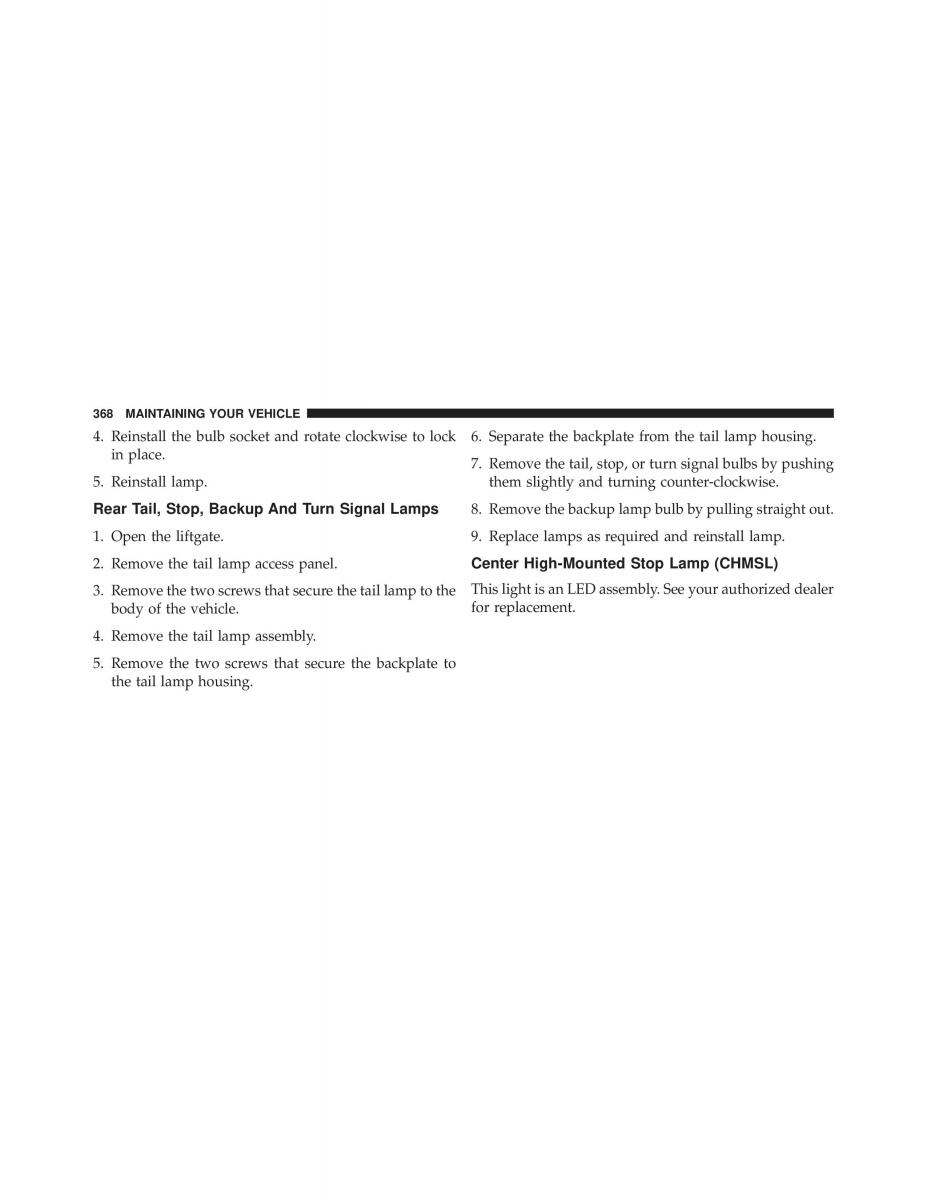

368 MAINTAINING YOUR VEHICLE
4. Reinstall the bulb socket and rotate clockwise to lock6. Separate the backplate from the tail lamp housing.
in place. 7. Remove the tail, stop, or turn signal bulbs by pushing
5. Reinstall lamp. them slightly and turning counter-clockwise.
Rear Tail, Stop, Backup And Turn Signal Lamps8. Removethebackuplampbulbbypullingstraightout.
1. Open the liftgate. 9. Replace lamps as required and reinstall lamp.
2. Remove the tail lamp access panel.Center High-Mounted Stop Lamp (CHMSL)
3. Removethetwoscrewsthatsecurethetaillamptothe ThislightisanLEDassembly.Seeyourauthorizeddealer
body of the vehicle. for replacement.
4. Remove the tail lamp assembly.
5. Remove the two screws that secure the backplate to
the tail lamp housing.
