owners manual Lancia Thesis

owners manual Lancia Thesis - year of production: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 - Lancia Thesis owners manual EN

Document: pdf (5.2 MB) 386 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Lancia Thesis, year of production 2001 - 2009:

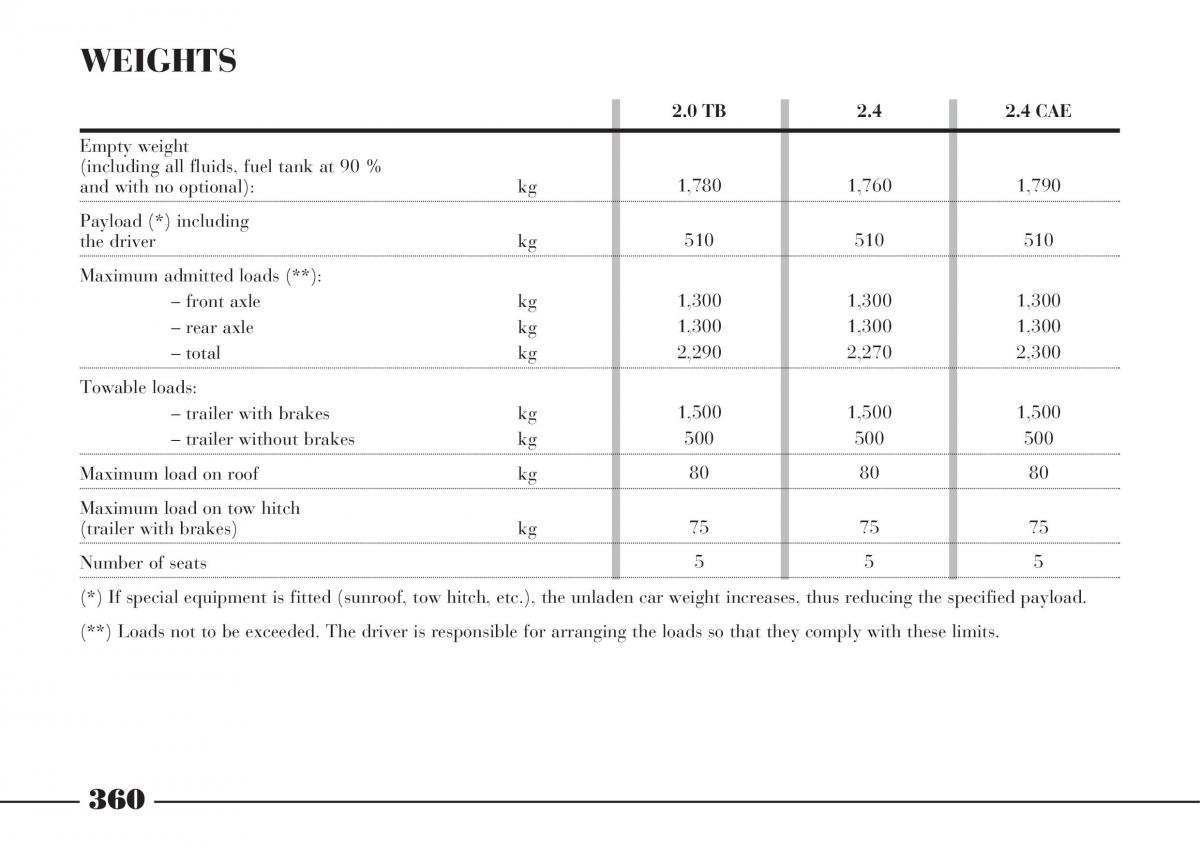

WEIGHTS 2.0 TB 2.4 2.4 CAE Empty weight (including all fluids, fuel tank at 90 % and with no optional): kg 1,780 1,760 1,790 Payload (*) including the driver kg 510 510 510 Maximum admitted loads (**): – front axle kg 1,300 1,300 1,300 – rear axle kg 1,300 1,300 1,300 – total kg 2,290 2,270 2,300 Towable loads: – trailer with brakeskg 1,500 1,500 1,500 – trailer without brakeskg 500 500 500 Maximum load on roof kg 80 80 80 Maximum load on tow hitch (trailer with brakes) kg 75 75 75 Number of seats 5 5 5 (*) If special equipment is fitted (sunroof, tow hitch, etc.), the unladen car weight increases, thus reducing the specified payload. (**) Loads not to be exceeded. The driver is responsible for arranging the loads so that they comply with these limits. 360
