owners manual Lancia Thesis

owners manual Lancia Thesis - year of production: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 - Lancia Thesis owners manual EN

Document: pdf (5.2 MB) 386 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Lancia Thesis, year of production 2001 - 2009:

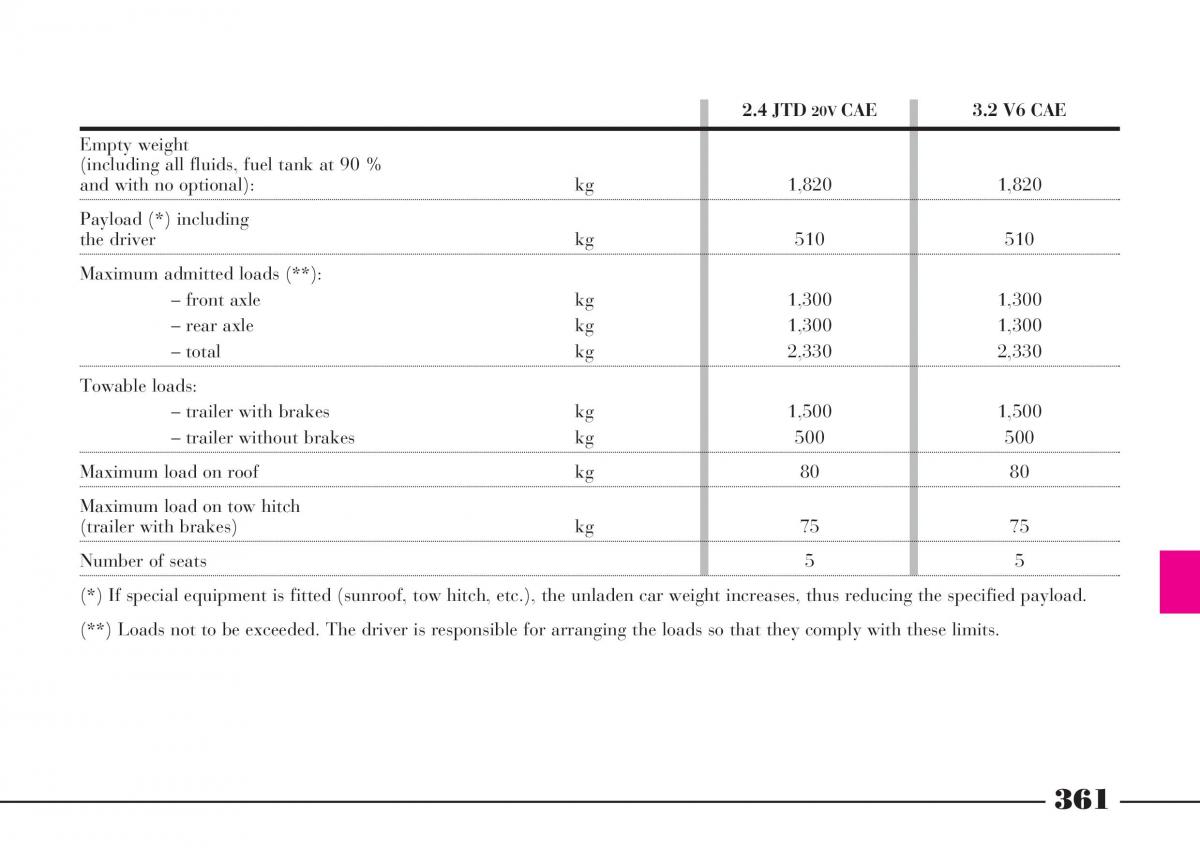

2.4 JTD 20VCAE3.2 V6 CAE Empty weight (including all fluids, fuel tank at 90 % and with no optional): kg 1,820 1,820 Payload (*) including the driver kg 510 510 Maximum admitted loads (**): – front axle kg 1,300 1,300 – rear axle kg 1,300 1,300 – total kg 2,330 2,330 Towable loads: – trailer with brakes kg 1,500 1,500 – trailer without brakeskg 500 500 Maximum load on roof kg 80 80 Maximum load on tow hitch (trailer with brakes) kg 75 75 Number of seats 5 5 (*) If special equipment is fitted (sunroof, tow hitch, etc.), the unladen car weight increases, thus reducing the specified payload. (**) Loads not to be exceeded. The driver is responsible for arranging the loads so that they comply with these limits. 361
