text version of content this owner's manual page from owners manual to the vehicle Lancia Thesis, year of production 2001 - 2009:

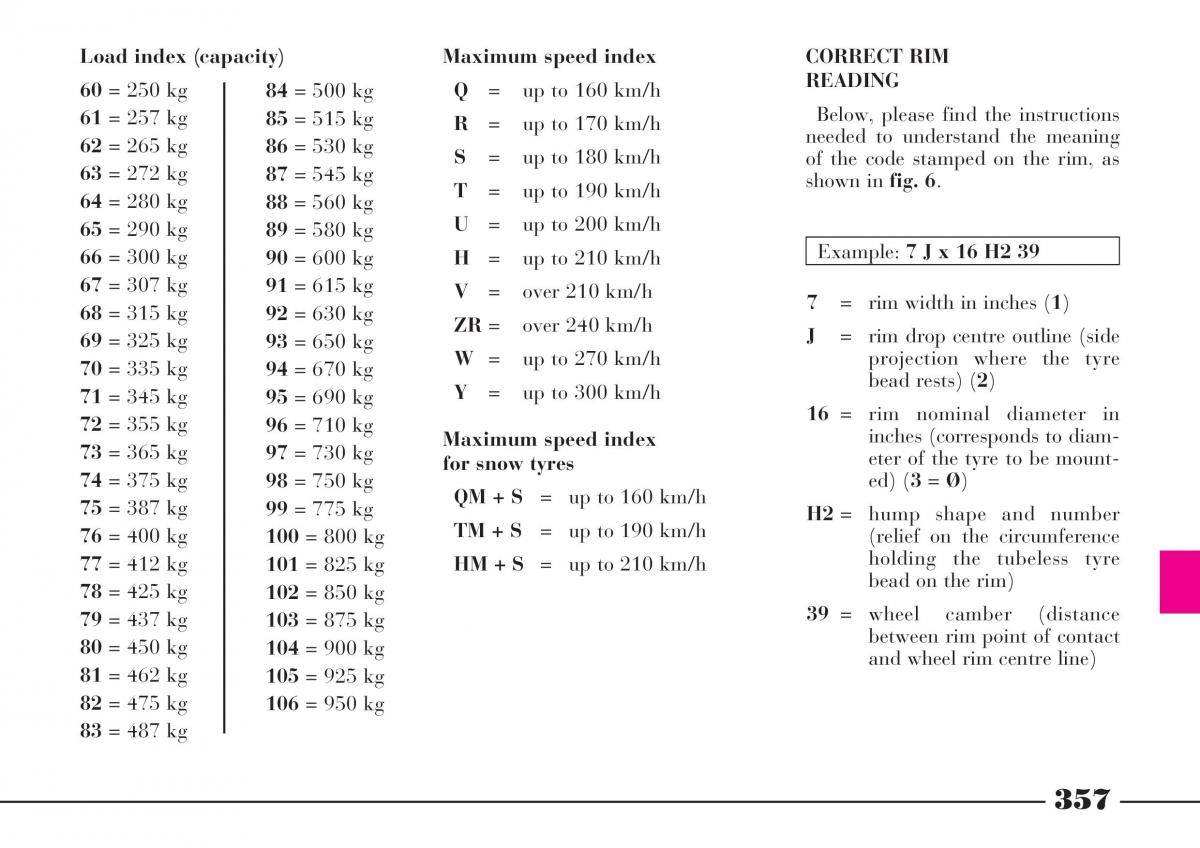

Load index (capacity)Maximum speed index CORRECT RIM 60 = 250 kg84 = 500 kg Q = up to 160 km/h READING 61 = 257 kg 85 = 515 kgR = up to 170 km/h Below, please find the instructions 62 = 265 kg86 = 530 kg needed to understand the meaning 63 = 272 kg87 = 545 kg S = up to 180 km/h of the code stamped on the rim, as T = up to 190 km/h shown in fig. 6. 64 = 280 kg 88 = 560 kg 65 = 290 kg89 = 580 kgU = up to 200 km/h 66 = 300 kg90 = 600 kg H = up to 210 km/h Example: 7 J x 16 H2 39 67 = 307 kg 91 = 615 kgV = over 210 km/h 7 = rim width in inches (1) 68 = 315 kg92 = 630 kgZR= over 240 km/h 69 = 325 kg93 = 650 kg J = rim drop centre outline (side 70 = 335 kg 94 = 670 kg W = up to 270 km/h projection where the tyre 71 = 345 kg95 = 690 kgY = up to 300 km/h bead rests) (2) 72 = 355 kg96 = 710 kg 16 = rim nominal diameter in 73 = 365 kg97 = 730 kg Maximum speed index inches (corresponds to diam- for snow tyres eter of the tyre to be mount- 74 = 375 kg 98 = 750 kgQM + S = up to 160 km/hed) (3 = Ø) 75 = 387 kg99 = 775 kg H2= hump shape and number 76 = 400 kg100 = 800 kg TM + S = up to 190 km/h(relief on the circumference 77 = 412 kg 101 = 825 kgHM + S = up to 210 km/hholding the tubeless tyre 78 = 425 kg102 = 850 kg bead on the rim) 79 = 437 kg103 = 875 kg 39 = wheel camber (distance 80 = 450 kg 104 = 900 kg between rim point of contact 81 = 462 kg105 = 925 kg and wheel rim centre line) 82 = 475 kg106 = 950 kg 83 = 487 kg 357
