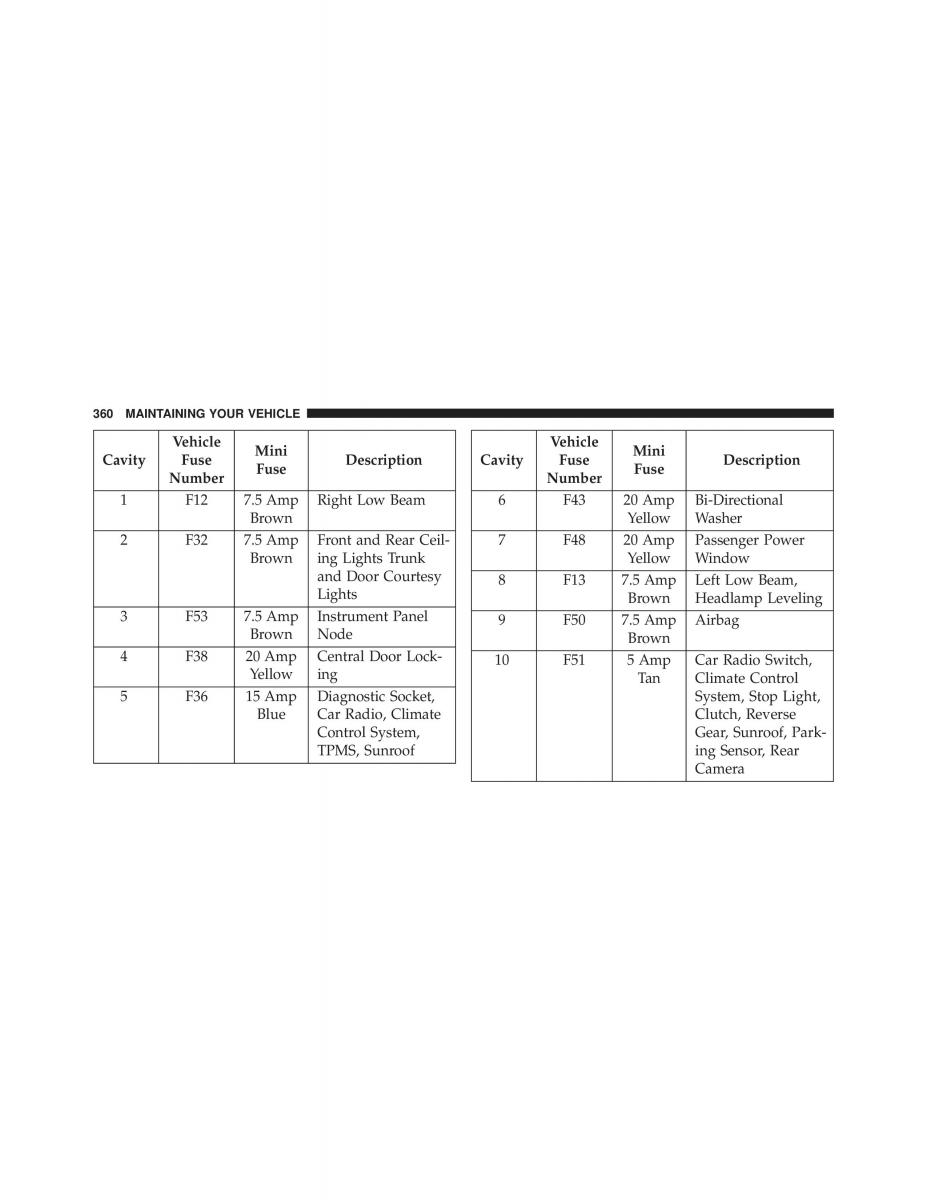

360 MAINTAINING YOUR VEHICLE
Vehicle Mini Vehicle Mini
Cavity Fuse Fuse Description Cavity Fuse Fuse Description
Number Number
1 F12 7.5 Amp Right Low Beam 6 F43 20 Amp Bi-Directional
Brown Yellow Washer
2 F32 7.5 Amp Front and Rear Ceil-7 F48 20 Amp Passenger Power
Brown ing Lights Trunk Yellow Window
and Door Courtesy 8 F13 7.5 Amp Left Low Beam,
Lights Brown Headlamp Leveling
3 F53 7.5 Amp Instrument Panel 9 F50 7.5 Amp Airbag
Brown Node Brown
4 F38 20 Amp Central Door Lock- 10 F51 5 Amp Car Radio Switch,
Yellow ing Tan Climate Control
5 F36 15 Amp Diagnostic Socket, System, Stop Light,
Blue Car Radio, Climate Clutch, Reverse
Control System, Gear, Sunroof, Park-
TPMS, Sunroof ing Sensor, Rear
Camera
