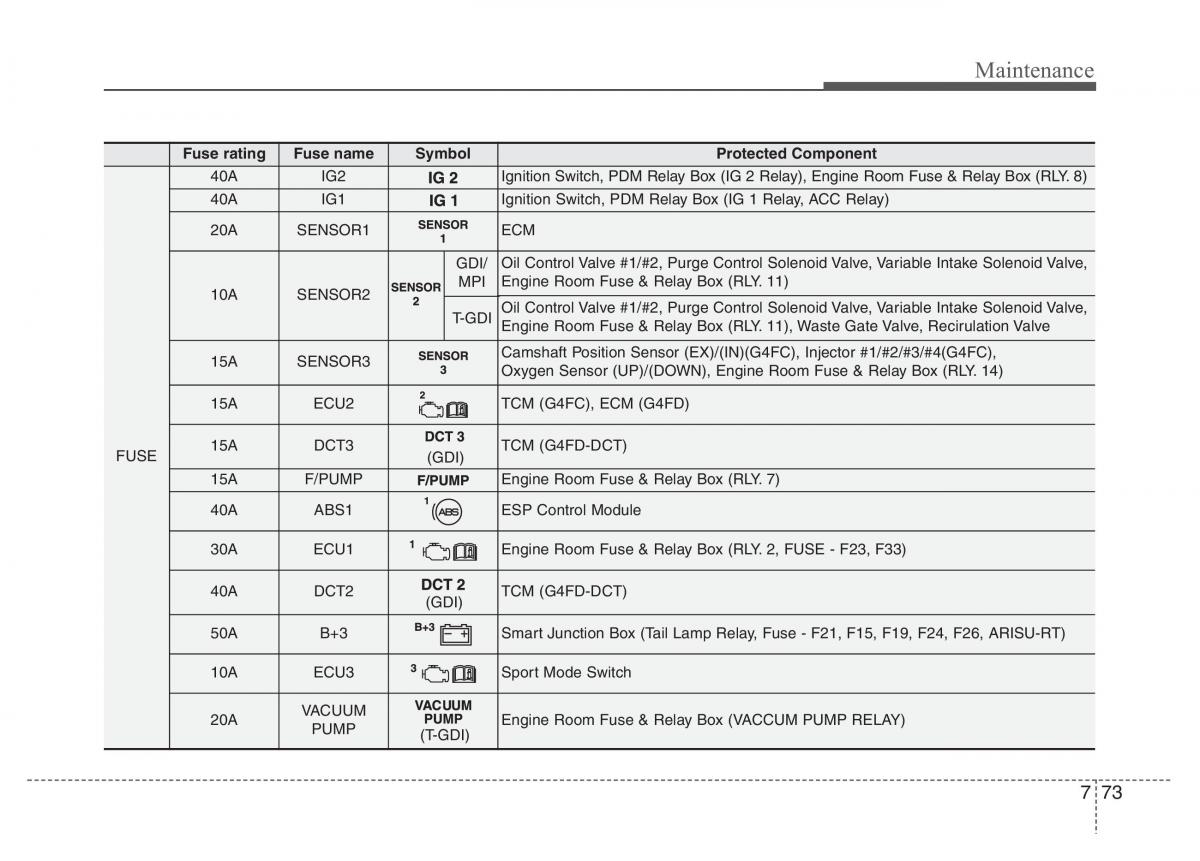

Maintenance
Fuse ratingFuse nameSymbol Protected Component
40A IG2 Ignition Switch, PDM Relay Box (IG 2 Relay), Engine Room Fuse & Relay Box (RLY. 8)
40A IG1 Ignition Switch, PDM Relay Box (IG 1 Relay, ACC Relay)
20A SENSOR1 ECM
GDI/ Oil Control Valve #1/#2, Purge Control Solenoid Valve, Variable Intake Solenoid Valve,
10A SENSOR2 MPI Engine Room Fuse & Relay Box (RLY.11)
T-GDI Oil Control Valve #1/#2, Purge Control Solenoid Valve, Variable Intake Solenoid Valve,
Engine Room Fuse & Relay Box (RLY.11), Waste Gate Valve, Recirulation Valve
15A SENSOR3 Camshaft Position Sensor (EX)/(IN)(G4FC), Injector #1/#2/#3/#4(G4FC),
Oxygen Sensor (UP)/(DOWN), Engine Room Fuse & Relay Box (RLY.14)
15A ECU2 TCM (G4FC), ECM (G4FD)
FUSE 15A DCT3 (GDI)TCM (G4FD-DCT)
15A F/PUMP Engine Room Fuse & Relay Box (RLY.7)
40A ABS1 ESP Control Module
30A ECU1 Engine Room Fuse & Relay Box (RLY.2, FUSE - F23, F33)
40A DCT2 (GDI)TCM (G4FD-DCT)
50A B+3 Smart Junction Box (Tail Lamp Relay, Fuse - F21, F15, F19, F24, F26, ARISU-RT)
10A ECU3 Sport Mode Switch
20A VACUUM Engine Room Fuse & Relay Box (VACCUM PUMP RELAY)
PUMP (T-GDI)
773
