Maintenance

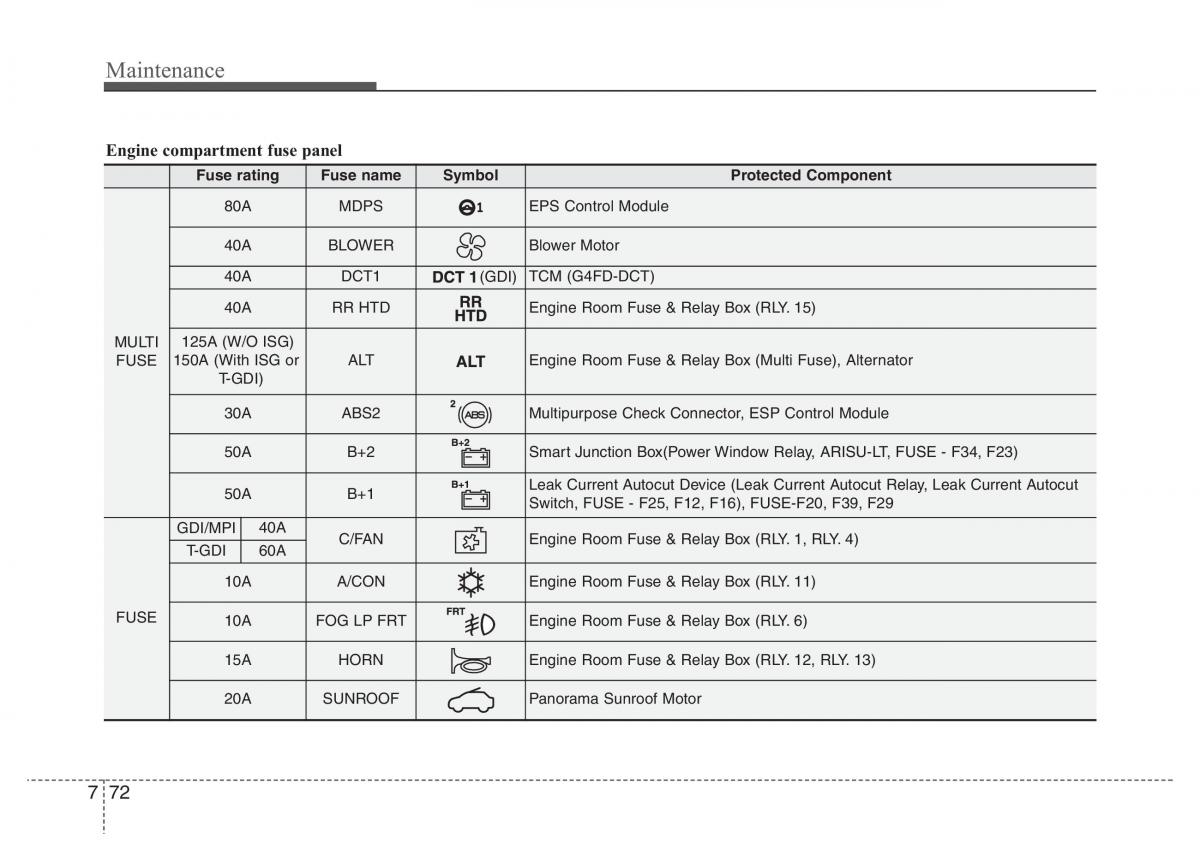

Engine compartment fuse panel
Fuse ratingFuse nameSymbol Protected Component
80A MDPS EPS Control Module
40A BLOWER Blower Motor
40A DCT1 (GDI) TCM (G4FD-DCT)
40A RR HTD Engine Room Fuse & Relay Box (RLY.15)
MULTI125A (W/O ISG)
FUSE 150A (With ISG or ALT Engine Room Fuse & Relay Box (Multi Fuse), Alternator
T-GDI)
30A ABS2 Multipurpose Check Connector, ESP Control Module
50A B+2 Smart Junction Box(Power Window Relay, ARISU-LT, FUSE - F34, F23)
50A B+1 Leak Current Autocut Device (Leak Current Autocut Relay, Leak Current Autocut
Switch, FUSE - F25, F12, F16), FUSE-F20, F39, F29
GDI/MPI40A C/FAN Engine Room Fuse & Relay Box (RLY.1, RLY.4)
T-GDI60A
10A A/CON Engine Room Fuse & Relay Box (RLY.11)
FUSE 10A FOG LP FRT Engine Room Fuse & Relay Box (RLY.6)
15A HORN Engine Room Fuse & Relay Box (RLY.12, RLY.13)
20A SUNROOF Panorama Sunroof Motor
7 72
