owners manual Hyundai i30

all ratings: 0 average rating: 5

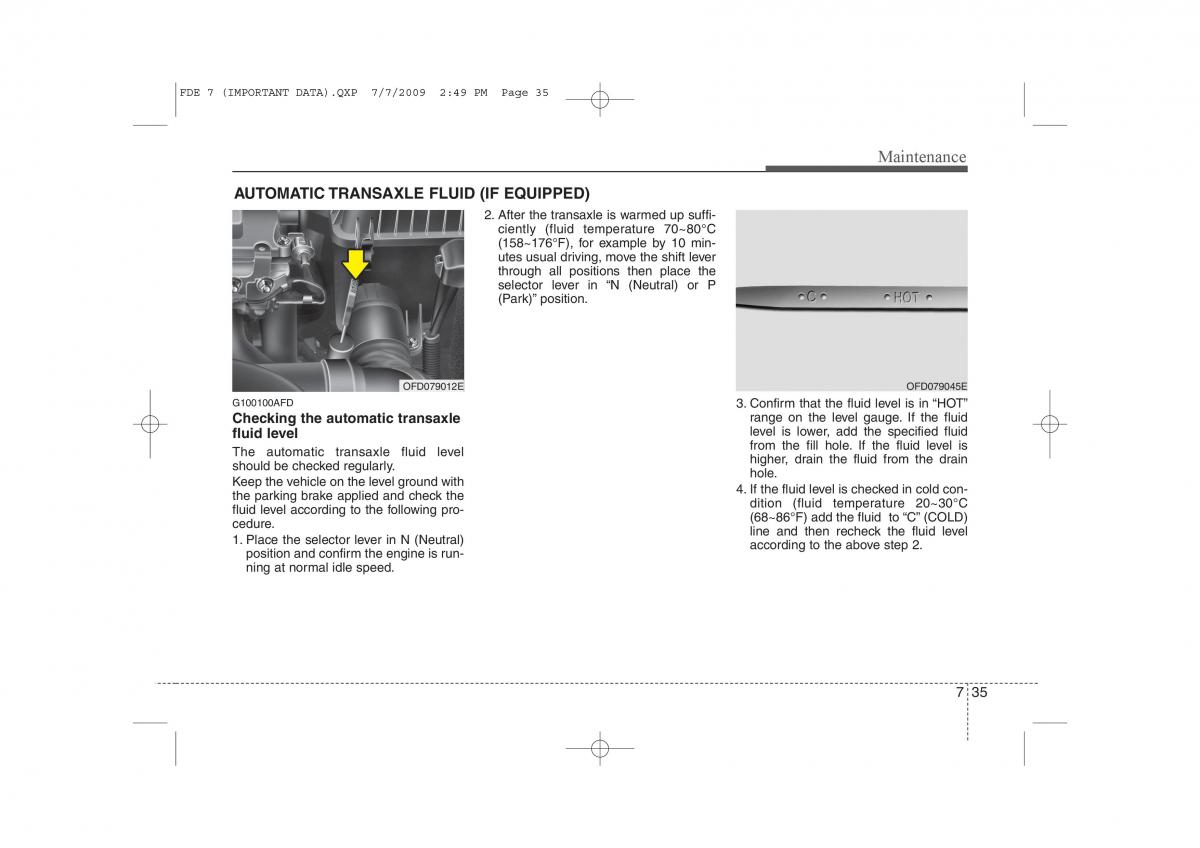

FDE 7 (IMPORTANT DATA).QXP 7/7/2009 2:49 PM Page 35 Maintenance AUTOMATIC TRANSAXLE FLUID (IF EQUIPPED) 2. After the transaxle is warmed up suffi- ciently (fluid temperature 70~80°C (158~176°F), for example by 10 min- utes usual driving, move the shift lever through all positions then place the selector lever in “N (Neutral) or P (Park)” position. OFD079012E OFD079045E G100100AFD 3. Confirm that the fluid level is in “HOT” Checking the automatic transaxle range on the level gauge. If the fluid fluid level level is lower, add the specified fluid The automatic transaxle fluid level from the fill hole. If the fluid level is should be checked regularly. higher, drain the fluid from the drain Keep the vehicle on the level ground with hole. the parking brake applied and check the 4. If the fluid level is checked in cold con- fluid level according to the following pro- dition (fluid temperature 20~30°C cedure. (68~86°F) add the fluid to “C” (COLD) 1. Place the selector lever in N (Neutral) line and then recheck the fluid level position and confirm the engine is run- according to the above step 2. ning at normal idle speed. 735
