owners manual KIA Ceed

owners manual KIA Ceed - year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012 - KIA Ceed I 1 manuale del proprietario IT

Document: pdf (21.02 MB) 410 pages
all ratings: 0 average rating: 5
text version of content this owner's manual page from owners manual to the vehicle KIA Ceed, year of production 2006 - 2012:

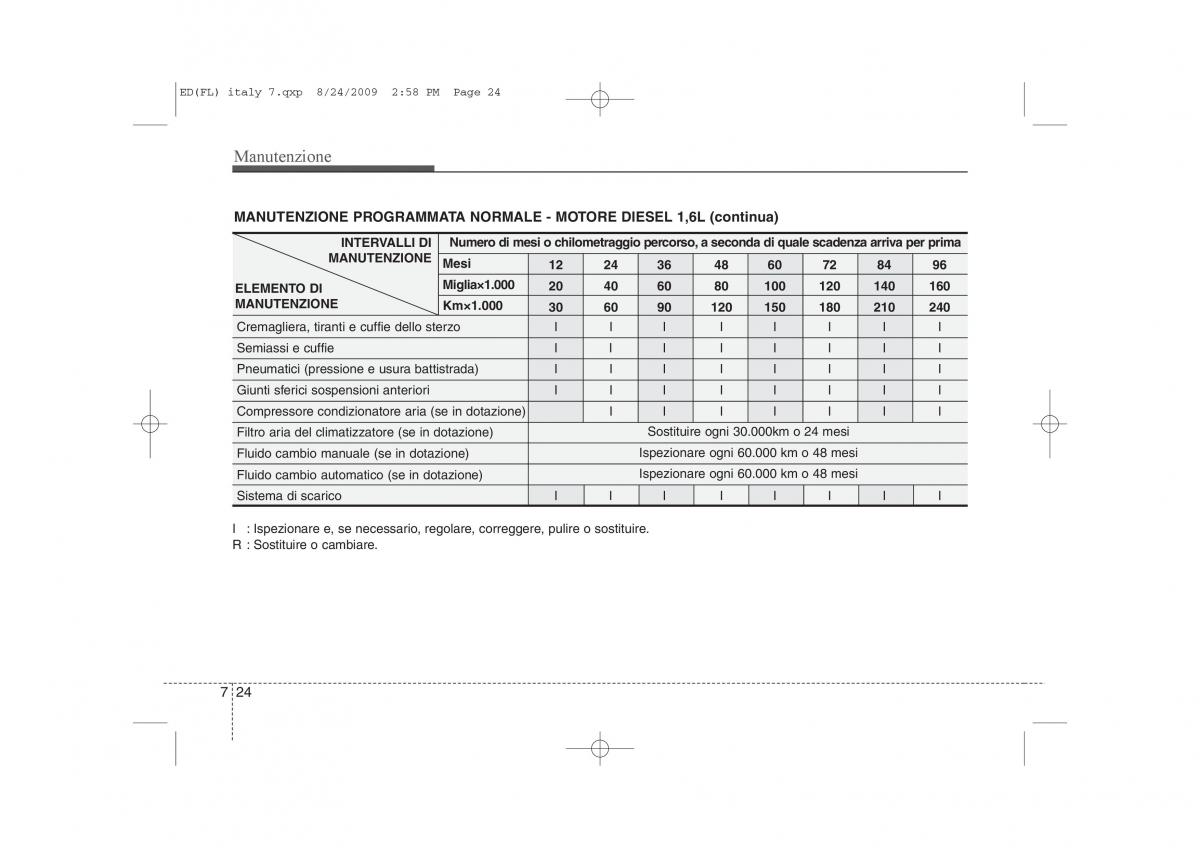

ED(FL) italy 7.qxp 8/24/2009 2:58 PM Page 24 Manutenzione MANUTENZIONE PROGRAMMATA NORMALE - MOTORE DIESEL1,6L (continua) INTERVALLI DINumero di mesi o chilometraggio percorso, a seconda di quale scadenza arriva per prima MANUTENZIONE Mesi 12 24 36 48 60 72 84 96 ELEMENTO DI Miglia×1.000 20 40 60 80 100 120 140 160 MANUTENZIONE Km×1.000 30 60 90 120 150 180 210 240 Cremagliera, tiranti e cuffie dello sterzoI I I I I I I I Semiassi e cuffie I I I I I I I I Pneumatici (pressione e usura battistrada)I I I I I I I I Giunti sferici sospensioni anteriori I I I I I I I I Compressore condizionatore aria (se in dotazione)I I I I I I I Filtro aria del climatizzatore (se in dotazione)Sostituire ogni 30.000km o 24 mesi Fluido cambio manuale (se in dotazione) Ispezionare ogni 60.000 km o 48 mesi Fluido cambio automatico (se in dotazione) Ispezionare ogni 60.000 km o 48 mesi Sistema di scarico I I I I I I I I I: Ispezionare e, se necessario, regolare, correggere, pulire o sostituire. R : Sostituire o cambiare. 7 24
