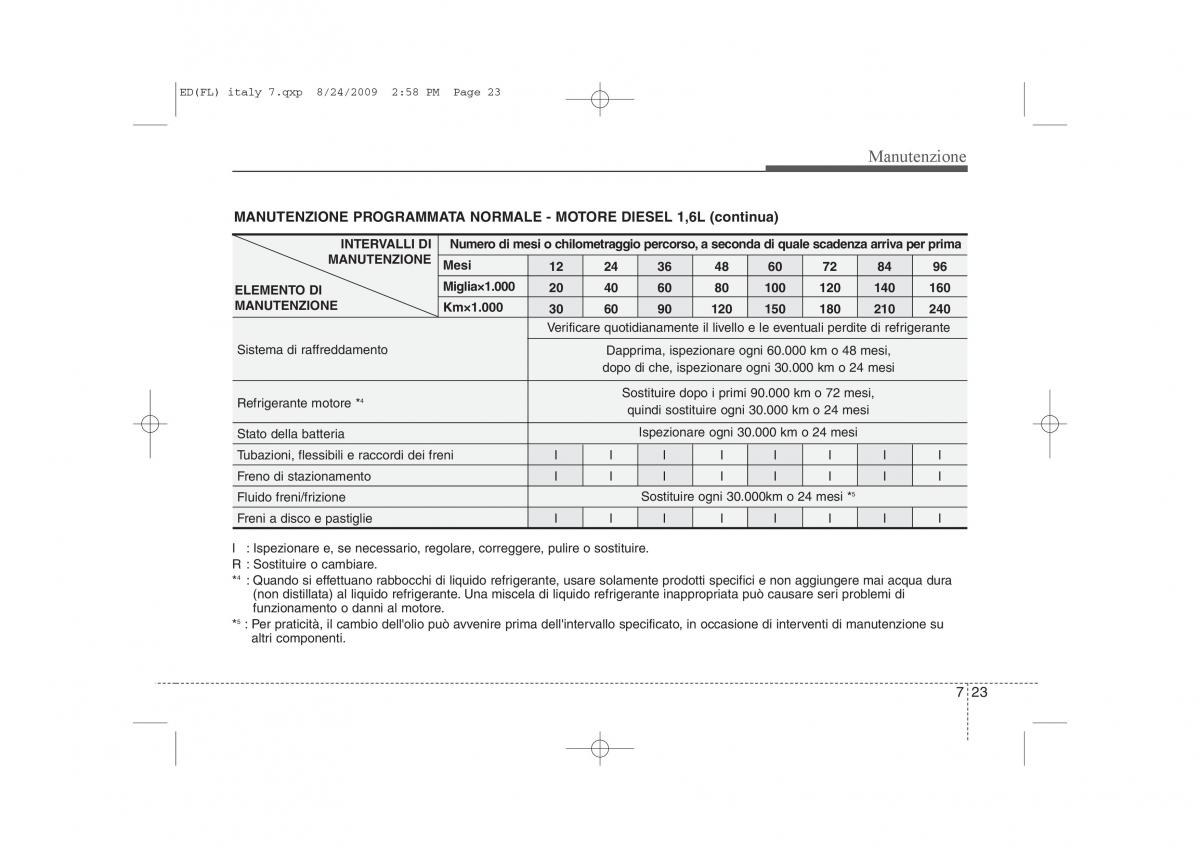

ED(FL) italy 7.qxp 8/24/2009 2:58 PM Page 23
Manutenzione
MANUTENZIONE PROGRAMMATA NORMALE - MOTORE DIESEL1,6L (continua)
INTERVALLI DI Numero di mesi o chilometraggio percorso, a seconda di quale scadenza arriva per prima
MANUTENZIONE Mesi 12 24 36 48 60 72 84 96
ELEMENTO DI Miglia×1.000 20 40 60 80 100 120 140 160
MANUTENZIONE Km×1.000 30 60 90 120 150 180 210 240
Verificare quotidianamente il livello e le eventuali perdite di refrigerante
Sistema di raffreddamento Dapprima, ispezionare ogni 60.000 km o 48 mesi,
dopo di che, ispezionare ogni 30.000 km o 24 mesi
Sostituire dopo i primi 90.000 km o 72 mesi,
4
Refrigerante motore * quindi sostituire ogni 30.000 km o 24 mesi
Stato della batteria Ispezionare ogni 30.000 km o 24 mesi
Tubazioni, flessibili e raccordi dei freni I I I I I I I I
Freno di stazionamento I I I I I I I I
5
Fluido freni/frizione Sostituire ogni 30.000km o 24 mesi *
Freni a disco e pastiglie I I I I I I I I
I : Ispezionare e, se necessario, regolare, correggere, pulire o sostituire.
R : Sostituire o cambiare.
4 : Quando si effettuano rabbocchi di liquido refrigerante, usare solamente prodotti specifici e non aggiungere mai acqua dura
*
(non distillata) al liquido refrigerante. Una miscela di liquido refrigerante inappropriata può causare seri problemi di
funzionamento o danni al motore.
5
* : Per praticità, il cambio dell'olio può avvenire prima dell'intervallo specificato, in occasione di interventi di manutenzione su
altri componenti.
723
