ED(FL) italy 7.qxp 8/24/2009 2:58 PM Page 27
Manutenzione

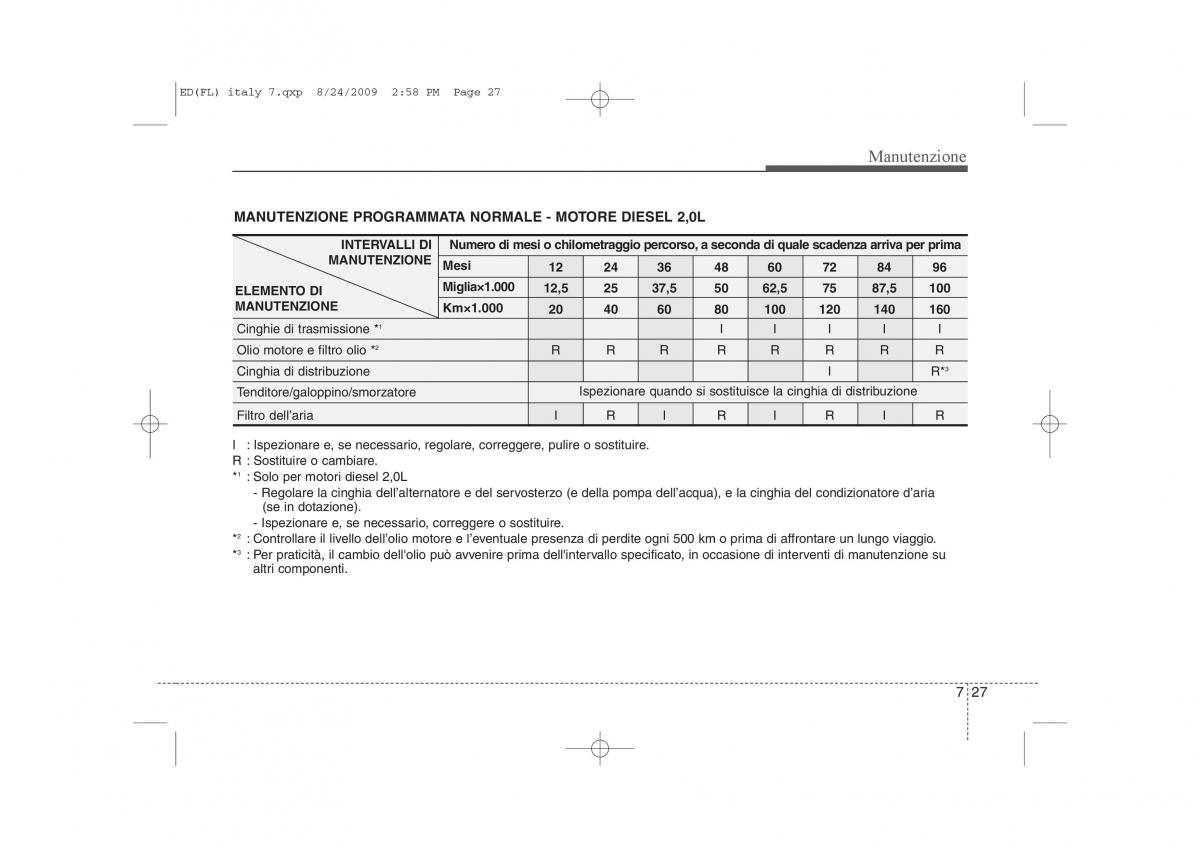

MANUTENZIONE PROGRAMMATA NORMALE - MOTORE DIESEL 2,0L
INTERVALLI DI Numero di mesi o chilometraggio percorso, a seconda di quale scadenza arriva per prima
MANUTENZIONE Mesi 12 24 36 48 60 72 84 96
ELEMENTO DI Miglia×1.000 12,5 25 37,5 50 62,5 75 87,5 100
MANUTENZIONE Km×1.000 20 40 60 80 100 120 140 160
1
Cinghie di trasmissione * IIIII
2
Olio motore e filtro olio * RRRRRRRR
3
Cinghia di distribuzione IR*
Tenditore/galoppino/smorzatore Ispezionare quando si sostituisce la cinghia di distribuzione
Filtro dell’aria I R I R I R I R
I : Ispezionare e, se necessario, regolare, correggere, pulire o sostituire.
R : Sostituire o cambiare.
1
* : Solo per motori diesel 2,0L
- Regolare la cinghia dell’alternatore e del servosterzo (e della pompa dell’acqua), e la cinghia del condizionatore d’aria
(se in dotazione).
- Ispezionare e, se necessario, correggere o sostituire.
2
* : Controllare il livello dell’olio motore e l’eventuale presenza di perdite ogni 500 km o prima di affrontare un lungo viaggio.
3 : Per praticità, il cambio dell'olio può avvenire prima dell'intervallo specificato, in occasione di interventi di manutenzione su
*
altri componenti.
727
