text version of content this owner's manual page from owners manual to the vehicle Lexus LFA, year of production 2010:

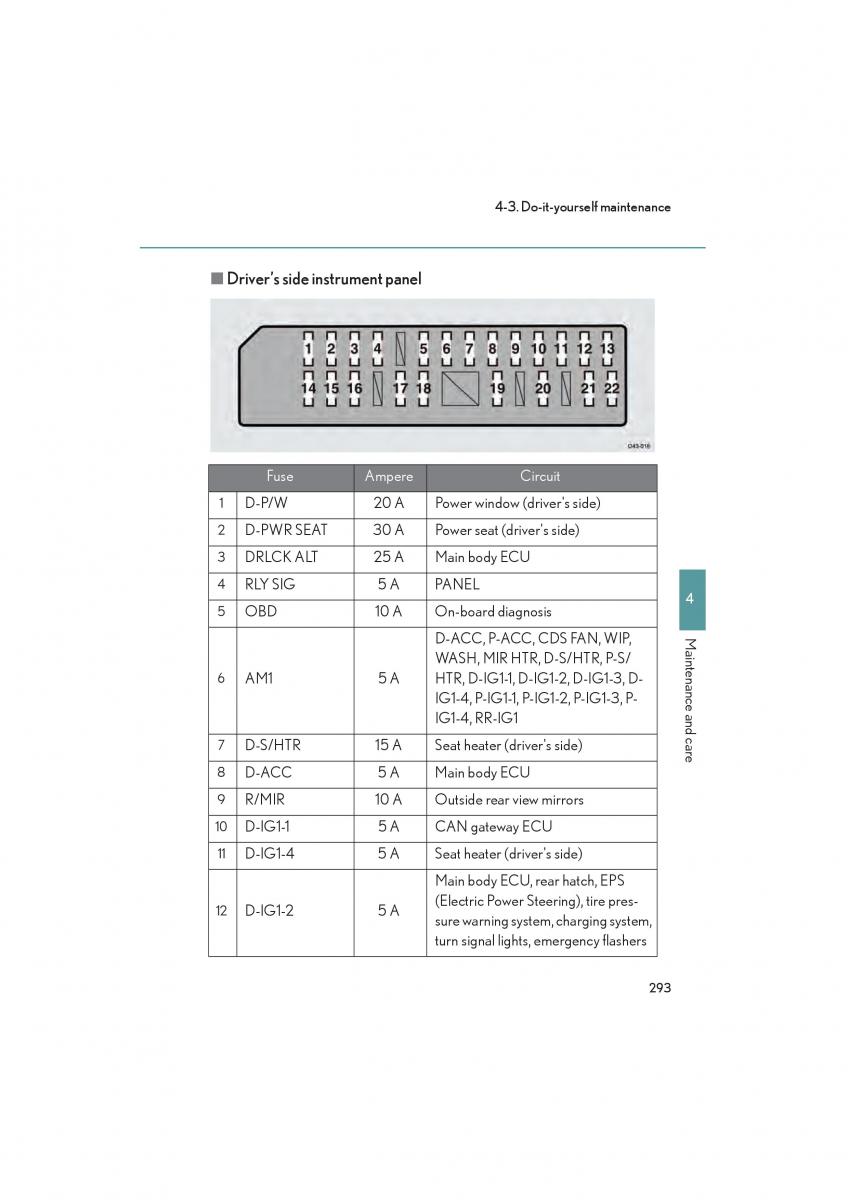

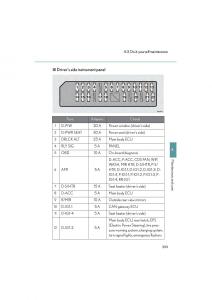

4-3. Do-it-yourself maintenance ■Driver’s side instrument panel Fuse Ampere Circuit 1 D-P/W 20 A Power window (driver's side) 2 D-PWR SEAT 30 A Power seat (driver's side) 3 DRLCK ALT 25 A Main body ECU 4 RLY SIG 5 A PANEL 4 5 OBD 10 A On-board diagnosis D-ACC, P-ACC, CDS FAN, WIP, M a i WASH, MIR HTR, D-S/HTR, P-S/n te 6 AM1 5 A HTR, D-IG1-1, D-IG1-2, D-IG1-3, D-na IG1-4, P-IG1-1, P-IG1-2, P-IG1-3, P-nc e a IG1-4, RR-IG1 n d 7 D-S/HTR 15 A Seat heater (driver's side) ca re 8 D-ACC 5 A Main body ECU 9 R/MIR 10 A Outside rear view mirrors 10D-IG1-1 5 A CAN gateway ECU 11D-IG1-4 5 A Seat heater (driver's side) Main body ECU, rear hatch, EPS 12D-IG1-2 5 A (Electric Power Steering), tire pres- sure warning system, charging system, turn signal lights, emergency flashers 293 LFA_U
