text version of content this owner's manual page from owners manual to the vehicle Lexus LFA, year of production 2010:

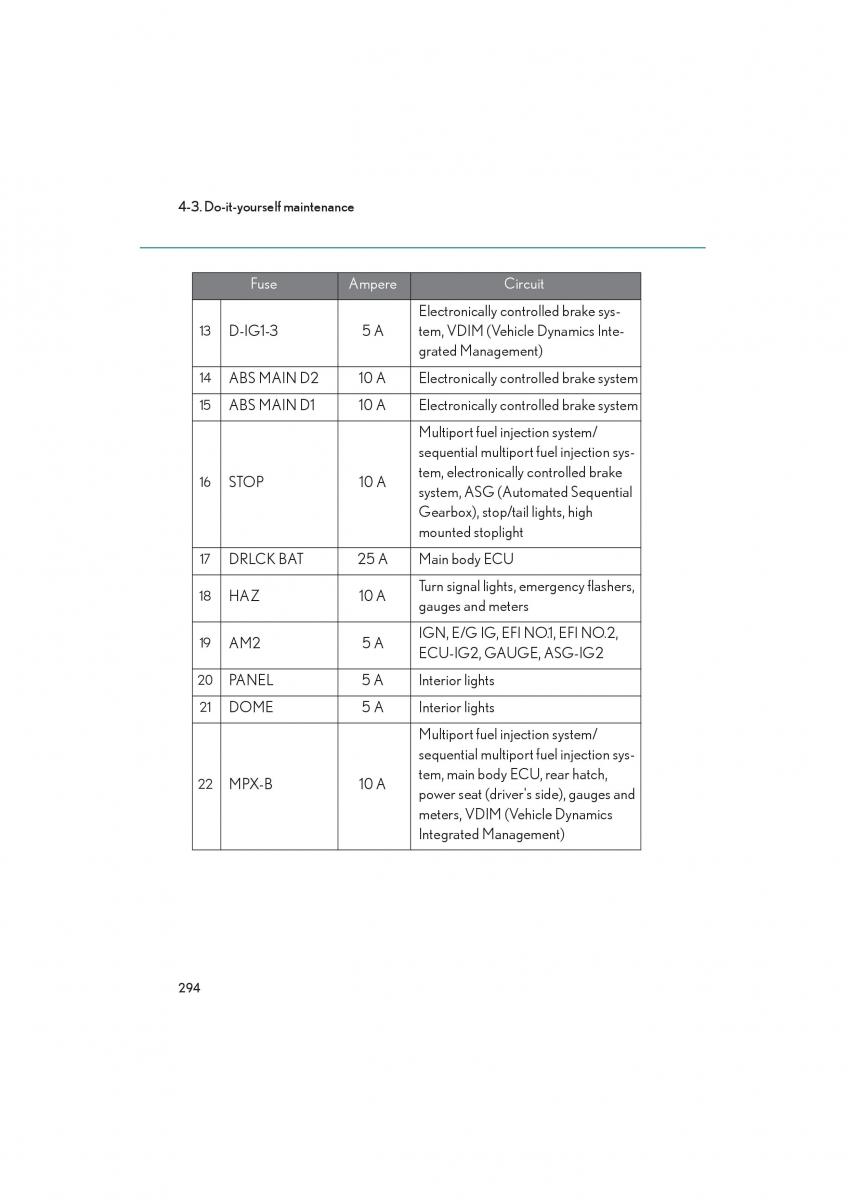

4-3. Do-it-yourself maintenance Fuse Ampere Circuit Electronically controlled brake sys- 13 D-IG1-3 5 A tem, VDIM (Vehicle Dynamics Inte- grated Management) 14 ABS MAIN D2 10 A Electronically controlled brake system 15 ABS MAIN D1 10 A Electronically controlled brake system Multiport fuel injection system/ sequential multiport fuel injection sys- 16 STOP 10 A tem, electronically controlled brake system, ASG (Automated Sequential Gearbox), stop/tail lights, high mounted stoplight 17 DRLCK BAT 25 A Main body ECU 18 HAZ 10 A Turn signal lights, emergency flashers, gauges and meters 19 AM2 5 A IGN, E/G IG, EFI NO.1, EFI NO.2, ECU-IG2, GAUGE, ASG-IG2 20 PANEL 5 A Interior lights 21 DOME 5 A Interior lights Multiport fuel injection system/ sequential multiport fuel injection sys- 22 MPX-B 10 A tem, main body ECU, rear hatch, power seat (driver's side), gauges and meters, VDIM (Vehicle Dynamics Integrated Management) 294 LFA_U
