owners manual Seat Leon

all ratings: 0 average rating: 5

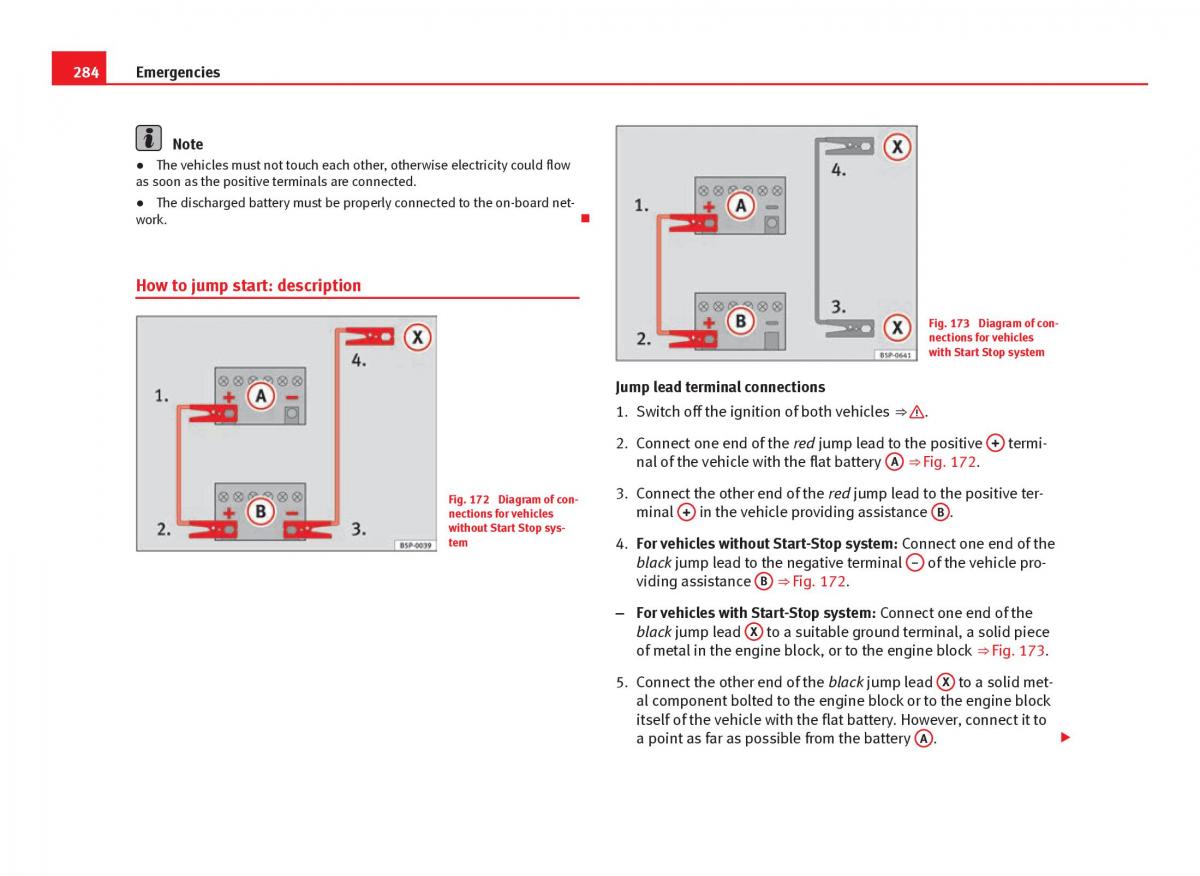

284 Emergencies Note ● The vehicles must not touch each other, otherwise electricity could flow as soon as the positive terminals are connected. ● The discharged battery must be properly connected to the on-board net-  work. How to jump start: description Fig. 173 Diagram of con- nections for vehicles with Start Stop system Jump lead terminal connections 1. Switch off the ignition of both vehicles ⇒ . 2. Connect one end of the red jump lead to the positive + termi- nal of the vehicle with the flat battery A ⇒ Fig. 172. 3. Connect the other end of the red jump lead to the positive ter- Fig. 172 Diagram of con- nections for vehicles minal + in the vehicle providing assistance B . without Start Stop sys- tem 4. For vehicles without Start-Stop system: Connect one end of the black jump lead to the negative terminal – of the vehicle pro- viding assistance B ⇒ Fig. 172. – For vehicles with Start-Stop system: Connect one end of the black jump lead X to a suitable ground terminal, a solid piece of metal in the engine block, or to the engine block ⇒ Fig. 173. 5. Connect the other end of the black jump lead X to a solid met- al component bolted to the engine block or to the engine block itself of the vehicle with the flat battery. However, connect it to A  a point as far as possible from the battery .
