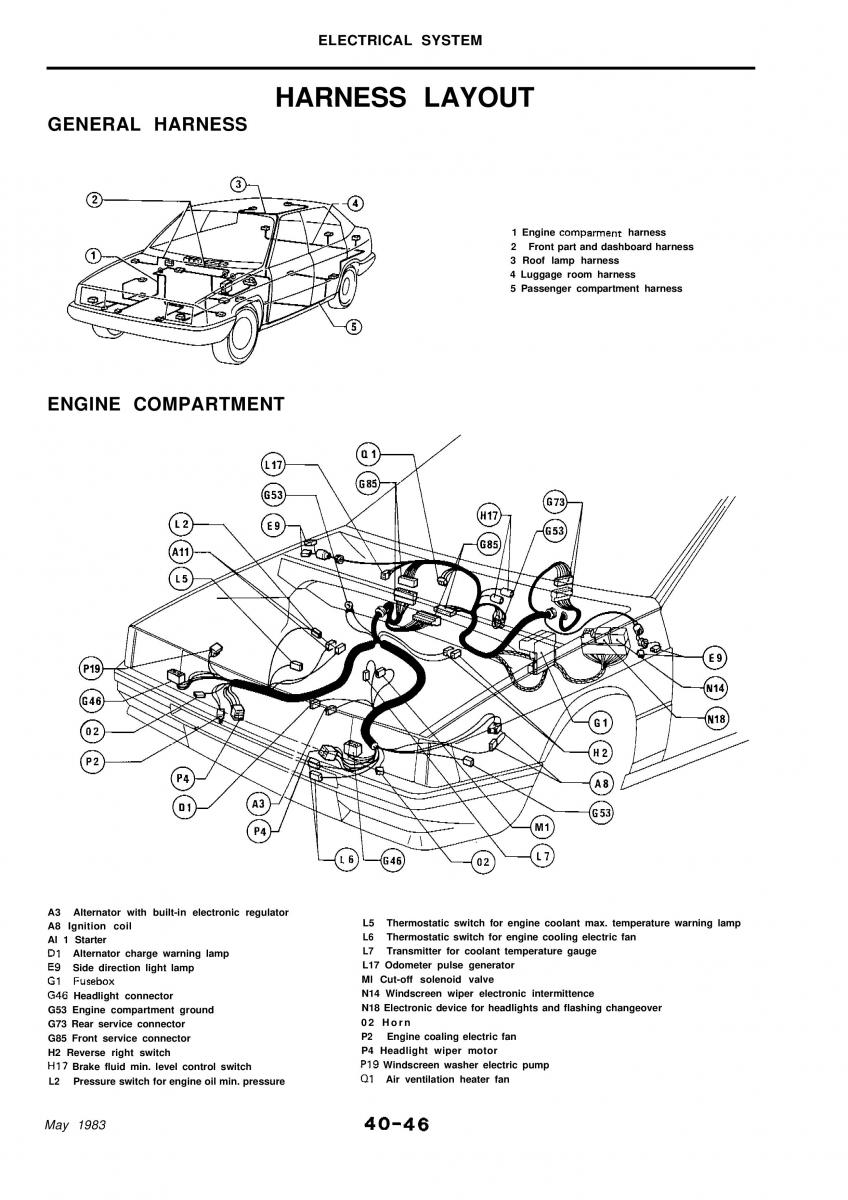

text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

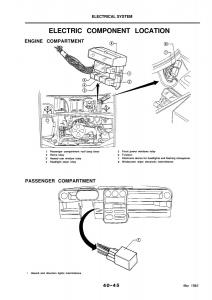

ELECTRICAL SYSTEM HARNESS LAYOUT GENERAL HARNESS 1 Enginecomparment harness 2 Front part and dashboard harness 3 Roof lamp harness 4 Luggage room harness 5 Passenger compartment harness ENGINE COMPARTMENT A3 Alternator with built-in electronic regulator A8 Ignition coil L5 Thermostatic switch for engine coolant max. temperature warning lamp Al 1 Starter L6 Thermostatic switch for engine cooling electric fan 01 Alternator charge warning lamp L7 Transmitter for coolant temperature gauge E9 Side direction light lamp L17 Odometer pulse generator Gl Fusebox Ml Cut-off solenoid valve G46 Headlight connector N14 Windscreen wiper electronic intermittence G53 Engine compartment ground N18 Electronic device for headlights and flashing changeover G73 Rear service connector 02 Horn G85 Front service connector P2 Engine coaling electric fan H2 Reverse right switch P4 Headlight wiper motor PI9 Windscreen washer electric pump HI7 Brake fluid min. level control switch L2 Pressure switch for engine oil min. pressure01Air ventilation heater fan May 1983 40-46
