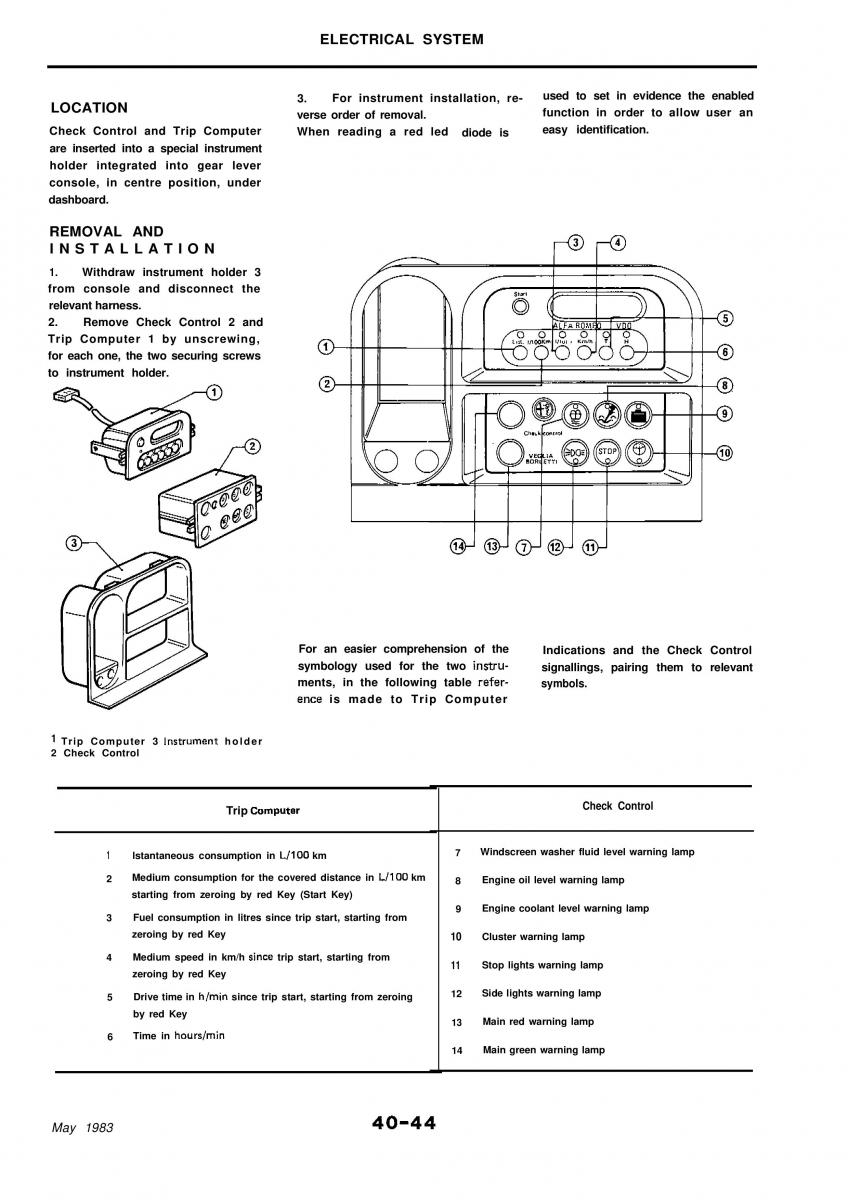

ELECTRICAL SYSTEM used to set in evidence the enabled LOCATION 3. For instrument installation, re- verse order of removal. function in order toallow user an easy identification. Check Control and Trip Computer When reading a red led diode is are inserted into a special instrument holder integrated into gear lever console, in centre position, under dashboard. REMOVAL AND INSTALLATION 1. Withdraw instrument holder 3 from console and disconnect the relevant harness. 2. Remove Check Control 2 and Trip Computer 1 by unscrewing, for each one, the two securing screws to instrument holder. For an easier comprehension of the Indications and the Check Control symbology used for the twoinstru- signallings, pairing them to relevant ments, in the following tablerefer- symbols. ence is made to Trip Computer 1 Trip Computer 3instrument holder 2 Check Control Trip Computer Check Control 1 lstantaneous consumption inL/100 km 7 Windscreen washer fluid level warning lamp 2 Medium consumption for the covered distance inL/100 km 8 Engine oil level warning lamp starting from zeroing by red Key (Start Key) 9 Engine coolant level warning lamp 3 Fuel consumption in litres since trip start, starting from zeroing by red Key 10 Cluster warning lamp 4 Medium speed in km/hsince trip start, starting from zeroing by red Key 11 Stop lights warning lamp 12 Side lights warning lamp 5 Drive time in h/min since trip start, starting from zeroing by red Key 13 Main red warning lamp 6 Time in hoursjmin 14 Main green warning lamp May 1983 40-44
