text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

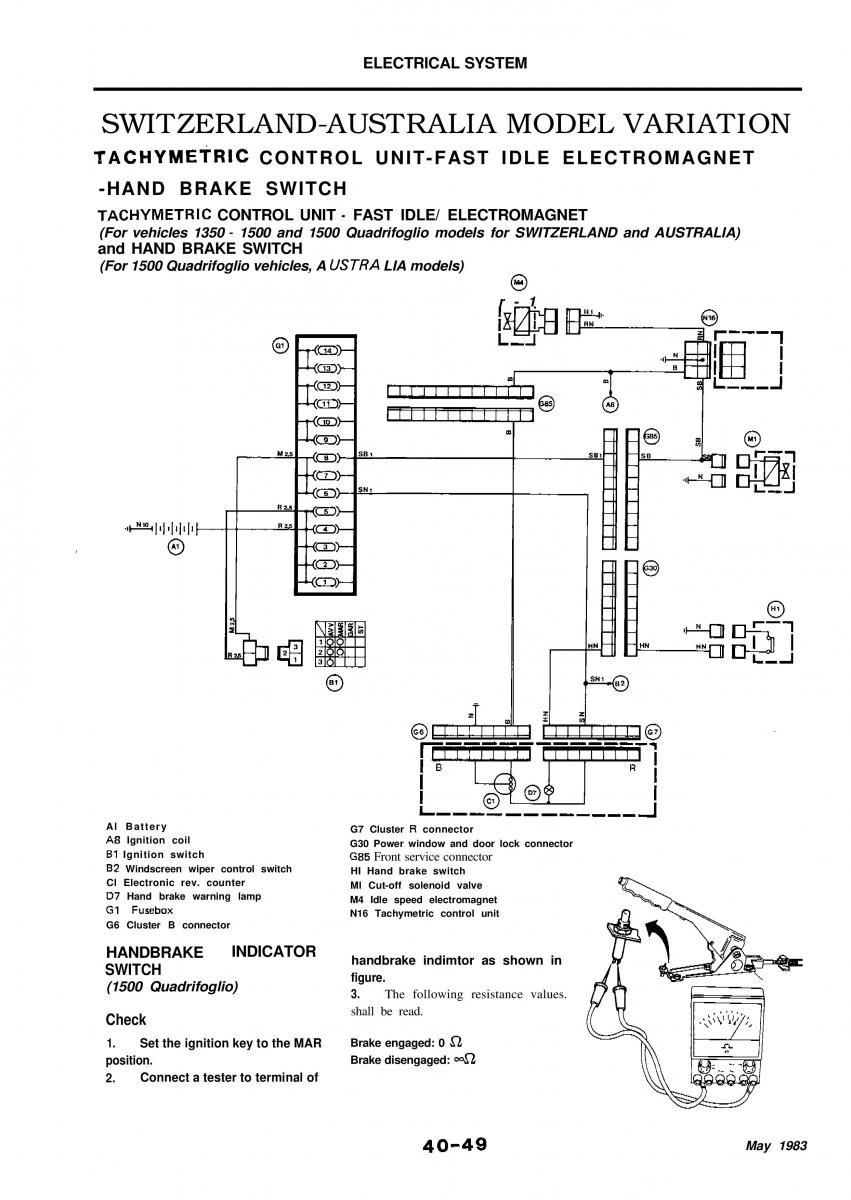

ELECTRICAL SYSTEM SWITZERLAND-AUSTRALIA MODEL VARIATION TACHYMEiRlC CONTROL UNIT-FAST IDLE ELECTROMAGNET -HAND BRAKE SWITCH TACHYMETRlC CONTROL UNIT- FAST IDLE/ ELECTROMAGNET (For vehicles 1350- 1500 and 1500 Quadrifoglio models for SWITZERLAND and AUSTRALIA) and HAND BRAKE SWITCH (For 1500 Quadrifoglio vehicles, A USTRA LIA models) 0 r-1 Al Battery G7 ClusterR connector A8 Ignition coil G30 Power window and door lock connector Bl Ignition switch G85 Front service connector B2 Windscreen wiper control switch HI Hand brake switch Cl Electronic rev. counter Ml Cut-off solenoid valve 07 Hand brake warning lamp M4 Idle speed electromagnet Gl Fusebox N16 Tachymetric control unit G6 Cluster B connector HANDBRAKE INDICATOR handbrake indimtor as shown in SWITCH figure. (1500 Quadrifoglio) 3. The following resistance values. Check shall be read. Brake engaged: 0 a 1. Set the ignition key to the MAR position. Brake disengaged: & 2. Connect a tester to terminal of 40-49 May 1983
