text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

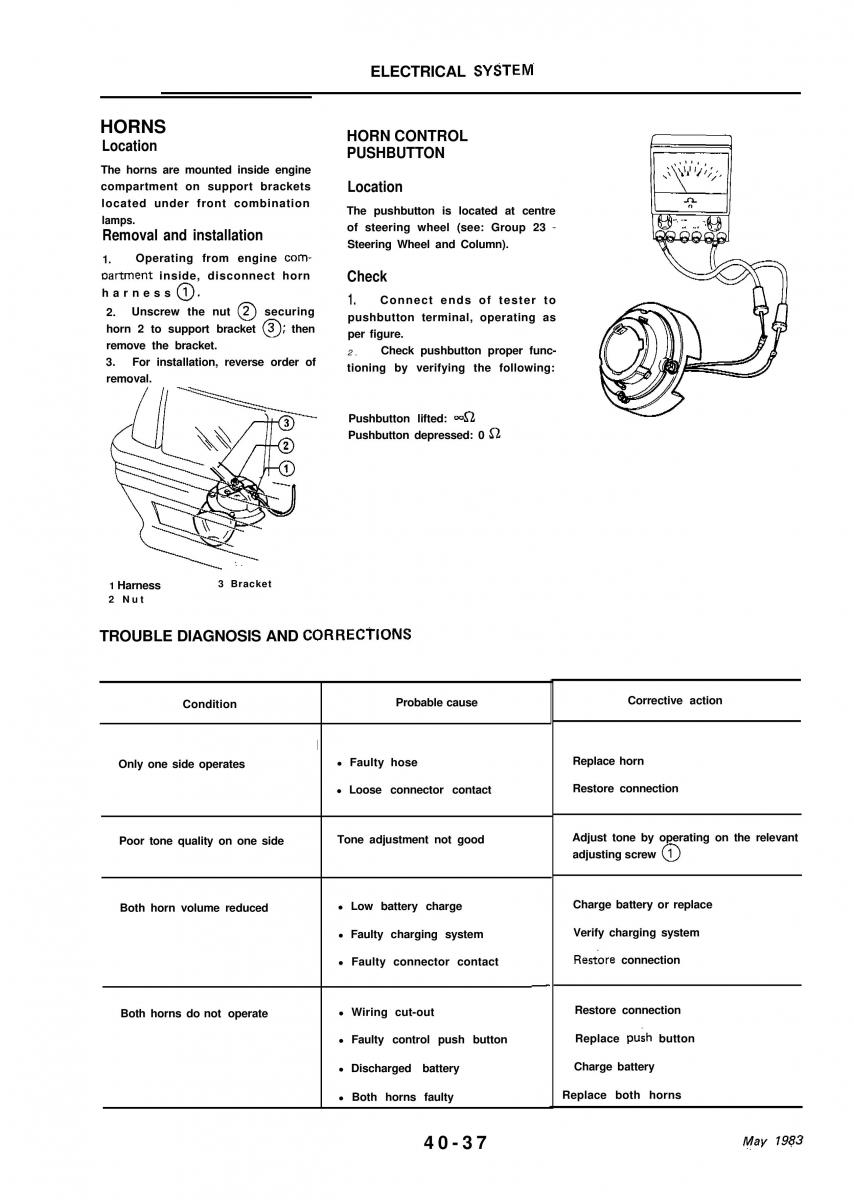

ELECTRICAL SYSTEM HORNS HORN CONTROL Location PUSHBUTTON Is=3 The horns are mounted inside engine compartment on support brackets Location located under front combination lamps. The pushbutton is located at centre Removal and installation of steering wheel (see: Group 23- Steering Wheel and Column). 1. Operating from enginecom- oartment inside, disconnect horn Check harness 0. 1. Connect ends of tester to 2. Unscrew the nut@ securing pushbutton terminal, operating as horn 2 to support bracket0; then remove the bracket. per figure. 2. Check pushbutton proper func- 3. For installation, reverse order of removal. tioning by verifying the following: Pushbutton lifted:-& Pushbutton depressed: 0 a 1 Harness 3 Bracket 2 Nut TROUBLE DIAGNOSIS AND CORRECttONS Condition Probable cause Corrective action I Only one side operates l Faulty hose Replace horn Restore connection l Loose connector contact Tone adjustment not good Adjust tone by operating on the relevant Poor tone quality on one side adjusting screw 0 Both horn volume reducedl Low battery charge Charge battery or replace l Faulty charging system Verify charging system Rest&e connection l Faulty connector contact - Both horns do not operate l Wiring cut-out Restore connection Replace push button l Faulty control push button l Discharged battery Charge battery l Both horns faulty Replace both horns 40-37 &fay 7983
