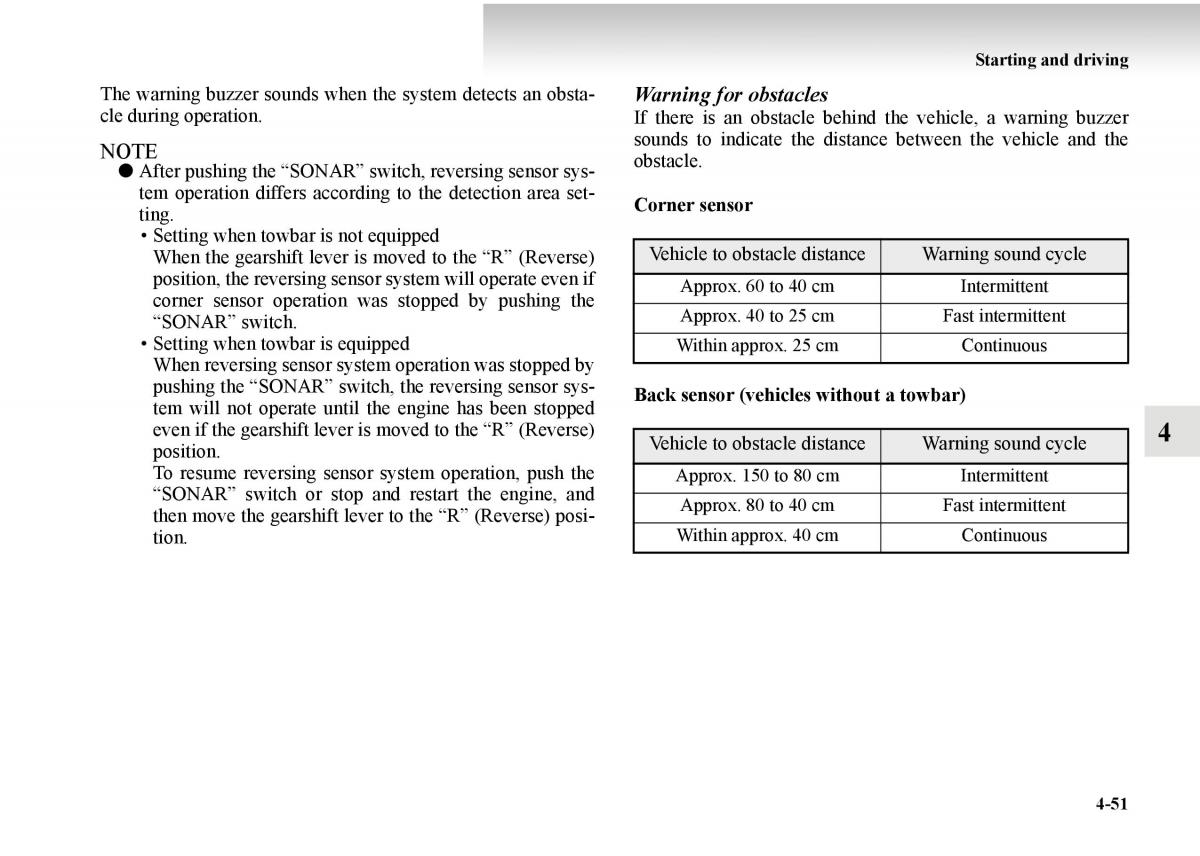

text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander, year of production 2006 - 2013:

Starting and driving The warning buzzer sounds when the system detects an obsta-Warning for obstacles cle during operation. If there is an obstacle behind the vehicle, a warning buzzer NOTE sounds to indicate the distce between an the vehicle and the ●After pushing the “SONAR” switch, reversing sensor sys- obstacle. tem operation differs according to the detection area set- Corner sensor ting. Setting when towbar is not equipped When the gearshift lever is moved to the “R” (Reverse)Vehicle to obstacle distance Warning sound cycle position, the reversing sensor system will operate even if Approx. 60 to 40 cm Intermittent corner sensor operation was stopped by pushing the “SONAR” switch. Approx. 40 to 25 cm Fast intermittent Setting when towbar is equipped Within approx. 25 cm Continuous When reversing sensor system operation was stopped by pushing the “SONAR” switch, the reversing sensor sys- Back sensor (vehicles without a towbar) tem will not operate until the engine has been stopped even if the gearshift lever is moved to the “R” (Reverse) 4 position. Vehicle to obstacle distance Warning sound cycle To resume reversing sensor system operation, push the Approx. 150 to 80 cm Intermittent “SONAR” switch or stop and restart the engine, and then move the gearshift lever to the “R” (Reverse) posi- Approx. 80 to 40 cm Fast intermittent tion. Within approx. 40 cm Continuous 4-51
