text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander, year of production 2006 - 2013:

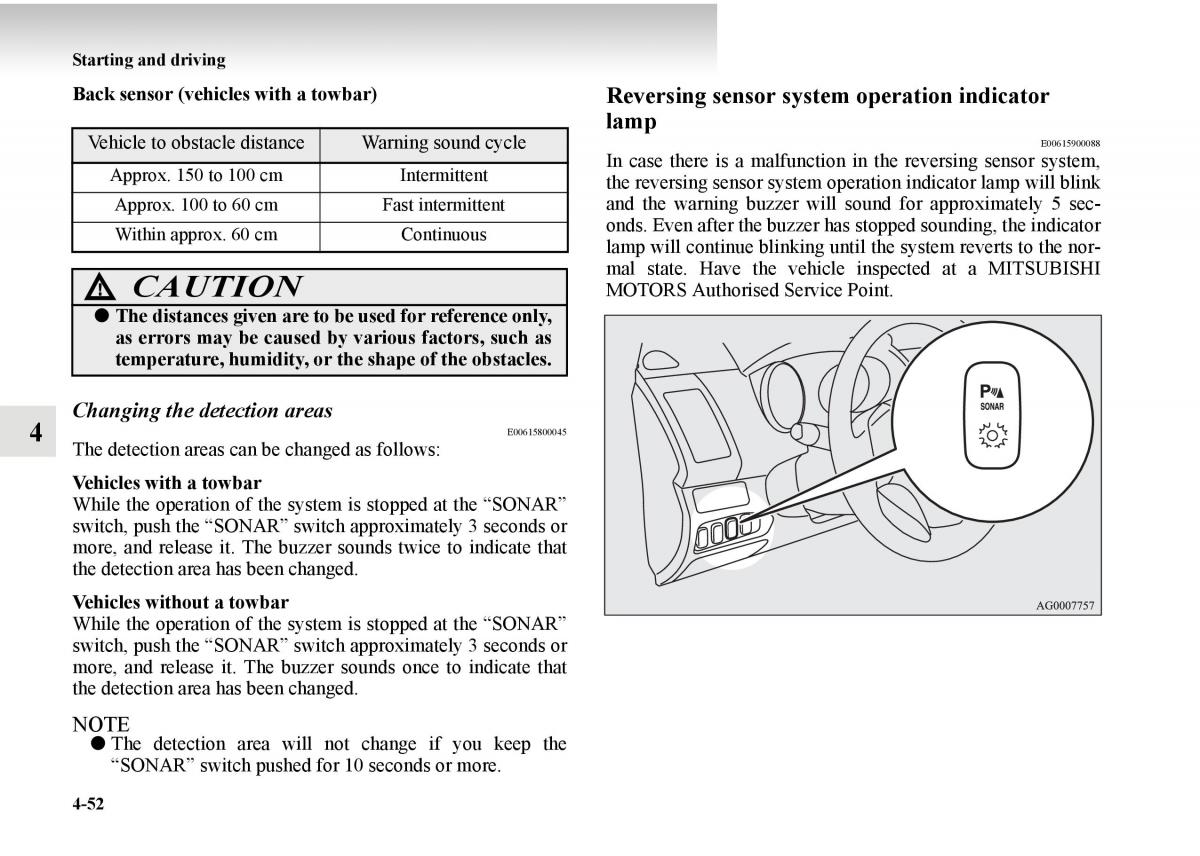

Starting and driving Back sensor (vehicles with a towbar) Reversing sensor system operation indicator lamp Vehicle to obstacle distance Warning sound cycle E00615900088 Approx. 150 to 100 cm Intermittent In case there is a malfunction in the reversing sensor system, the reversing sensor system operation indicator lamp will blink Approx. 100 to 60 cm Fast intermittent and the warning buzzer will sound for approximately 5 sec- Within approx. 60 cm Continuous onds. Even after the buzzer has stopped sounding, the indicator lamp will continue blinking until the system reverts to the nor- mal state. Have the vehicle inspected at a MITSUBISHI ! CAUTION MOTORS Authorised Service Point. ●The distances given are to be used for reference only, as errors may be caused various factors, by such as temperature, humidity, or the shape of the obstacles. Changing the detection areas 4 E00615800045 The detection areas can be changed as follows: Vehicles with a towbar While the operation of the system is stopped at the “SONAR” switch, push the “SONAR” switch approximately 3 seconds or more, and release it. The buzzer sounds twice to indicate that the detection area has been changed. Vehicles without a towbar While the operation of the system is stopped at the “SONAR” switch, push the “SONAR” switch approximately 3 seconds or more, and release it. The buzzer sounds once to indicate that the detection area has been changed. NOTE ●The detection area will not change if you keep the “SONAR” switch pushed for 10 seconds or more. 4-52
