text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander, year of production 2006 - 2013:

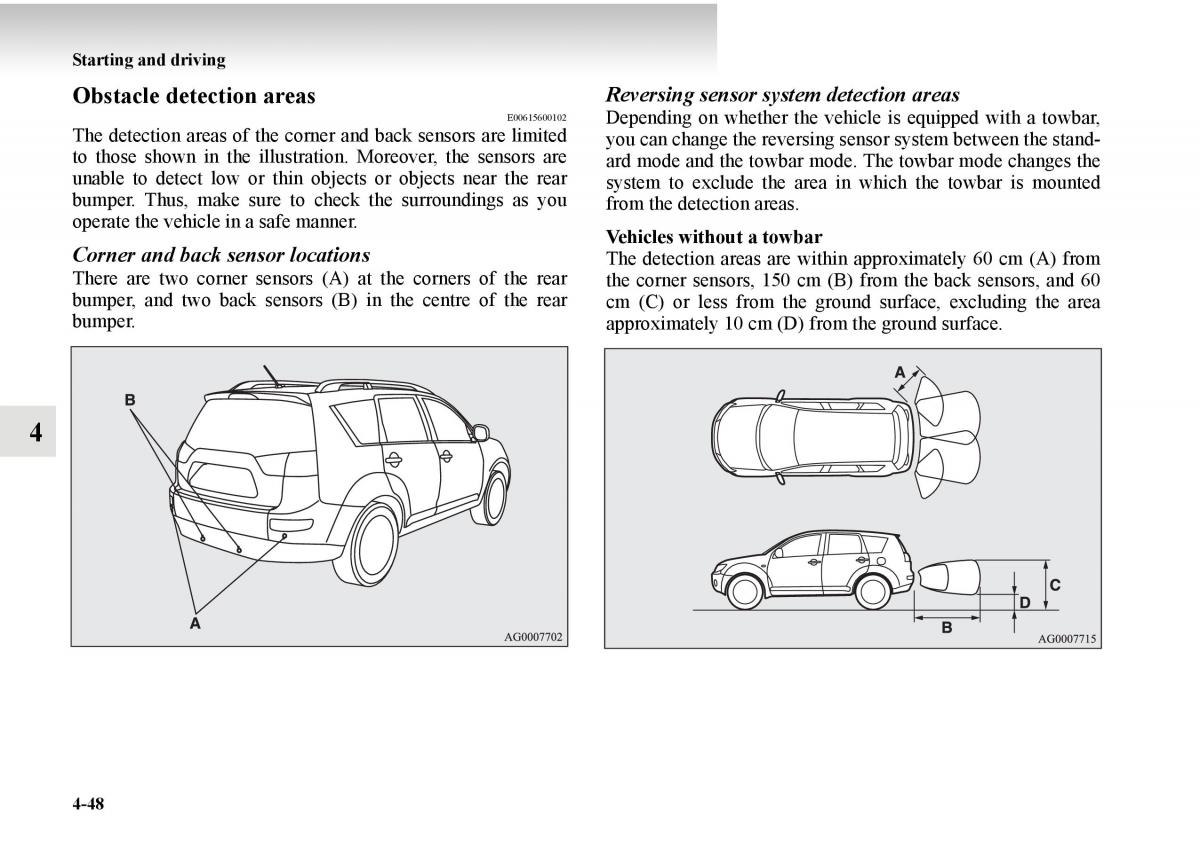

Starting and driving Obstacle detection areas Reversing sensor system detection areas E00615600102 Depending on whether the vehicle is equipped with a towbar, The detection areas of the corner and back sensors are limited you can change the reversing sensor system between the stand- to those shown in the illustration. Moreover, the sensors are ard mode and the towbar mode. The towbar mode changes the unable to detect low or thobjects or objectsin near the rear system to exclude the area in which the towbar is mounted bumper. Thus, make sure to check the surroundings as you operate the vehicle in a safe manner. from the detection areas. Corner and back sensor locations Vehicles without a towbar The detection areas are within approximately 60 cm (A) from There are two corner sensors (A) at the corners of the rear the corner sensors, 150 cm (B) from the back sensors, and 60 bumper, and two back sensors (B) in the centre of the rear cm (C) or less from the ground surface, excluding the area bumper. approximately 10 cm (D) from the ground surface. 4 4-48
