L

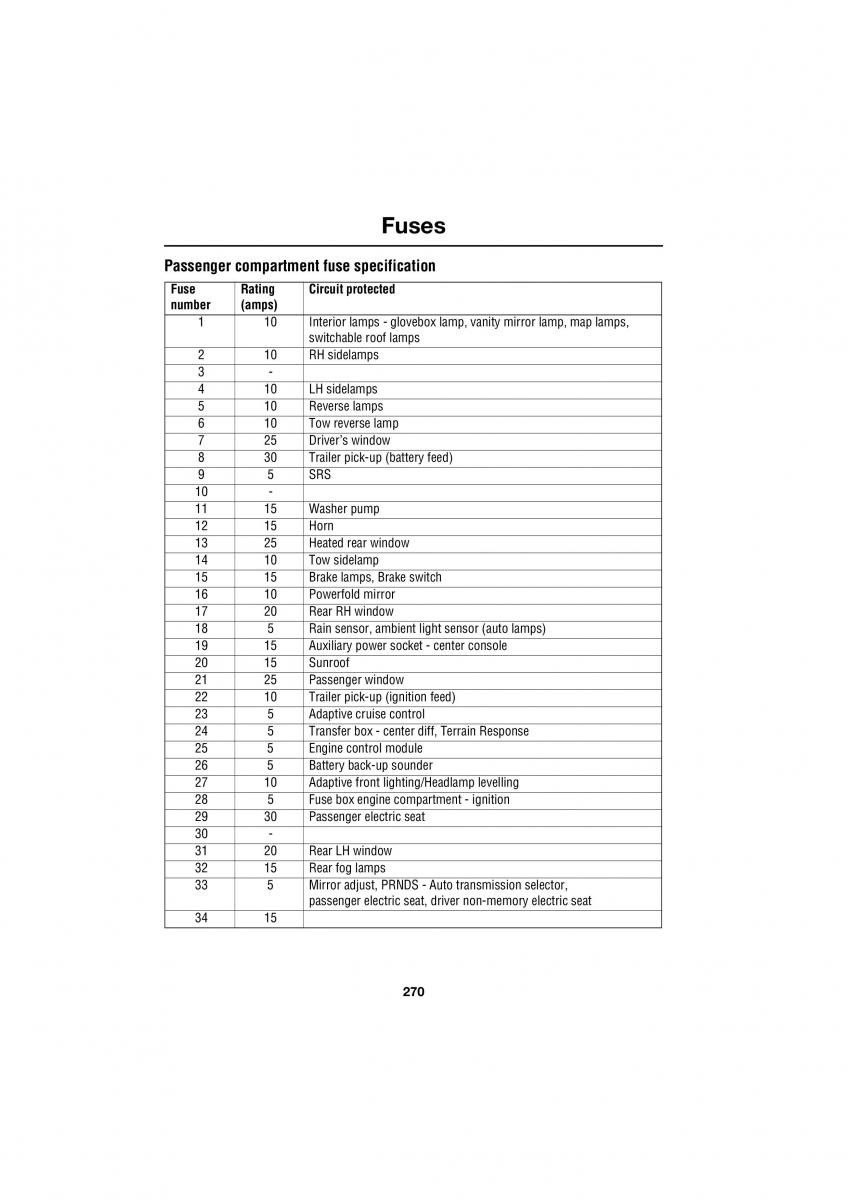

Fuses
Passenger compartment fuse specification
Fuse Rating Circuit protected
number(amps)
1 10 Interior lamps - glovebox lamp, vanity mirror lamp, map lamps,
switchable roof lamps
2 10 RH sidelamps
3-
4 10 LH sidelamps
5 10 Reverse lamps
6 10 Tow reverse lamp
7 25 Driver’s window
8 30 Trailer pick-up (battery feed)
95SRS
10 -
11 15 Washer pump
12 15 Horn
13 25 Heated rear window
14 10 Tow sidelamp
15 15 Brake lamps, Brake switch
16 10 Powerfold mirror
17 20 Rear RH window
18 5 Rain sensor, ambient light sensor (auto lamps)
19 15 Auxiliary power socket - center console
20 15 Sunroof
21 25 Passenger window
22 10 Trailer pick-up (ignition feed)
23 5 Adaptive cruise control
24 5 Transfer box - center diff, Terrain Response
25 5 Engine control module
26 5 Battery back-up sounder
27 10 Adaptive front lighting/Headlamp levelling
28 5 Fuse box engine compartment - ignition
29 30 Passenger electric seat
30 -
31 20 Rear LH window
32 15 Rear fog lamps
33 5 Mirror adjust, PRNDS - Auto transmission selector,
passenger electric seat, driver non-memory electric seat
34 15
270
