text version of content this owner's manual page from owners manual to the vehicle Land Rover Range Rover, year of production 2002 - 2012:
R

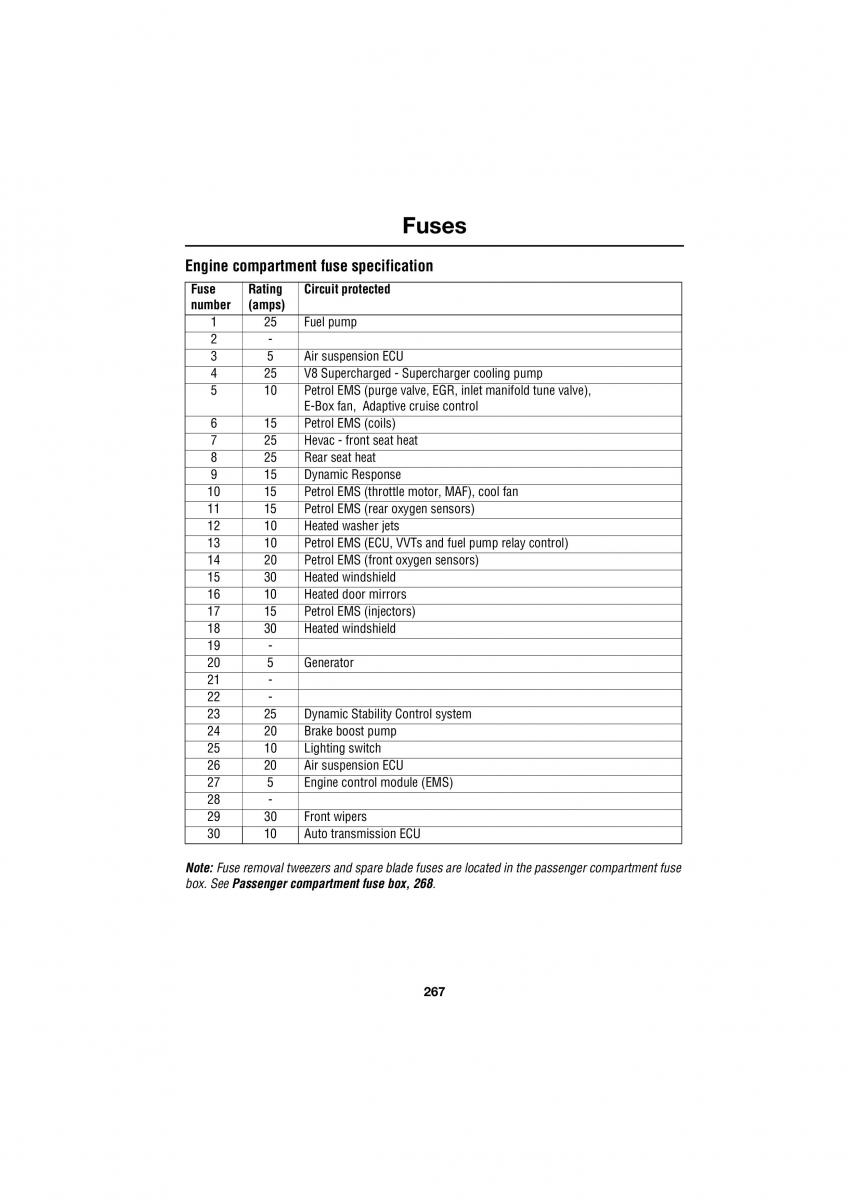

Fuses
Engine compartment fuse specification
Fuse Rating Circuit protected
number(amps)
125Fuel pump
2-
3 5 Air suspension ECU
4 25 V8 Supercharged - Supercharger cooling pump
5 10 Petrol EMS (purge valve, EGR, inlet manifold tune valve),
E-Box fan, Adaptive cruise control
6 15 Petrol EMS (coils)
7 25 Hevac - front seat heat
8 25 Rear seat heat
9 15 Dynamic Response
10 15 Petrol EMS (throttle motor, MAF), cool fan
11 15 Petrol EMS (rear oxygen sensors)
12 10 Heated washer jets
13 10 Petrol EMS (ECU, VVTs and fuel pump relay control)
14 20 Petrol EMS (front oxygen sensors)
15 30 Heated windshield
16 10 Heated door mirrors
17 15 Petrol EMS (injectors)
18 30 Heated windshield
19 -
20 5 Generator
21 -
22 -
23 25 Dynamic Stability Control system
24 20 Brake boost pump
25 10 Lighting switch
26 20 Air suspension ECU
27 5 Engine control module (EMS)
28 -
29 30 Front wipers
30 10 Auto transmission ECU
Note: Fuse removal tweezers and spare blade fuses are located in the passenger compartment fuse
box. See Passenger compartment fuse box, 268.
267
