L

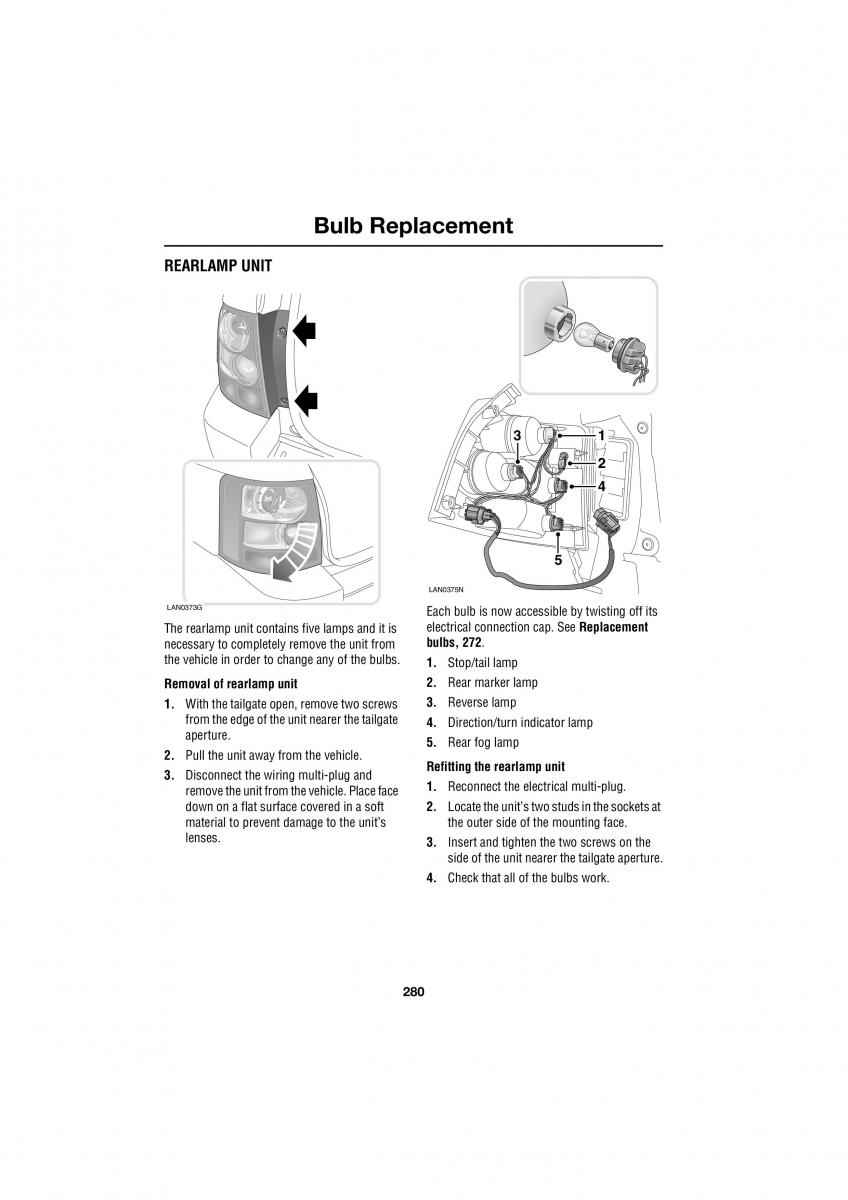

Bulb Replacement
REARLAMP UNIT
3 1
2
4
5
LAN0375N
LAN0373G Each bulb is now accessible by twisting off its
The rearlamp unit contains five lamps and it is electrical connection cap. See Replacement
necessary to completely remove the unit from bulbs, 272.
the vehicle in order to change any of the bulbs.1. Stop/tail lamp
Removal of rearlamp unit 2. Rear marker lamp
1. With the tailgate open, remove two screws 3. Reverse lamp
from the edge of the unit nearer the tailgate 4.Direction/turn indicator lamp
aperture. 5. Rear fog lamp
2. Pull the unit away from the vehicle. Refitting the rearlamp unit
3. Disconnect the wiring multi-plug and 1. Reconnect the electrical multi-plug.
remove the unit from the vehicle. Place face
down on a flat surface covered in a soft 2. Locate the unit’s two studs in the sockets at
material to prevent damage to the unit’s the outer side of the mounting face.
lenses. 3. Insert and tighten the two screws on the
side of the unit nearer the tailgate aperture.
4. Check that all of the bulbs work.
280
