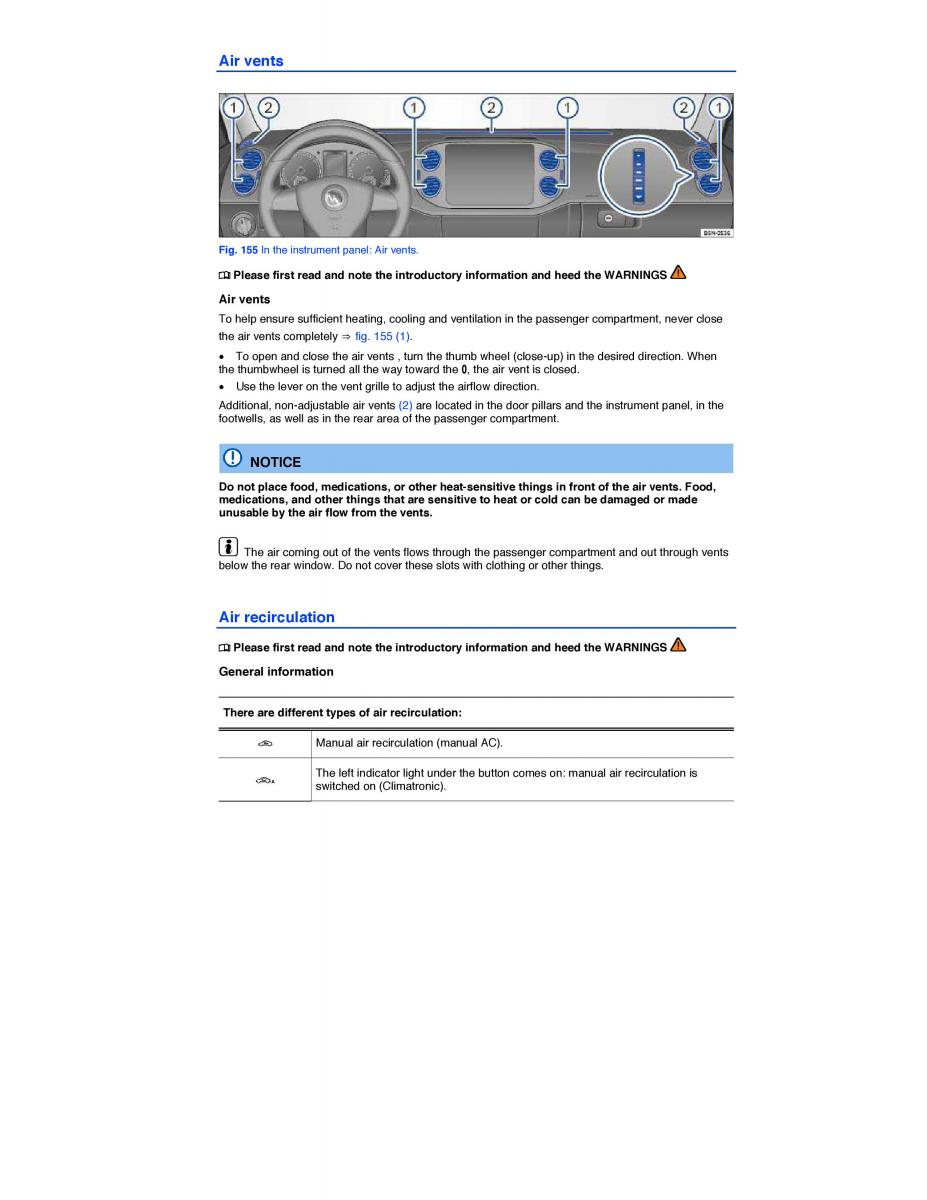

Air vents
Fig. 155 In the instrument panel: Air vents.
¤ Please first read and note the introductory information and heed the WARNINGS
Air vents
To help ensure sufficient heating, cooling and ventilation in the passenger compartment, never close
the air vents completely ⇒ fig. 155 (1).
x To open and close the air vents , turn the thumb wheel (close-up) in the desired direction. When
the thumbwheel is turned all the way toward the /, the air vent is closed.
x Use the lever on the vent grille to adjust the airflow direction.
Additional, non-adjustable air vents (2) are located in the door pillars and the instrument panel, in the
footwells, as well as in the rear area of the passenger compartment.
NOTICE
Do not place food, medications, or other heat-sensitive things in front of the air vents. Food,
medications, and other things that are sensitive to heat or cold can be damaged or made
unusable by the air flow from the vents.
The air coming out of the vents flows through the passenger compartment and out through vents
below the rear window. Do not cover these slots with clothing or other things.
Air recirculation
¤ Please first read and note the introductory information and heed the WARNINGS
General information
There are different types of air recirculation:
3 Manual air recirculation (manual AC).
The left indicator light under the button comes on: manual air recirculation is
switched on (Climatronic).
