owners manual VW Tiguan

all ratings: 0 average rating: 5

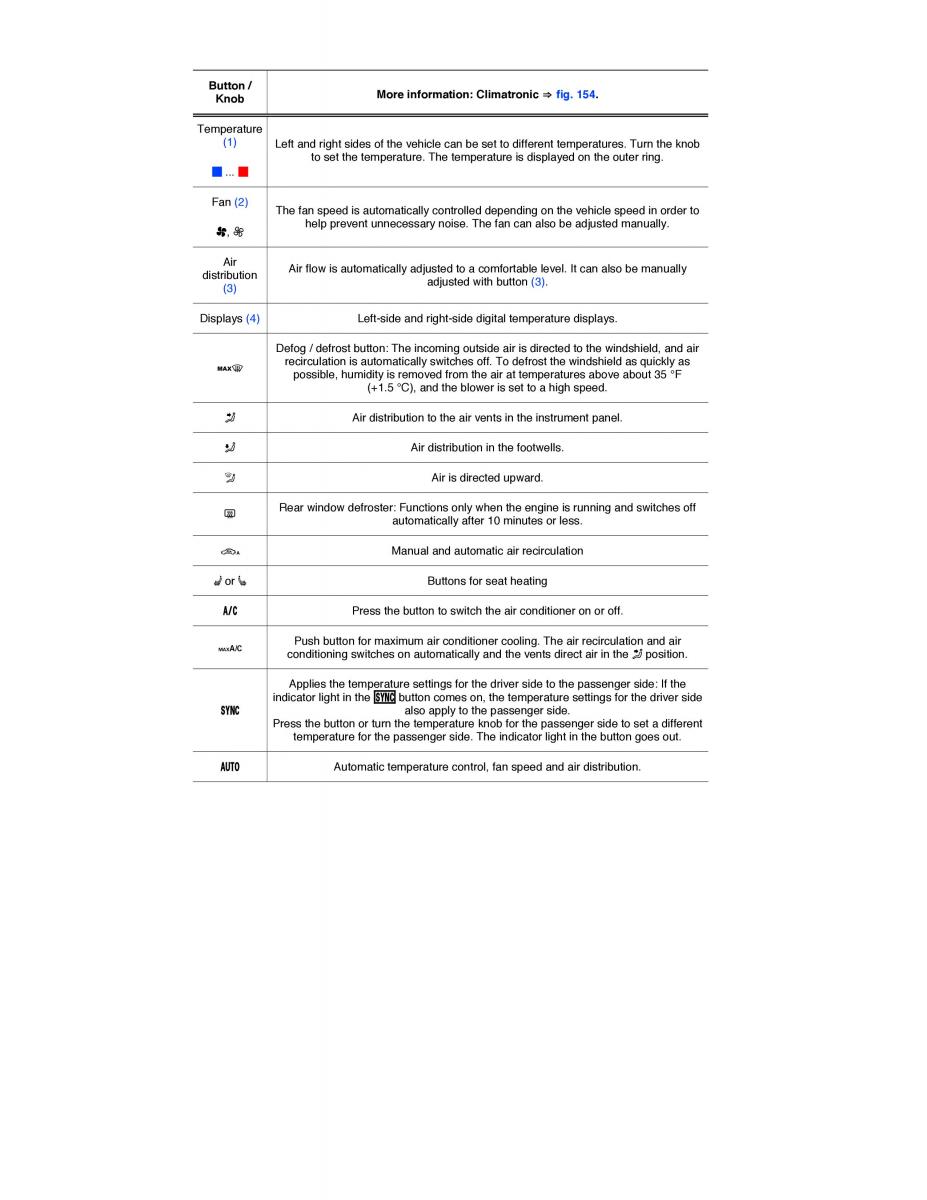

Button / More information: Climatronic ⇒ fig. 154. Knob Temperature (1) Left and right sides of the vehicle can be set to different temperatures. Turn the knob to set the temperature. The temperature is displayed on the outer ring.  .  Fan (2) The fan speed is automatically controlled depending on the vehicle speed in order to e, ® help prevent unnecessary noise. The fan can also be adjusted manually. Air Air flow is automatically adjusted to a comfortable level. It can also be manually distribution adjusted with button (3). (3) Displays (4) Left-side and right-side digital temperature displays. Defog / defrost button: The incoming outside air is directed to the windshield, and air  recirculation is automatically switches off. To defrost the windshield as quickly as possible, humidity is removed from the air at temperatures above about 35 °F (+1.5 °C), and the blower is set to a high speed. K Air distribution to the air vents in the instrument panel. L Air distribution in the footwells. Air is directed upward. = Rear window defroster: Functions only when the engine is running and switches off automatically after 10 minutes or less. ž Manual and automatic air recirculation A or [ Buttons for seat heating !‡# Press the button to switch the air conditioner on or off.  Push button for maximum air conditioner cooling. The air recirculation and air conditioning switches on automatically and the vents direct air in the K position. Applies the temperature settings for the driver side to the passenger side: If the 39.# indicator light in the 39.# button comes on, the temperature settings for the driver side also apply to the passenger side. Press the button or turn the temperature knob for the passenger side to set a different temperature for the passenger side. The indicator light in the button goes out. !54/ Automatic temperature control, fan speed and air distribution.
