Fuses
Fuses

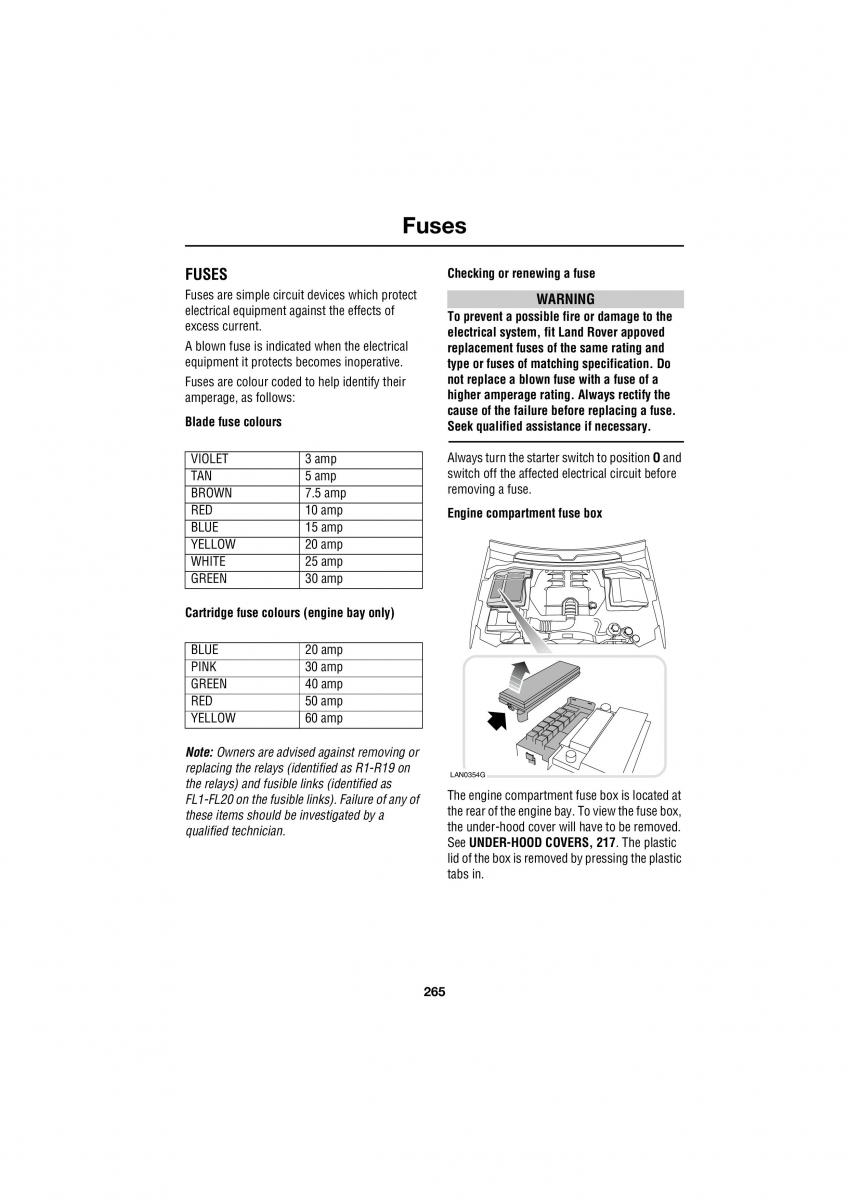

FUSES Checking or renewing a fuse
Fuses are simple circuit devices which protect WARNING
electrical equipment against the effects of To prevent a possible fire or damage to the
excess current. electrical system, fit Land Rover appoved
A blown fuse is indicated when the electrical replacement fuses of the same rating and
equipment it protects becomes inoperative. type or fuses of matching specification. Do
Fuses are colour coded to help identify their not replace a blown fuse with a fuse of a
amperage, as follows: higher amperage rating. Always rectify the
Blade fuse colours cause of the failure before replacing a fuse.
Seek qualified assistance if necessary.
VIOLET 3 amp Always turn the starter switch to position O and
TAN 5 amp switch off the affected electrical circuit before
BROWN 7.5 amp removing a fuse.
RED 10 amp Engine compartment fuse box
BLUE 15 amp
YELLOW 20 amp
WHITE 25 amp
GREEN 30 amp
Cartridge fuse colours (engine bay only)
BLUE 20 amp
PINK 30 amp
GREEN 40 amp
RED 50 amp
YELLOW 60 amp
Note: Owners are advised against removing or
replacing the relays (identified as R1-R19 on LAN0354G
the relays) and fusible links (identified as The engine compartment fu se box is located at
FL1-FL20 on the fusible links). Failure of any of the rear of the engine ba y. To view the fuse box,
these items should be investigated by a the under-hood cover will have to be removed.
qualified technician. See UNDER-HOOD COVERS, 217. The plastic
lid of the box is remove d by pressing the plastic
tabs in.
265
