text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

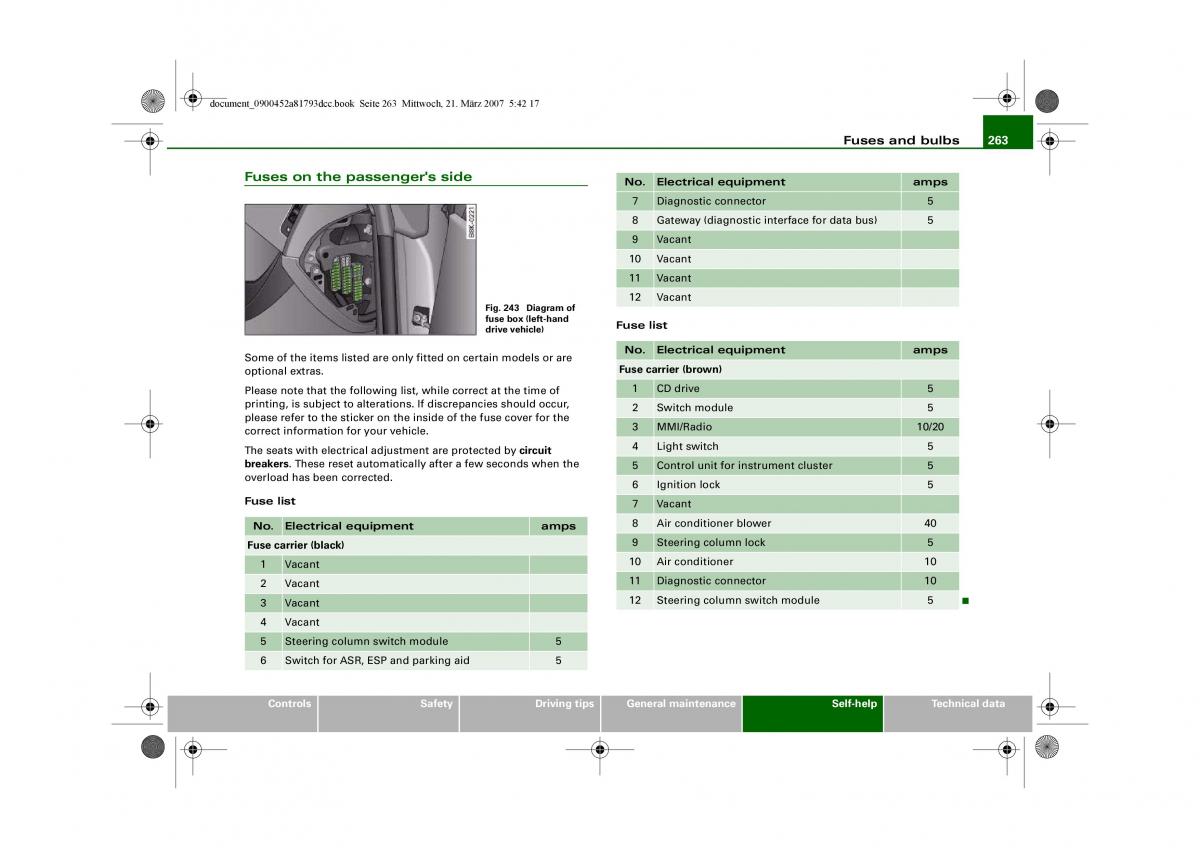

document_0900452a81793dcc.book Seite 263 Mittwoch, 21. März 2007 5:42 17 Fuses and bulbs 263 Fuses on the passenger's side No. Electrical equipment amps 7 Diagnostic connector 5 8 Gateway (diagnostic interface for data bus)5 9 Vacant 10 Vacant 11 Vacant 12 Vacant Fig. 243 Diagram of fuse box (left-hand Fuse list drive vehicle) Some of the items listed are only fitted on certain models or are No. Electrical equipment amps optional extras. Fuse carrier (brown) Please note that the following list, while correct at the time of 1CD drive 5 printing, is subject to alterations. If discrepancies should occur, 2Switch module 5 please refer to the sticker on the inside of the fuse cover for the 3MMI/Radio 10/20 correct information for your vehicle. The seats with electrical adjustment are protected by circuit 4Light switch 5 breakers. These reset automatically after a few seconds when the 5Control unit for instrument cluster5 overload has been corrected. 6 Ignition lock 5 Fuse list 7 Vacant No. Electrical equipment amps 8 Air conditioner blower 40 Fuse carrier (black) 9 Steering column lock 5 1 Vacant 10 Air conditioner 10 2 Vacant 11 Diagnostic connector 10 3 Vacant 12 Steering column switch module 5 4 Vacant 5 Steering column switch module 5 6 Switch for ASR, ESP and parking aid 5 Controls Safety Driving tips General maintenance Self-help Technical data
