text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

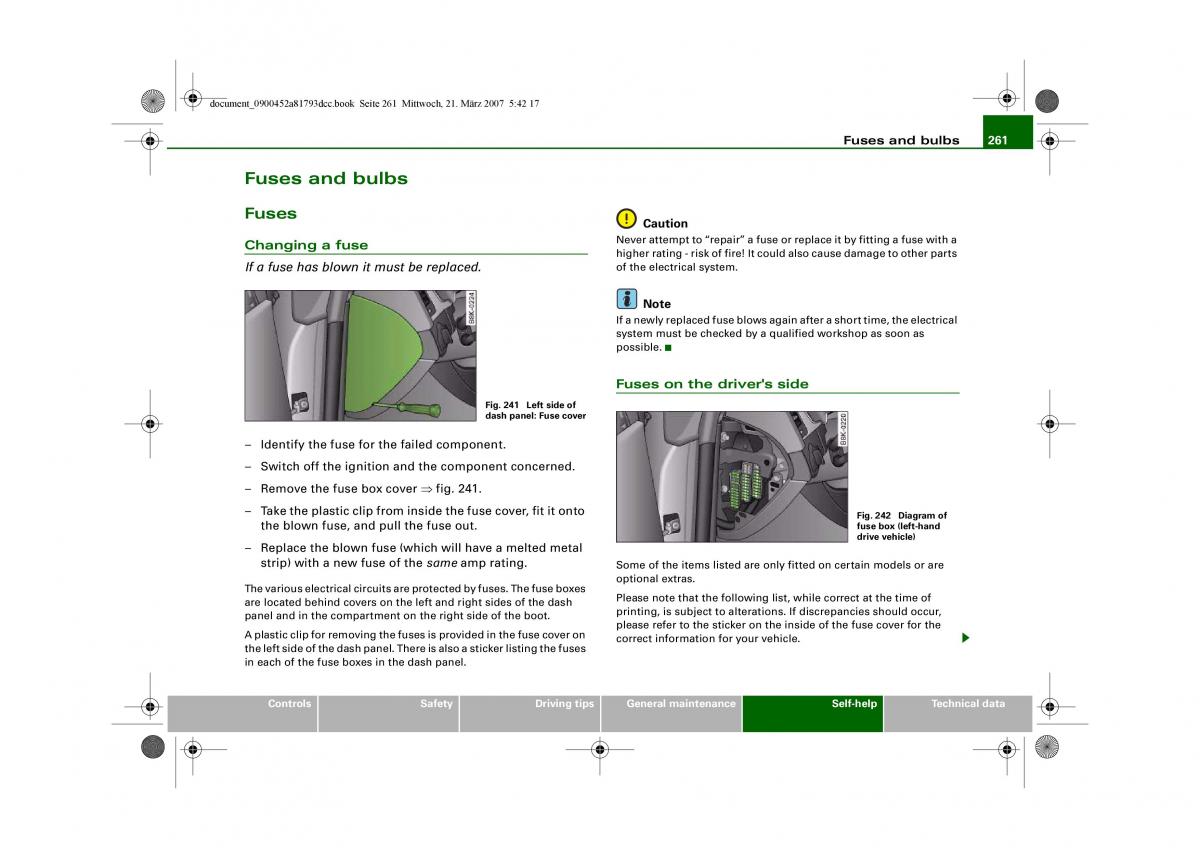

document_0900452a81793dcc.book Seite 261 Mittwoch, 21. März 2007 5:42 17 Fuses and bulbs 261 Fuses and bulbs Fuses Caution Changing a fuse Never attempt to “repair” a fuse or replace it by fitting a fuse with a higher rating - risk of fire! It could also cause damage to other parts If a fuse has blown it must be replaced. of the electrical system. Note If a newly replaced fuse blows again after a short time, the electrical system must be checked by a qualified workshop as soon as possible. Fuses on the driver's side Fig. 241 Left side of dash panel: Fuse cover – Identify the fuse for the failed component. – Switch off the ignition and the component concerned. – Remove the fuse box cover ⇒ fig. 241. – Take the plastic clip from inside the fuse cover, fit it onto Fig. 242 Diagram of the blown fuse, and pull the fuse out. fuse box (left-hand drive vehicle) – Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same amp rating. Some of the items listed are only fitted on certain models or are optional extras. The various electrical circuits are protected by fuses. The fuse boxes Please note that the following list, while correct at the time of are located behind covers on the left and right sides of the dash printing, is subject to alterations. If discrepancies should occur, panel and in the compartment on the right side of the boot.please refer to the sticker on the inside of the fuse cover for the A plastic clip for removing the fuses is provided in the fuse cover on correct information for your vehicle. the left side of the dash panel. There is also a sticker listing the fuses in each of the fuse boxes in the dash panel. Controls Safety Driving tips General maintenance Self-help Technical data
